User Manual for Mikme Blackgold Wireless Microphone and Audio Recorder Click to enlarge the picture
Contents of the user manual for the Mikme Blackgold Wireless Microphone and Audio
- Product category: Mobile Microphones Mikme
- Brand: Mikme
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mikme Mobile Microphones
 |
User manual for the Mikme Blackgold Wireless Microphone and Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mikme product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mikme user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mikme product will considerably shorten its lifespan!
|
Product description - Hands-on Review | Mikme Blackgold Wireless Microphone & Audio Recorder
- Mikme Wireless Recording Microphone
- Mikme Microphone vs The 'Big Boys' - acoustic guitar recordings
- Mikme Wireless Recording Microphone Blogger Product Introduction
- Mikme Wireless Recording Microphone Musician Product Introduction
- Mikme - Why do you need a wireless microphone for smartphone videos?
- Mikme Sessions: The Morning Yells Sad Eyed Boy

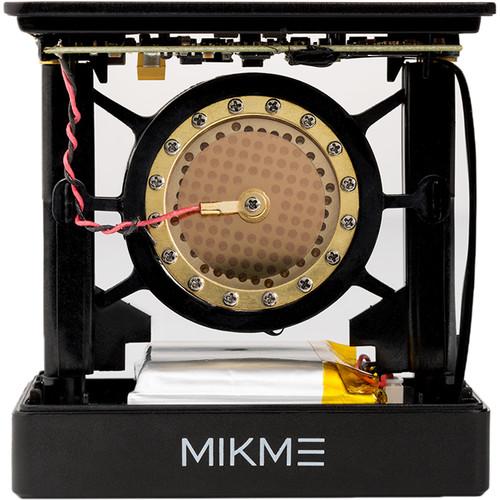

The Blackgold Wireless Microphone and Audio Recorder from Mikme is equipped with a 1" gold-plated cardioid condenser capsule and is designed to capture audio for up to 360 hours. It can be used to save the captured audio to the built-in internal 16GB flash drive and stream it wirelessly via Bluetooth to iOS smart devices, or directly to your DSLR camera or mixer.The free app allows audio sync functionality with video on your iOS device, along with providing options to mix, edit, add effects, and share your recordings. The microphone's internal audio recorder records MP4 and WAV files. It features a 2 x 168 MHz Cortex M4 processor and has a rechargeable LiPo battery that can last up to 3.5 hours in standalone recording mode. Bluetooth 2.1 allows you to stream your audio with iOS 9 or newer using the installed Mikme app.In addition, the micro-USB 2.0 connector works with Mac and Windows computers and is also available for charging the microphone. A 1/8" audio output jack for low-latency monitoring is utilized for headphone-monitoring or as a stereo audio out to a DSLR or mixer. Finally, the mic has a 3/8" thread for mounting on a mic stand and a 1/4" thread for mounting on DSLR tripods and mic stands. - Just tap Mikme, start recording on its built-in audio recorder, then send your music via Bluetooth to the Mikme mobile app for editing, tweaking, adjusting, and sharing.
- Mikme works wirelessly with your smartphone, tablet, or computer by streaming audio securely and immediately while recording. It also works standalone with its built-in digital 16GB audio recorder (up to 24-bit/96 kHz).
- Press a single button and start creating. No cables, no interface, no confusion. Use the built-in audio recorder for recording up to 360 hours of audio.
- With the Mikme mobile app, you can create, edit, mix, and share without using a single wire. It's all done using the latest Bluetooth technology.
UPC: 817430020016 In the Box Mikme Blackgold Wireless Microphone and Audio Recorder (16GB) Micro-USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mikme Blackgold Wireless Microphone and Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMikme M54-002-03-01 Specs | | | Capsule | 1 x 1" (25.4 mm), gold-plated, true condenser | | Polar Pattern | Cardioid | | Frequency Bandwidth | 18 Hz to 22 kHz | | Sensitivity | 18 mV/Pa | | Signal to Noise | 78 dBA | | Maximum Sound Pressure Level (SPL) | 125 dB | | Gain Adjustment Range | 0 to -30 dB | | | | Internal Memory | 16 GB | | Recording Capacity | MP4 only, 370 hours
WAV only, 34 hours | | Bit Depth | 24 | | Sampling Frequencies | 44.1, 48, and 96 kHz | | Processor | 2 x 168 MHz Cortex M4 | | Rechargeable Batteries | Lithium-ion polymer (LiPo) battery - 920 mAh | | Battery Operating Time | 3.5 hours in standalone recording | | | | Bluetooth | 2.1 | | Battery Operation Time | 3.5 hours while recording with Bluetooth | | Wireless Features | Bluetooth Mikme Lost & Found Protocol:
Secure audio transmission with patented packet loss and sync detection = quality of service audio streaming - works only with installed Mikme app | | Compatibility Models | Works with devices with iOS 9 (64-bit and newer), with installed Mikme app | | | | USB 2.0 | Micro-USB connector (audio class compliant) | | Bit Depth | 24 | | Sampling Frequencies | 44.1, 48, and 96 kHz | | Charging Capability | Via USB connector | | Works with | Windows XP and higher with USB 2.0
Mac OS 10.8 and higher with USB 2.0
iOS 9 and newer
Android 7.0 (Nougat) and newer | | Audio Output | 1/8" (3.5 mm) low-latency monitoring of microphone capsule audio signal
Playback audio signal from Mikme App

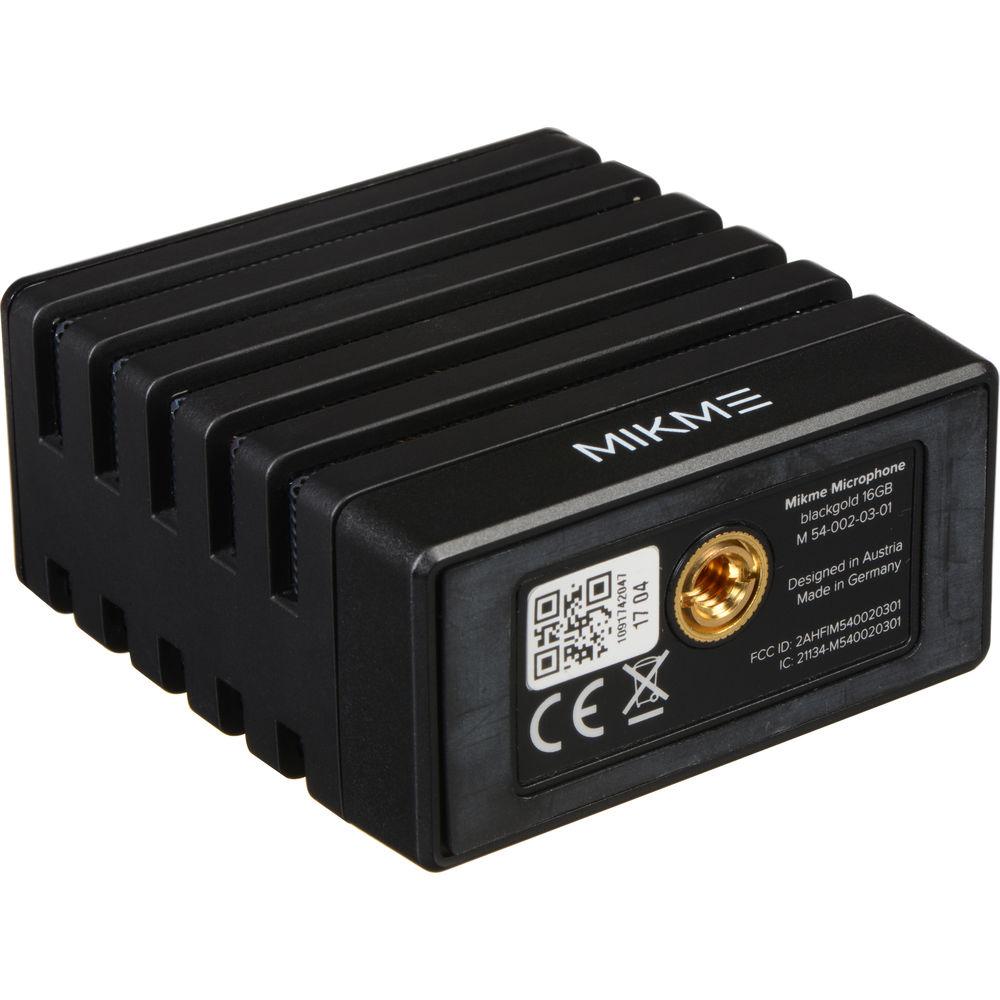

Mix balance adjustable via Mikme App | | Mounting | 3/8" thread for microphone stands
1/4" thread for DSLR tripods and mic stands | | Dimensions (L x W x H) | 2.75 x 2.75 x 1.4" (70 x 70 x 35 mm) | | Weight | 0.4 lb (200 g) | | | | Package Weight | 0.86 lb | | Box Dimensions (LxWxH) | 5.45 x 5.45 x 2.15" |
