User Manual for Miktek C1 Large-Diaphragm Cardioid FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Miktek C1 Large-Diaphragm Cardioid FET Condenser
- Product category: Large Diaphragm Condenser Miktek
- Brand: Miktek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miktek Large Diaphragm Condenser
 |
User manual for the Miktek C1 Large-Diaphragm Cardioid FET Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miktek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miktek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miktek product will considerably shorten its lifespan!
|

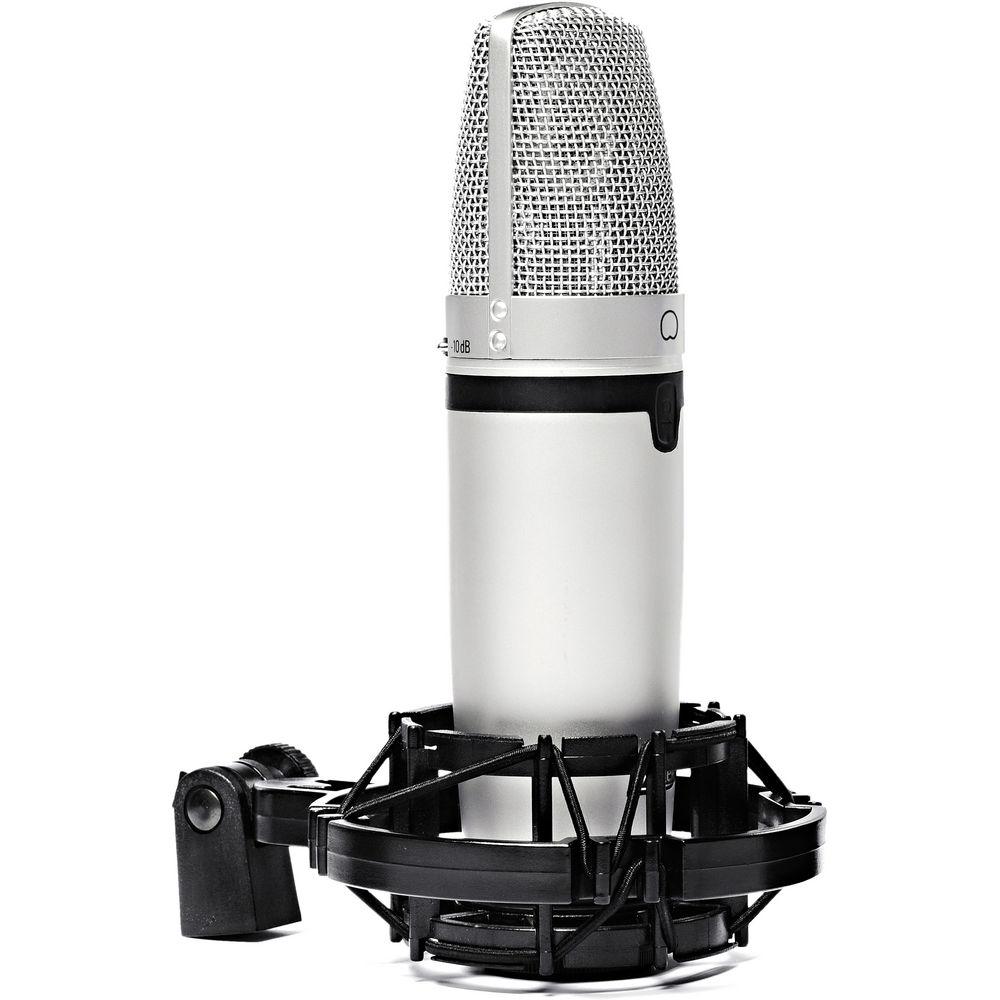

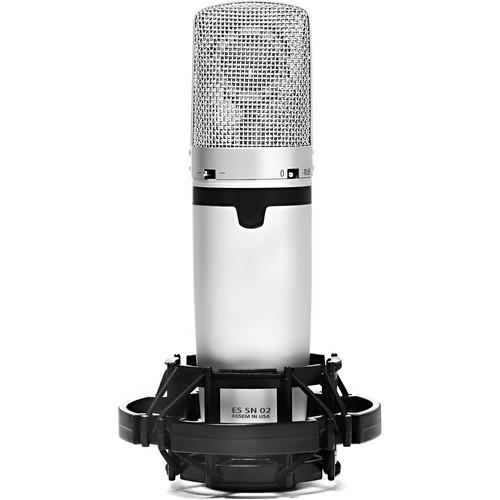

Product description The C1 Large-Diaphragm Cardioid FET Condenser Microphone from Miktek features the company's 1.0" MK1 capsule, and functions as a cardioid-only version of the company's multi-pattern C7 condenser microphone. There is a tailored frequency response designed for use on vocals, acoustic instruments, guitar amps, and drum overheads. A variable capsule bias voltage allows you to select between 48 or 60V, enabling the mic to switch between a classic FET sound at 48V or a modern sound at 60V. The C1 also has a selectable high-pass filter and a 10 dB pad. The package includes a swivel mount, a shockmount, a wooden box, and an aluminum carry case. - MK1 1.0" capsule with 5-micron Mylar and an evaporated gold diaphragm
- High-pass filter and -10 dB Pad switches
- Variable capsule bias voltage of 48 to 60V
- Miktek T7 transformer by AMI
- Includes swivel mount, shockmount, wooden box, and aluminum carrying case

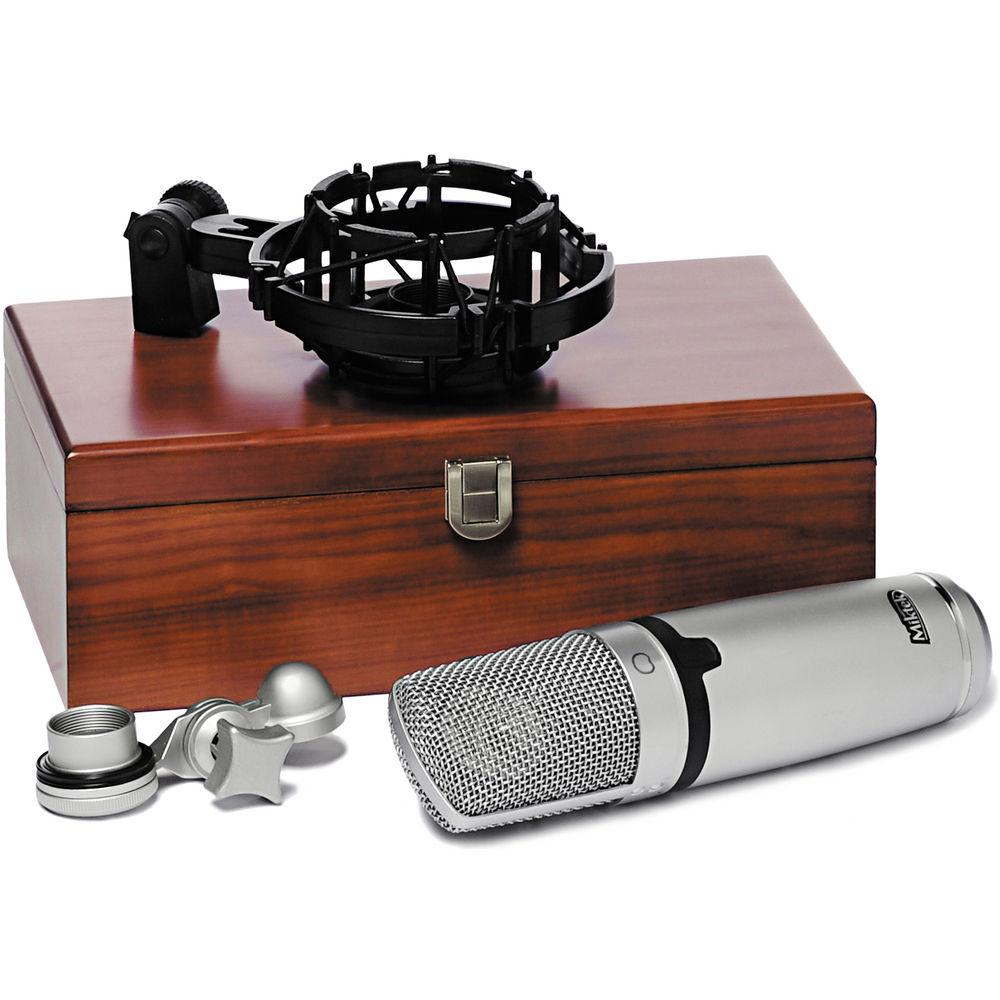

UPC: 091037553621 In the Box Miktek C1 Large-Diaphragm Cardioid FET Condenser Microphone Swivel Mount Shockmount Wooden Box Aluminum Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miktek C1 Large-Diaphragm Cardioid FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiktek C1 Specs | | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB
76 dB
72 dB | | Equivalent Noise Level | 13 dB
18 dB
22 dB | | Maximum SPL | 127 dB SPL | | Pad | -10 dB | | Sensitivity | -29 dBV/Pa | | Dynamic Range | 105 dB | | Operating Voltage | 48 V | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 10.7 x 6.6 x 6.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
