User Manual for Miktek MK300 Multi-Pattern Large-Diaphragm FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Miktek MK300 Multi-Pattern Large-Diaphragm FET Condenser
- Product category: Large Diaphragm Condenser Miktek
- Brand: Miktek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miktek Large Diaphragm Condenser
 |
User manual for the Miktek MK300 Multi-Pattern Large-Diaphragm FET Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miktek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miktek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miktek product will considerably shorten its lifespan!
|

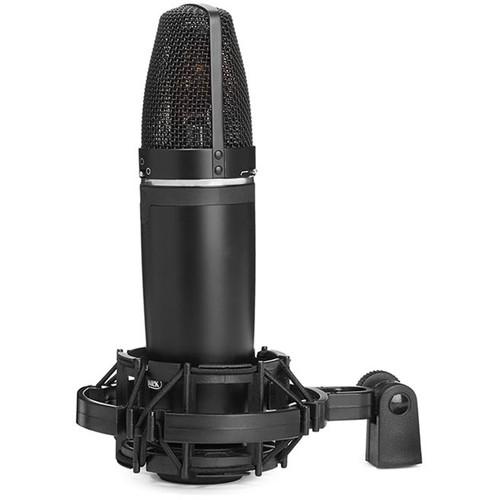

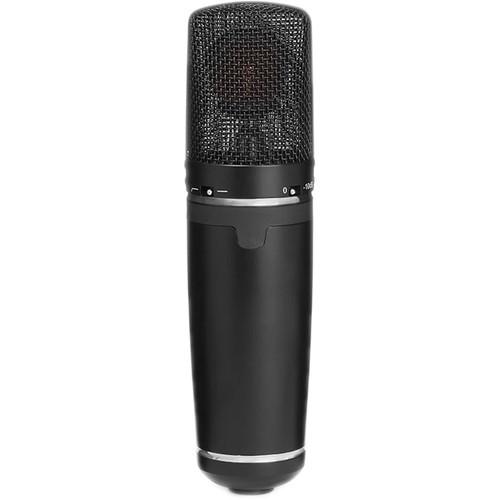

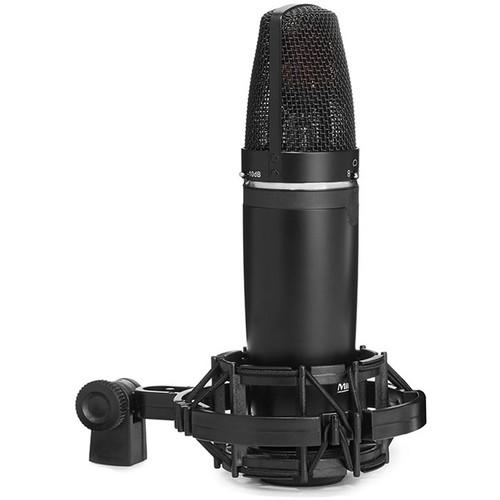

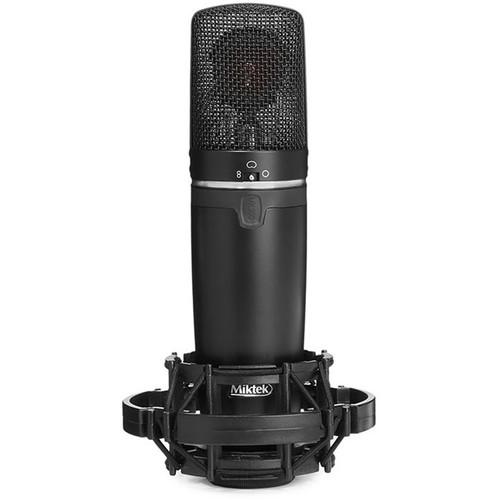

Product description The versatile MK300 from Miktek is a multi-pattern FET condenser microphone designed to capture vocals, acoustic instruments, drum overheads, and amplified instruments in professional or project studios. The MK300 combines a capsule built with dual 1" diaphragms coated with a layer of evaporated gold and a custom-designed Miktek T-301 output transformer. Together they produce a frequency response with full bottom-end, crystal-clear top-end, and open midrange which is reminiscent of sought-after vintage microphones. Other features include switchable cardioid, figure-8, and omnidirectional polar patterns, a switchable low-cut filter at 100 Hz to help reduce rumble, and a switchable 10 dB pad for distortion-free recording of very loud sound sources associated with proximity miking. The rugged die-cast metal construction and sleek, black finish protect the microphone from the rigors of professional recording. Included is a swivel mount, a shockmount, and a vinyl carry case. - FET condenser microphone with cardioid, figure-8, and omnidirectional polar patterns
- Pressure-gradient transducer with 1-inch dual-diaphragm capsule made using 5µm Mylar coated with 0.4µm layer of evaporated gold
- Selectable 100 Hz high-pass filter and -10 dB pad switches
- Custom-designed Miktek T-301 output transformer
- Rugged die-cast metal construction with sleek, black finish
- Includes shockmount, swivel mount, and vinyl carry pouch

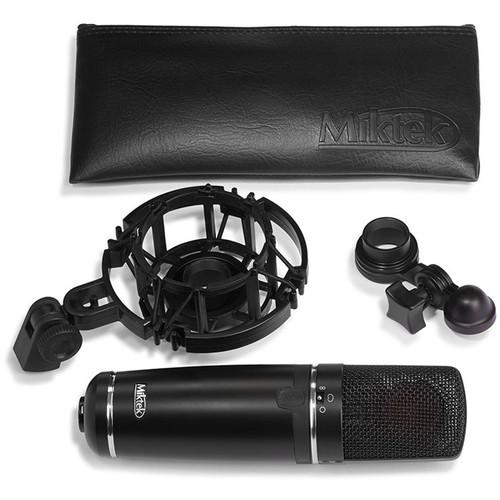

UPC: 091037927897 In the Box Miktek MK300 Multi-Pattern Large-Diaphragm FET Condenser Microphone Shockmount Swivel Mount Vinyl Carry Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miktek MK300 Multi-Pattern Large-Diaphragm FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiktek MK300 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB
76 dB
72 dB | | Equivalent Noise Level | 13 dB
18 dB
22 dB | | Maximum SPL | Cardioid: 127 dB SPL | | Pad | -10 dB | | Sensitivity | -29 dBV/Pa | | Low-Cut Filter | @ 100 Hz | | Dynamic Range | Cardioid: 105 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.0 x 6.2 x 4.9" |
