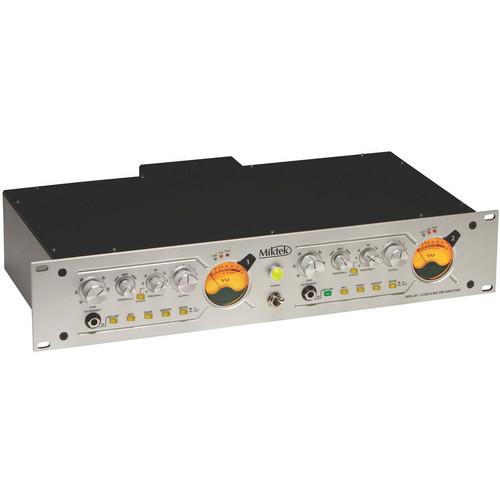

User Manual for Miktek MPA-201 - Dual Channel Class A Mic Preamplifier Click to enlarge the picture
Contents of the user manual for the Miktek MPA-201 - Dual Channel Class
- Product category: Microphone Preamps Miktek
- Brand: Miktek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miktek Microphone Preamps
|
User manual for the Miktek MPA-201 - Dual Channel Class contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miktek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miktek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miktek product will considerably shorten its lifespan!
|
Product description The MPA-201 from Miktek is a dual-channel, Class A microphone preamplifier that delivers a pristine signal path with a linear response. The preamp can deliver 70dB of gain (good for ribbon microphones) and features variable input impedance, phase switches, a pre channel high-pass filter, and individually switchable +48V phantom power. Large analog VU meter can be switched from input to output, plus an LED peak output meter make it easy to set good levels. The preamplifier features discrete transistors, and 6 custom Miktek transformers which produce sound quality reminiscent of vintage equipment. Front panel direct inputs on each channel feature a dedicated transformer and can be used to record instruments like guitar, bass and keyboards. A unique "2x" feature on the DI routes the output of the line transformer into the input of the microphone input transformer, providing 4 different impedance loaded tone contours. - Class A, discreet transistor vintage design
- Linear response 1.0dB down at 10Hz and 1.0dB down at 100kHz
- Custom designed transformers
- Variable high-pass filter
- Relay controlled phase switch
- Smooth switch selects different output loading for "racked" and "in-console" sound
- Impedance selector allows for 300, 600, or 1.2kΩ load
- 1/4" Direct Input with dedicated input transformer and "2X" routing with 4 impedance loaded tone contours
- Large backlit VU meters switchable to display input and output levels
- Heavy duty metal construction featuring steel chassis and milled aluminum front panel in a silver finish
In the Box Miktek MPA-201 - Dual Channel Class A Mic Preamplifier AC Power Cable Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miktek MPA-201 - Dual Channel Class A Mic Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiktek MPA-201 Specs | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TS phone DI (front panel) | | Output | 2 x XLR | | Phantom Power | +48V individually switchable | | Multi Function | No | | Gain Range | 70dB | | Meters | Backlit VU | | Dimensions (WxDxH) | 2U 19" rack | | Specialties | Phase reverse switches
Variable microphone impedance |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
