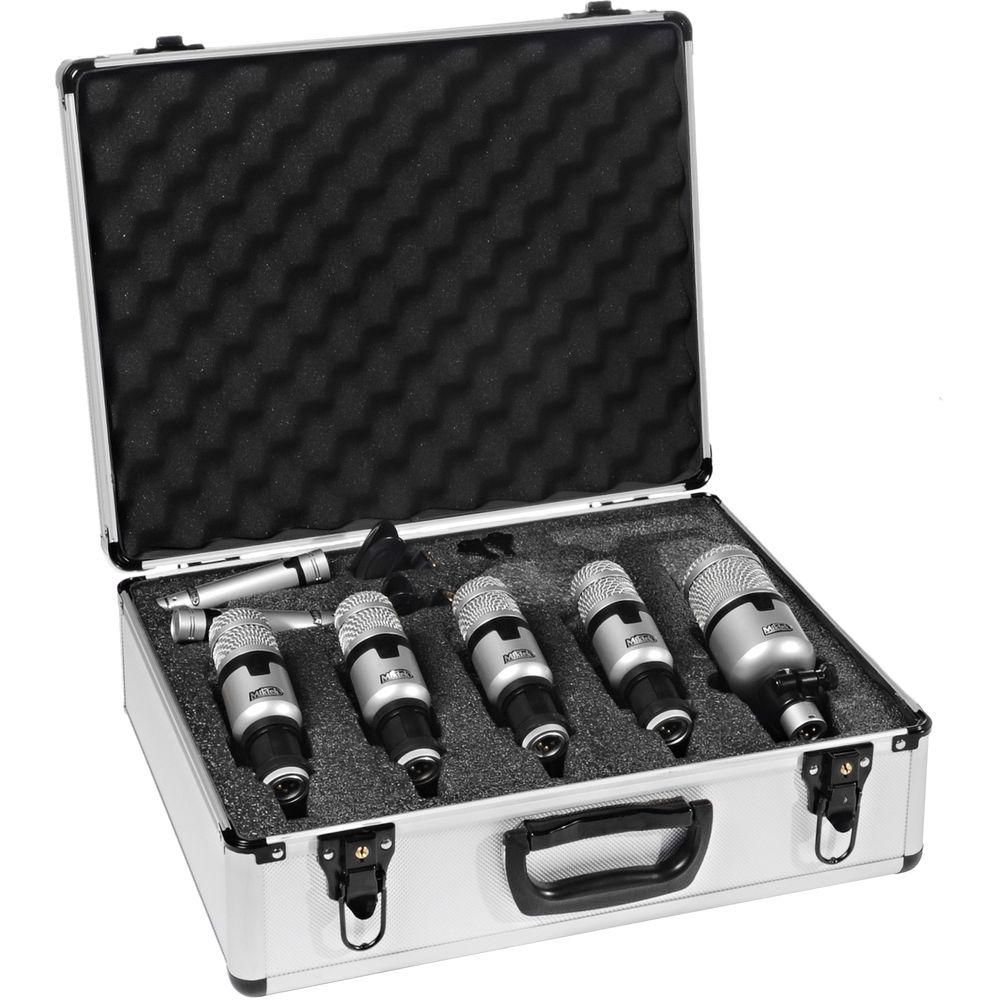

Product description The Miktek PMD7 7-Piece Drum Microphone Kit consists of four PM10 Snare/Tom Microphones, a PM11 Kick Drum Microphone, and C5MP - a matched pair of C5 Small Diaphragm Cardioid Pencil Condenser Microphones - packaged in an aluminum case.

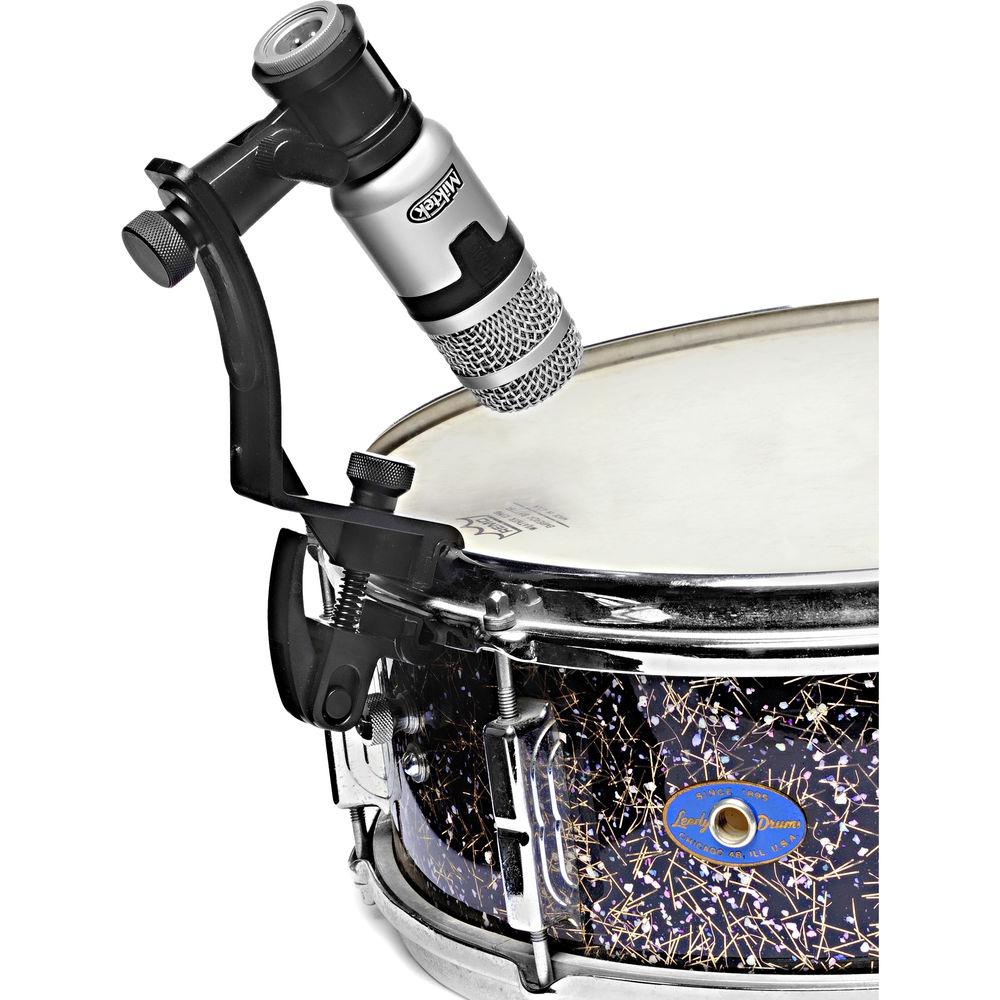

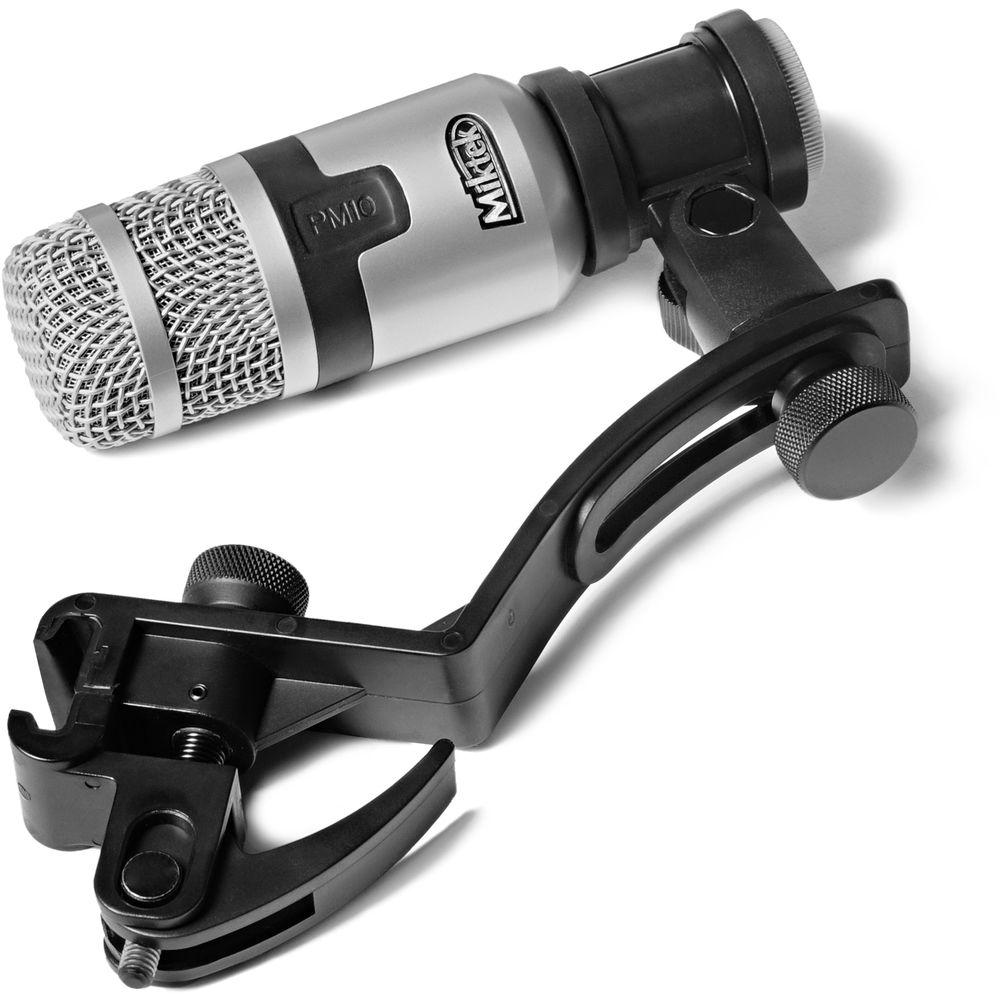

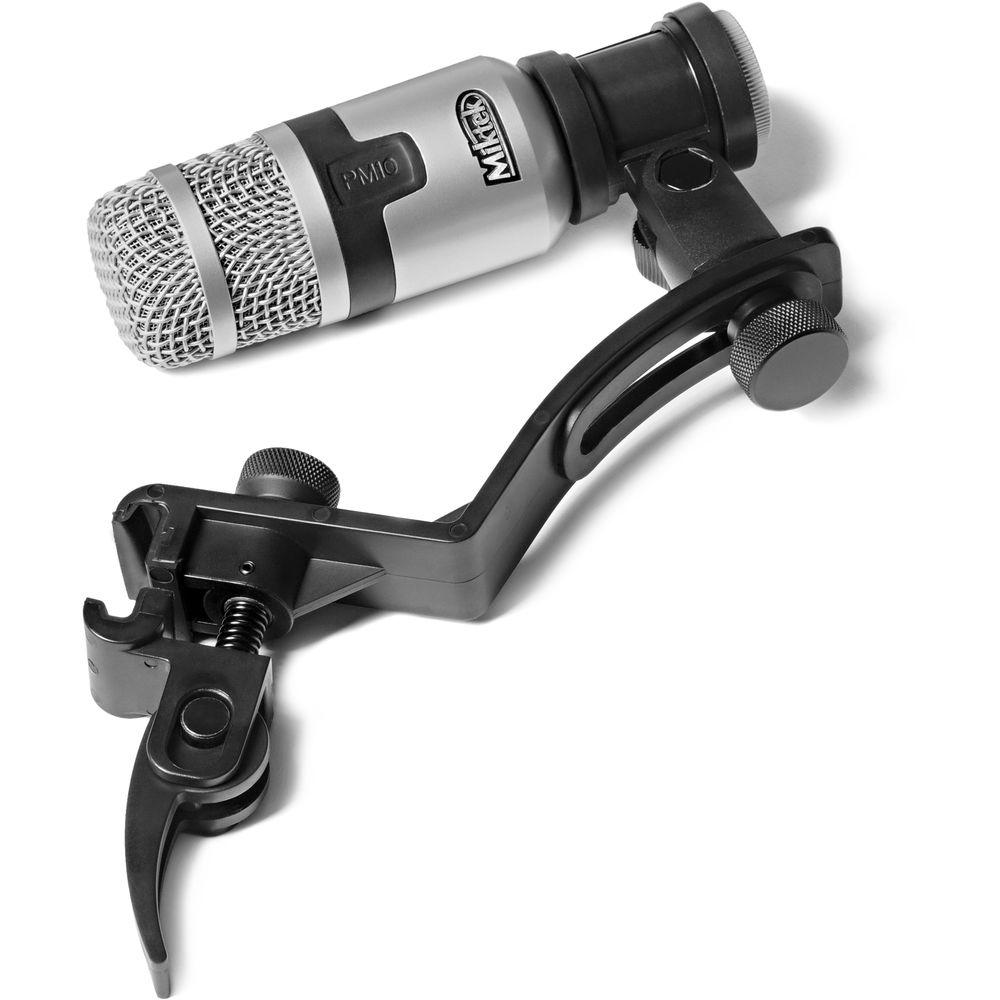

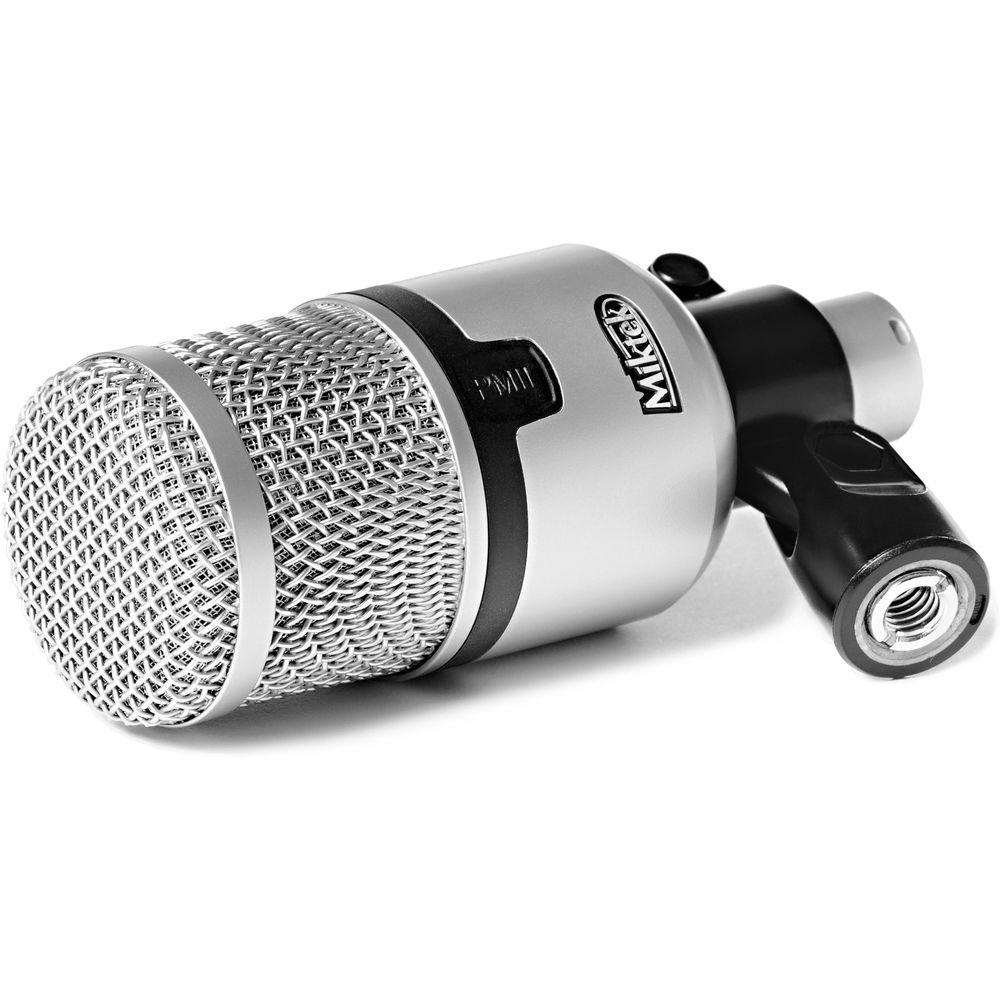

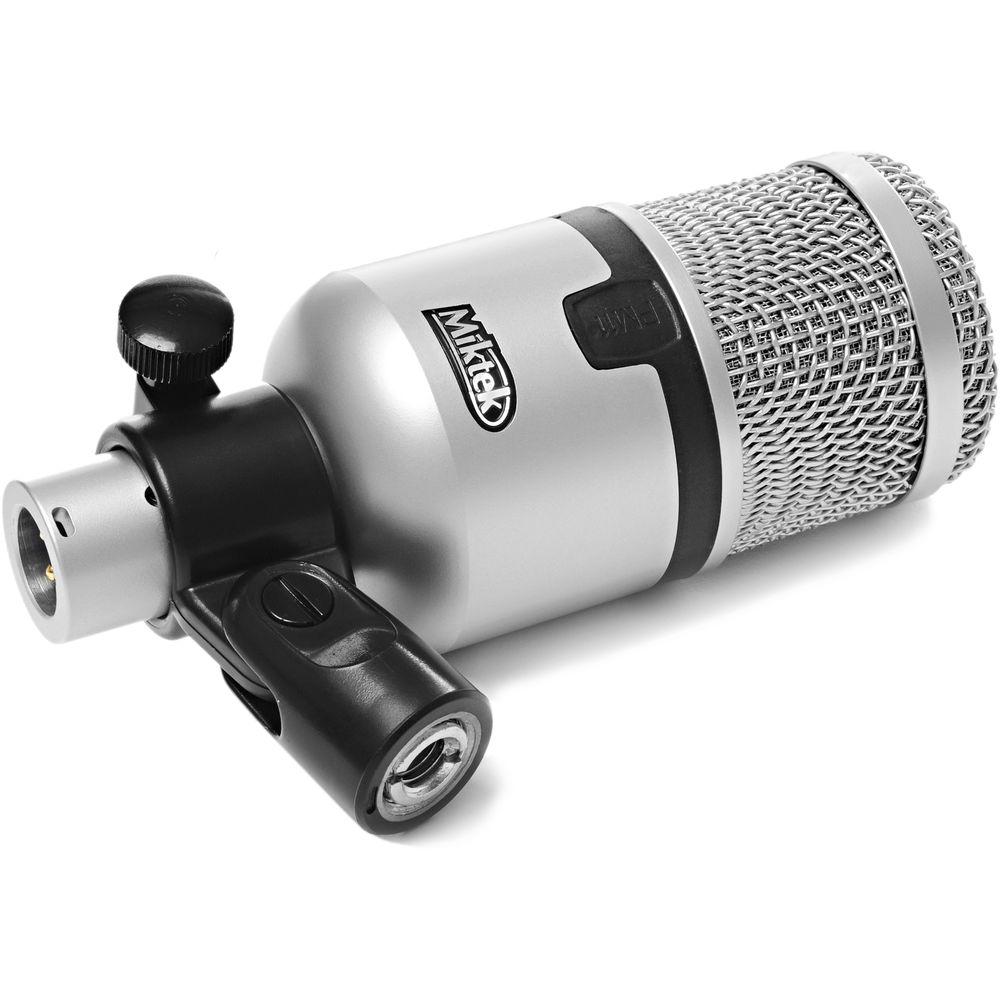

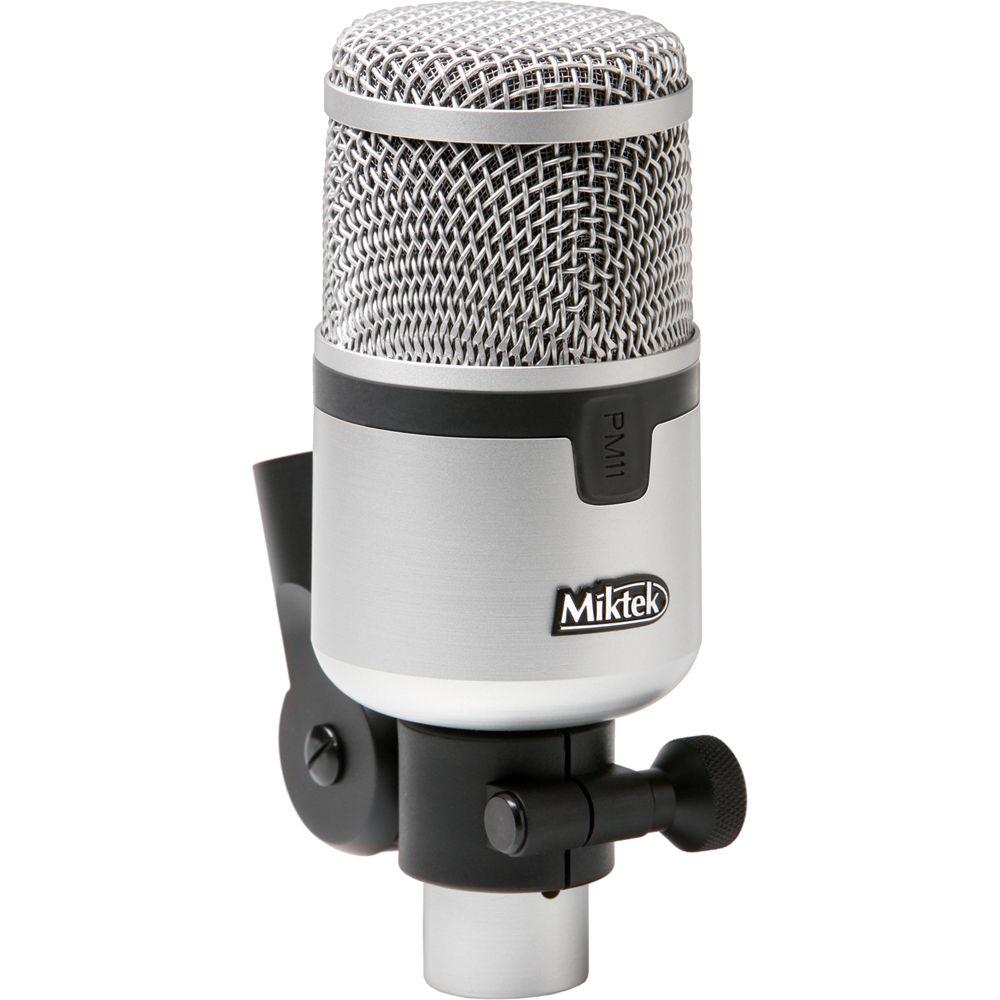

The PM10 and PM11 microphones can withstand high SPL and easily capture the loudest drummers, while the steel grills and die-cast bodies ensure durability and reliability, night after night, while touring. The capsules' labyrinth design provides essential rear rejection for maximum gain before feedback.
The C5MP Small Diaphragm Cardioid Pencil Condenser Microphones are a matched pair of C5 mics with frequency responses matching within 1 dB. The C5 provides discerning engineers with a valuable tool for critical recording of acoustic instruments. Fitted with the MK5a 0.5” cardioid capsule, the C5 microphone produces a linear, full-bodied response. The capsule employs a 5μ tensioned Mylar diaphragm, on which a 0.5μ layer of evaporated gold is applied. Tight tolerances and special attention to precise machining of the backplate and acoustical porting allows for an off-axis response that ensures the accuracy of the microphone.
The C5’s head amplifier has been designed around the AMI T5 transformer and, together with the implementation of high-quality components including hand-selected transistors, offers a sweet response reminiscent of the iconic classic mics of the past. It is well-suited for recording acoustic instruments including violins, acoustic guitars, mandolins, dobros, brass, woodwinds, and pianos. The C5 produces superior results on drums as an overhead or hi-hat mic.
The C5MP is packaged with 2 clips; matched-pair accessories include 2 windscreens and a stereo bar. C5 Pencil Condenser Microphone (Matched Pair) - MK5a 0.5" cardioid capsule with 5-micron Mylar, evaporated gold diaphragm
- Hand-selected transistors
- Individual serialized frequency response graph
- Comes with a pair of mic clips, windscreens, and a stereo bar

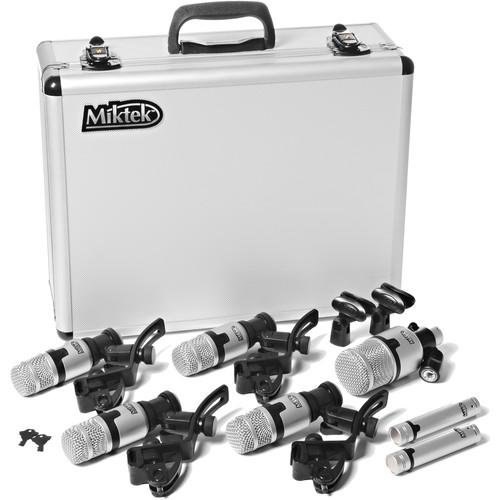

In the Box Miktek PMD7 7-Piece Drum Microphone Kit 4 x PM10 - Snare/Tom Microphone zbxvddxbvvsfcurdvuuu PM11 - Kick Drum Microphone C5MP Small Diaphragm Cardioid Pencil Condenser Microphones (C5 Matched Pair) 2 x Microphone Clip 2 x Windscreen Stereo Bar Aluminum Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miktek PMD7 7-Piece Drum Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiktek PMD7 Specs | | | Type | Small diaphragm condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 to 20,000 Hz | | Sensitivity | - 32.4 dBV/Pa | | Equivalent Noise Level | 17 dB | | Dynamic Range | 109 dB | | S/N Ratio | 77 dB | | Maximum SPL | 126 dB | | Power Supply | 48 V phantom | | Power Consumption | 0.5 mA |
