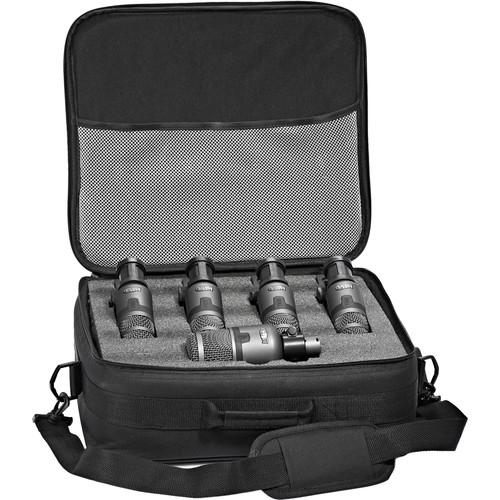

User Manual for Miktek TDK5 5-Piece Drum Mic Pack Click to enlarge the picture
Contents of the user manual for the Miktek TDK5 5-Piece Drum Mic Pack
- Product category: Instrument Microphones Miktek
- Brand: Miktek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miktek Instrument Microphones
|
User manual for the Miktek TDK5 5-Piece Drum Mic Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miktek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miktek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miktek product will considerably shorten its lifespan!
|
Product description The Miktek TDK5 is a set of five dynamic microphones designed for capturing drums on stage, in the studio, or at rehearsals. It includes four Miktek T100 instrument microphones, one Miktek T200 kick mic, mic clips, and a padded carry case. Each microphone utilizes a supercardioid polar pattern for enhanced directional focus and rejection of off-axis sounds, resulting in reduced bleed and feedback.The four T100s are intended for use with one snare and three toms, and are also well-suited for guitars and horns. They are supplied with standard mic clips and lever rim-mount clips, which are ideal for mounting the mics on drums when space is tight and clearance is low.The T200 is ideal for kick drum or other low-frequency instruments such as bass guitar and low-tuned percussion. The included mic clip makes mounting and placement easy. - T100 Dynamic Instrument Microphone (Dark Gray) The dark gray Miktek T100 is a dynamic microphone designed for capturing instruments such as drums, guitars, and horns on stage, in the studio, or at rehearsals. Its supercardioid polar pattern provides enhanced directional focus and rejection of off-axis sounds, combating bleed and feedback. Its capsule features a Neodymium magnet and is matched to a custom Miktek transformer. With a frequency response of 50 Hz to 16 kHz, it is well-suited to instruments rich in mid-range frequencies. Mount the T100 to a mic stand or attach it directly to a drum rim via the included lever rim-mount clip. A protective case is provided for safe and simple storage and transport.
- Dynamic microphone designed for use on stage and in the studio
- Lightweight Neodymium magnet
- Supercardioid polar pattern and labyrinth capsule design provide enhanced directional focus and rejection of off-axis sounds
- Custom Miktek transformer contributes to sonic imprint
- High SPL handling to accommodate loud drummers and blaring guitar amps
- Includes lever rim-mount clip and protective case
- T200 Dynamic Kick Drum Microphone (Dark Gray) The dark gray Miktek T200 is a dynamic microphone designed for capturing instruments such as kick, low-tuned toms, and bass on stage, in the studio, or at rehearsals. Its supercardioid polar pattern provides enhanced directional focus and rejection of off-axis sounds, combating bleed and feedback. Its capsule features a Neodymium magnet and is matched to a custom Miktek transformer. With a frequency response of 50 Hz to 10 kHz, it is well-suited to instruments rich in low frequencies. Mount the T200 to a standard mic stand via the included mic clip. A protective case is provided for safe and simple storage and transport.
- Dynamic microphone designed for use on stage and in the studio
- Lightweight Neodymium magnet
- Supercardioid polar pattern and labyrinth capsule design provide enhanced directional focus and rejection of off-axis sounds
- Custom Miktek transformer contributes to sonic imprint
- High SPL handling to accommodate loud drummers and blaring bass amps
- Includes mic clip and protective case
UPC: 602573249833 In the Box Bundle Items 4 x T100 Dynamic Instrument Microphone (Dark Gray) uwevtustrabradzsey T200 Dynamic Kick Drum Microphone (Dark Gray)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Miktek TDK5 5-Piece Drum Mic Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - T100 Dynamic Instrument Microphone (Dark Gray)
| Transducer | Dynamic moving-coil
Neodymium magnet | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 16 kHz | | Impedance | 300 Ohms | | Connector | XLR 3-pin male | | Power Requirements | None | | Maximum SPL | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Sensitivity | Not specified by manufacturer | | Construction Material | Die-cast metal body
Steel grille | | Finish | Dark gray | | Dimensions (L x W x D) | 5.9 x 2.3 x 2.3" / 14.9 x 5.8 x 5.8 cm | | Weight | 0.7 lb / 0.3 kg | - T200 Dynamic Kick Drum Microphone (Dark Gray)
| Transducer | Dynamic moving-coil
Neodymium magnet | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 10 kHz | | Impedance | 150 Ohms | | Connector | XLR 3-pin male | | Power Requirements | None | | Maximum SPL | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Sensitivity | Not specified by manufacturer | | Construction Material | Die-cast metal body
Steel grille | | Finish | Dark gray | | Dimensions (L x W x D) | 5.9 x 2.3 x 2.3" / 14.9 x 5.8 x 5.8 cm | | Weight | 0.7 lb / 0.3 kg | | | | Box Dimensions (LxWxH) | 9.9 x 4.9 x 2.9" |
