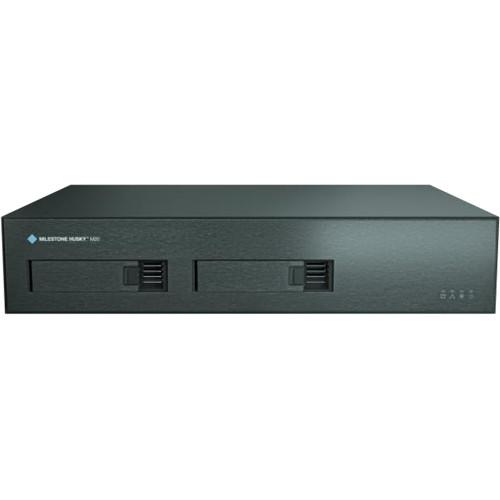

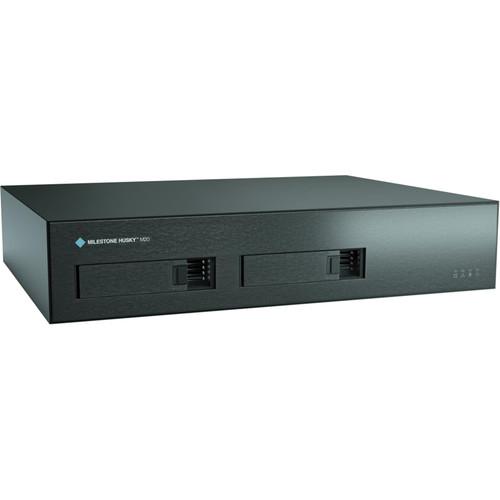

User Manual for Milestone Husky M20 16-Port 32-Channel NVR with 12TB HDD and PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the Milestone Husky M20 16-Port 32-Channel NVR
- Product category: Network Video Recorders (NVRs) Milestone
- Brand: Milestone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Milestone Network Video Recorders (NVRs)
 |
User manual for the Milestone Husky M20 16-Port 32-Channel NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Milestone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Milestone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Milestone product will considerably shorten its lifespan!
|
Product description Record from and manage up to 32 devices or cameras with the Husky M20 16-Port 32-Channel NVR with 12TB HDD and PoE Managed Switch from Milestone. This standalone and rack-mountable NVR has a built-in managed PoE+ switch to provide compatible devices with a power and data connection for quick installation. The NVR features Smart Start plug-and-play functionality to connect to cameras and manage storage space automatically. With 200 Mbps recording rates, this NVR is capable of recording high-quality video from up to 5MP cameras, ensuring smooth playback thanks to H.264, MJPEG, MPEG-4, and MxPEG compression codecs.
Audio and alarm inputs and outputs are provided for additional connectivity and functionality. The NVR comes with 12TB (2 x 6TB HDDs) of storage preinstalled, making setup quick and simple. Additionally, XProtect Professional is preloaded onto the NVR and includes 16 licenses built in, eliminating the need to purchase licenses separately. Connect to the NVR remotely using a computer with the XProtect Client, on a security system with the XProtect Smart Client, or on an iOS or Android device using the Milestone Mobile app. - 16-port NVR with 12TB HDD
- 16-port PoE+ managed switch
- Smart Start plug-and-play to automatically connect to cameras and configure storage
- 200 Mbps recording bandwidth
- 4 alarm inputs and 4 outputs
- Intel Skylake i3-6100 processor
- Preloaded with NVR-optimized version of XProtect Professional
- XProtect Web Client, XProtect Smart Client, and Milestone Mobile app for remote viewing
- Supports third-party integrations and Milestone add-on products
UPC: 841371102050 In the Box Milestone Husky M20 16-Port 32-Channel NVR with 12TB HDD and PoE Managed Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Milestone Husky M20 16-Port 32-Channel NVR with 12TB HDD and PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMilestone Husky M20 Specs | | | Video Storage | 2 x 6 TB (12 TB) SATA
2 customer-serviceable HDD bays | | Drive Type | Western Digital Purple | | Storage | VMS/OS: 128 GB mSATA SSD | | | | Management | VMS Preloaded: Optimized XProtect Professional
Milestone Care Basic: Included
Milestone Care Plus: Optional
Smart Start: Yes
Setup Wizards: Yes
Supports ONVIF Cameras: Yes
Codec Support: H.264, MJPEG, MPEG4, MxPEG
Multiple Video Export Formats: Yes
PTZ Support: Yes
Audio Support: Two-Way
Third-Party Application Support: Yes
Milestone Interconnect Support: Yes
Customer Dashboard Support: With Milestone Care Plus | | | | Power Input | Non-PoE: 100-240 VAC, 250 W
PoE: 100-240 VAC, 500 W | | Maximum Power Consumption | Non-PoE: 250 W

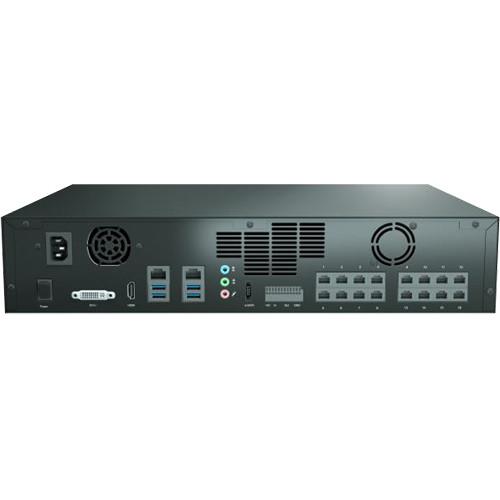

PoE: 500 W | | | | Input/Output | 1 x Power input
1 x DVI
1 x HDMI
2 x GbE RJ45 (supports PXE boot from LAN, wake on LAN function)
4 x USB 3.0
1 x Line-out, mic-in, line-in
1 x eSATA (ASM1153E)
4 x Alarm inputs/outputs (TTL 0/5 V)
Network Switch: IEEE 802.3at
16 x RJ45 ports with status LEDs
Left-yellow LED to link status on
Right-green LED to display PoE | | | | Form Factor | Standalone or 2U-88mm rackmount with included rack rails | | Deployment | Single or multi-unit setup | | Maximum Number of Cameras | 32 | | Recording Rate | Maximum: 200 Mbps | | Local Display | Maximum: 2 | | Licenses Included | 16 | | Add-Ons | Camera Licenses: 4 pack | | Maximum Number of Users | Unlimited | | Interface | Dual network interface cards | | CPU | Intel Skylake i3-6100 | | Passmark | 5475 | | Operating System Support | Windows 10 IoT Enterprise | | Memory | 8 GB | | PoE Switch | Optional, IEEE 802.3at PoE+ (250W total power), port lock, power management, 10/100/1000Base-T/Tx | | Regulatory Compliance | CE (class A), WEEE, FCC (class A), RCM, UL, VCCI (class A), Mexico (CoC) | | Dimensions (W x D x H) | 16.9 x 13 x 3.5" (43 x 33 x 8.8 cm) | | | | Package Weight | 30.95 lb | | Box Dimensions (LxWxH) | 23.6 x 18.6 x 9.2" |
