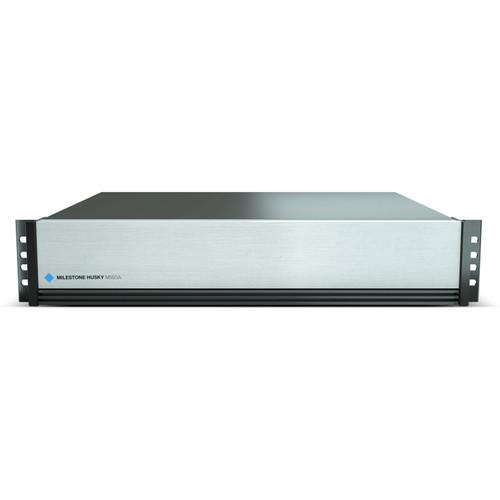

User Manual for Milestone Husky M500A XProtect Expert NVR Click to enlarge the picture
Contents of the user manual for the Milestone Husky M500A XProtect Expert NVR
- Product category: Network Video Recorders (NVRs) Milestone
- Brand: Milestone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Milestone Network Video Recorders (NVRs)
|
User manual for the Milestone Husky M500A XProtect Expert NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Milestone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Milestone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Milestone product will considerably shorten its lifespan!
|
Product description The Husky M500A XProtect Expert NVR (8TB) from Milestone features a 2U rack form factor and offers a maximum recording rate of 600 Mb/s. It comes pre-installed with Milestone XProtect Expert VMS software that allows you to operate the NVR as a dedicated primary or failover recording server, management server, or ONVIF gateway. The NVR is capable of recording from up to 512 cameras.
The NVR can also be used as an edge recording system in remote locations connected to a centralized surveillance site using Milestone Federated Architecture or Milestone Interconnect. It also comes with Windows 10 pre-installed. System Designed for Ease of Use - Calculate system requirements using the Husky Calculator
- Pre-installed with Windows 10 Operating System and Milestone XProtect Expert VMS software
- Pre-licensed with XProtect Expert 2016 base software
- Quick setup with the Husky Assistant
Network and Expansion - Smart Client multicast support
Storage System - RAID 5/6/10/50 controller
- Hot plug and play Western Digital Purple drives optimized for surveillance NVRs
In the Box Milestone Husky M500A XProtect Expert NVR (8TB) Rack Mounting Kit DVI to VGA Converter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Milestone Husky M500A XProtect Expert NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMilestone M500A Specs | Computer System | CPU: Intel i7 3610 QE
Base Frequency: 2.3 GHz
Passmark: 7463
Intel Smart Cache: 6 MB
Instruction Set: 64-bit
Number of Cores: 4
Number of Threads: 8
Intel Quick Sync Video
Intel Turbo Boost Technology
Intel Hyper-Threading
RAM: 16 GB
Operating System: Windows 10
OS Storage: 128GB mSata SSD | | Network | Number of Ethernet Ports: 2
Port Type: GbE, RJ45
| | Video Management Software | NVR Class: Up to 512 cameras
Video Management System Pre-Installed: Milestone XProtect Expert
Management Server Database: Microsoft SQL Server 2014 Express Edition
Base License Included: XProtect Expert 2016, pre-licensed
Failover Server: Hot or cold standby
Codec Support: H.264, MJPEG, MPEG4, MxPEG
Audio Support: Two-way
Software Trade-in: 100% with Care Plus
Software Upgrades: With Care Plus
VMS Install Wizard: Husky Assistant | | Storage System | Maximum Recording Rate: 600 Mb/s
RAID Controller: MegaRAID SAS/SATA 9260-8i
Number of Ports: 8
Data Transfer Rates: 6 Gb/s per port
RAID Levels: 5/6
RAID Spans: 10/50
Sector Size: 64 kB
Number of Drives: 8
Drive Type: Western Digital Purple drives
Drive Size: 1 TB/ 2 TB / 3 TB / 6 TB
Storage Capacity: 8 TB
Drive Interface: SATA 6 Gb/s
Volume Block Size: 64 kB
Drive RPM Speed: 5400 RPM
Drive Data Transfer Rate (Host to/from drive sustained) / Per Drive: 110 to 175 MB/s
Drive Cache: 64 MB | | Electrical | Power Input: 100 to 240 V, 50/60 Hz, 200 W
Maximum Power Consumption: 90 to 120 W | | I/O | 2 x GbE RJ45
4 x USB 3.0
1 x DVI
1 x HDMI
1 x Line-out / Mic-in / Line-in
3 x COM ports | | Environmental | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Humidity: 10~90 % relative humidity (non-condensing) | | Form Factor | Rack-Mounted, 2U | | Regulatory Compliance | CE (class A), WEEE, FCC (class A), RCM, UL, VCCI, Mexico (CoC), South Africa (CoC) | | Dimensions (W x D x H) | 17 x 16.4 x 3.5" (43 x 40 x 8.8 cm) | | Weight | Not specified by the manufacturer |
