User Manual for Milestone Husky X8 Barebone NVR with RAID Click to enlarge the picture
Contents of the user manual for the Milestone Husky X8 Barebone NVR with
- Product category: Network Video Recorders (NVRs) Milestone
- Brand: Milestone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Milestone Network Video Recorders (NVRs)
|
User manual for the Milestone Husky X8 Barebone NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Milestone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Milestone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Milestone product will considerably shorten its lifespan!
|

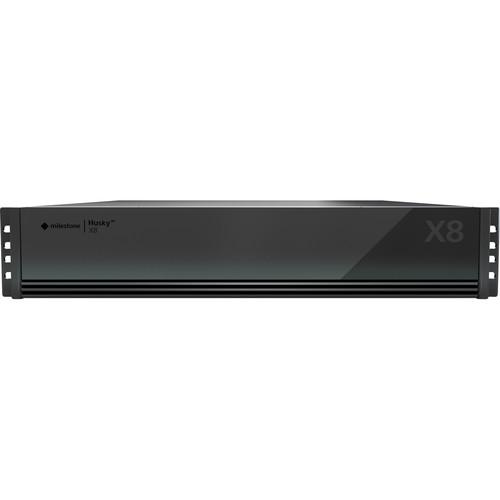

Product description The Husky X8 Barebone NVR with RAID from Milestone is a 2 RU NVR that supports up 780 cameras at a 1828 Mb/s maximum bit rate. RAID 5/10 is supported. XProtect VMS is preinstalled to help users get started with the unit.
This NVR is equipped with 1 x DVI, 2 x HDMI, 2 x GbE RJ45, and 6 x USB 3.0 ports. - Provides continuous operation through redundancy on component, storage, and application level
- Preloaded with XProtect Advanced VMS, enabling the recorder to be used with XProtect VMS variants like Professional+, Expert, and Corporate (licenses available separately)
- Recorder can be used with XProtect Essential+, enabling you to connect up to eight cameras for free
- Intel Xeon E3-1515M V5 2.8 GHz CPU
- Intel Iris GPU provides video decoding capacity for server-side motion detection, enabling the Husky X8 to support up to 300 cameras with server-side VMD
- Supports archiving to external NAS/SAN
- Support for RAID 5/10 and MegaRAID SAS/SATA 9361-8i
- Eight disk bays that support 4/8/10TB Western Digital Purple drives
- TPM 2.0 credential and key encryption
- Compatible with Windows 10 IoT Enterprise Semi-Annual Channel
In the Box Milestone Husky X8 Barebone NVR with RAID Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Milestone Husky X8 Barebone NVR with RAID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMilestone Husky X8 Specs | | | CPU | Intel Xeon E3-1515M V5 2.8 GHz | | Passmark | 10509 | | GPU | Intel Iris Pro Graphics P580
GPU Video Decoding: Smart Client and Server Side VMD | | RAM | 16 GB DDR4 | | Cryptographic Processes | Trusted Platform Module (TPM 2.0) | | Operating System | Windows 10 IoT Enterprise Semi-Annual Channel | | | | Recording Rate | Maximum 1828 Mb/s | | Internal Storage | Internal Video Storage (Raw): 32/64/80 TB | | Hot-Swap Drives | 8 Bays, SATA 6 Gb/s
(All Disk Bays Shall Be Used) | | Supported RAID Controller | RAID 5/10
MegaRAID SAS/SATA 9361-8i | | External Storage | Archiving to External NAS/SAN | | VMS/OS | 2 x 256 GB SSD M.2, RAID 1 | | Software Recovery Image | Yes | | | | Network Interface | 2 x GbE RJ45 | | Remote Management | Intel Active Management Technology (AMT) | | Display Connections | 1 x DVI
2 x HDMI
Supports 2 Simultaneous Displays | | Maximum Resolution | HDMI: 4K
DVI: 1920 x 1200 | | USB | 2 x USB 3.0 (Front)
4 x USB 3.0 (Rear) | | | | Power Input | 100 to 240 V, 50/60 Hz | | Maximum Power Consumption | 150 W | | Redundant Power Supply | Hot Swap | | Protection | OVP (Over Voltage), OCP (Over Current), OTP (Over Temp), SCP (Short Circuit) | | | | Maximum Number of Cameras | 780 Cameras (Continuous Recording)
300 Cameras with VMS (Server Side) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Humidity | 10 to 90% Relative Humidity (Non-Condensing) | | Regulatory Compliance | CE (Class A), WEEE, FCC (Class A), RCM, UL, Mexico (CoC) | | Form Factor | 2 RU | | Dimensions (W x D x H) | 17 x 18.4 x 3.5" / 43 x 46.6 x 8.8 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
