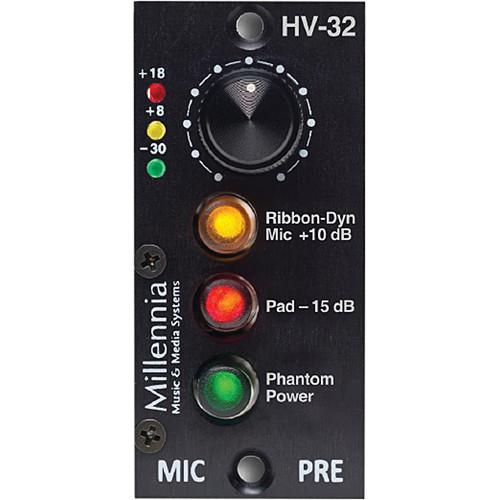

Product description The Millennia HV-32 is a single-channel 200 series microphone preamp module that is to designed to work in an API L200 rack, Vision or Legacy console. The preamp features continuously variable gain control, -15 dB pad, phantom power, plus a "Ribbon Mic Mode," which DC couples the mic to the gain stage and also provides an additional 10 dB of gain. The HV-32 is ideal for a wide range of professional studio applications such as recording vocals, guitars, drums overheads, and more. - Fits in API 200 frame and API Legacy and Vision consoles
- Continuously variable gain control
- DC coupled ribbon mic with 10 dB gain boost setting
- Signal LEDs indicate status level at -30 dBu (green), +8 dBu (yellow) and +18 dBu (red)
In the Box Millennia HV-32 Single-Channel 200 Series Microphone Preamplifier Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia HV-32 Single-Channel 200 Series Microphone Preamplifier Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia HV-32 Specs | Channels | 1 | | Gain | Minimum: 8.5 dB
Maximum (Continuously Variable): 60 dB (70 dB in Ribbon Mode) | | Frequency Response | At +0 / -3 dB: <3 hz to>300 kHz | | Noise | At 60 dB Gain, 10 Hz to 30 kHz, Inputs Common: -130 dB EIN | | Total Harmonic Distortion/Noise | At 35 dB Gain, 10 Hz to 20 kHz Bandwidth, +27 dBu Out: <0.001%, Typical <0.0005% (<5 ppm) | | Intermodulation Distortion | At (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out: <0.0009% | | Phase Response | At 35 dB Gain, 50 Hz to 20 kHz Bandwidth, +27 dBu Out: <2° deviation | | Common Mode Rejection Ratio | At 35 dB Gain, 10 Hz to 20 kHz Bandwidth, 100 mV C.M.: >65 dB; Typical >85 dB | | Slew Rate | At 35 dB Gain, +27 dBu Out: >25 V/µs | | Maximum Input Level | At 20 Hz to 40 kHz: +20 dBu (no attenuator pads required) | | Maximum Output Level | At 20 Hz to 40 kHz: +28 dBu | | Input Impedance | Phantom: At 1 kHz: 6,750 Ohms | | Output Impedance | 24.3 Ohms (x2) | | Phantom Power | +48 VDC, +/-2 VDC | | Dimensions (W x H x D) | 1.13 x 2.63 x 5.88" (28.58 x 66.68 x 149.22 mm) |
