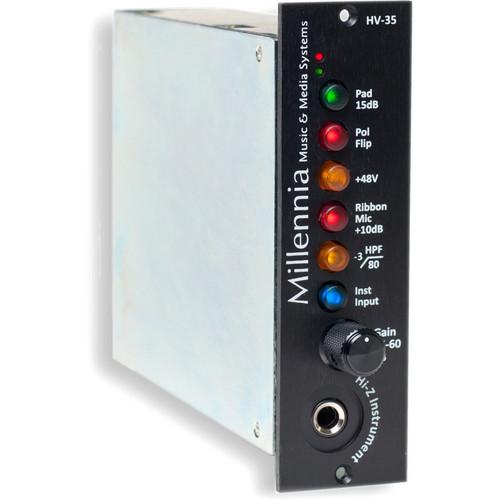

User Manual for Millennia HV-35 - Microphone and Instrument Preamplifier Click to enlarge the picture
Contents of the user manual for the Millennia HV-35 - Microphone and Instrument
- Product category: Microphone Preamps Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Microphone Preamps
|
User manual for the Millennia HV-35 - Microphone and Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The HV-35 from Millennia is a single channel microphone preamp based on the philosophy that "coloring "at source is not for everyone, and that maintaining the clarity and integrity of the signal through the recording and production process, is critical to communicating the artist's intention and individuality.
The preamp is housed in the API 500 series format and brings Millennia quality to an ever increasing popular format. A "Ribbon Mic" switch couples the input signal to the gain stage and also provides an additional 10dB of gain (phantom power is switched off in this mode).
An instrument Input is provided on the front panel for connecting Hi-Z sources such as bass guitars. Signal present LEDs, a 15dB pad, 80Hz high-pass filter and polarity flip round out an attractive and convenient offering from the company. - API 500 series format microphone/instrument preamp
- Continuously variable gain control
- Front panel instrument input
- DC coupled ribbon microphone switch with 10dB gain boost
In the Box Millennia HV-35 - Microphone and Instrument Preamplifier (API 500 Series) One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia HV-35 - Microphone and Instrument Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia HV-35 Specs | Number of Channels | Single | | Gain Range | 8.5dB to 60dB, continuously variable (70dB in Ribbon Mode) | | Inputs | 1 x 1/4" TS phone (on unit) | | Maximum Input Level | +20dBu, 20Hz to 40kHz (no attenuator pads required) | | Output | Via rack | | Output Impedance | 24.3Ω (x2) | | Maximum Output Level | +28dBu, 20Hz to 40kHz | | Phantom Power | +48VDC, +/-2VDC (6.75kΩ phantom input impedance @ 1kHz) | | Multi Function | No | | Slew Rate | >25V per microsecond (35dB gain, +27dBu out) | | Frequency Response | <3hz to>300kHz, +0.0/-3.0dB | | Noise | EIN: -133 (60dB gain, 10Hz to 30kHz, inputs common) | | THD + N | <0.001%, typical <0.0005%, < 5ppm (35dB gain, 10Hz to 20kHz bandwidth, +27dBu out) | | IMD | <0.0009 (35dB gain, 50Hz and 7kHz, +27dBu out) | | CMRR | >65dB, typical >85dB (35dB gain, 10Hz to 20kHz bandwidth, 100mV C.M.) | | Phase Response | <2° deviation (35dB gain, 50Hz to 20kHz bandwidth, +27dBu out) | | Power Requirement | From rack | | Dimensions (WxDxH) | 1.5 x 6 x 5.25" (38 x 152 x 133mm) | | Weight | 3 lb (1.4kg) shipping | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 3.8" |
