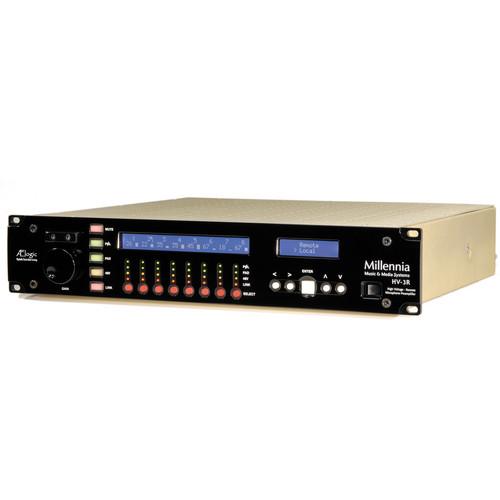

User Manual for Millennia HV-3R - Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Millennia HV-3R - Microphone Preamp
- Product category: Microphone Preamps Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Microphone Preamps
|
User manual for the Millennia HV-3R - Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The HV-3R from Millenia is an 8-channel microphone preamp that can be remotely controlled, and is intended for critical professional applications where sonically neutral microphone pre-amplification is required. The unit can also be used as a stand-alone, locally controlled preamp similar to the company's HV-3D, with which it shares its sonic characteristics. Using the supplied AElogic Windows based software, the unit can be remotely set-up and controlled, while also being part of a larger configuration. Simultaneous control of up to 792 channels (99 units) is available via Ethernet, and TCP/IP addressing allows control via the Internet. The MIDI control interface is compatible with Digidesign's Pro Tools "PRE" remote preamplifier protocol, allowing up to 9 units to be simultaneously controlled using MIDI in Pro Tools. Up to 16 units can be controlled per MIDI port with a standalone MIDI device, or other MIDI compatible software. While working on the design of the microphone preamp, the engineers at Millenia came to the conclusion that there's no such thing as a straight wire with gain. But the HV-3R's transformerless input, balanced audio path, and minimal amplifier design is as close as one can get to the goal of absolute accuracy and uncompromised sonic realism. - 8-channel microphone preamp that records vividly realistic musical performances with very little effort
- Designed to function locally via the front panel controls, remotely via LAN from the logic PC control software, or remotely via MIDI
- Up to 99 units can be simultaneously controlled via LAN, for a total of 792 channels
- Included Windows software provides high-definition meters, unlimited groups, scene management, voltage/temperature monitoring, and more
- Plug and play Pro Tools interface
- Up to 9 units can be simultaneously controlled with MIDI in Pro Tools, or 16 with other MIDI devices
- Transformerless design with matched hi-speed discrete transistor octet has 23dB input headroom - no attenuator "pads" needed
- Uncolored timbral accuracy at all dynamic levels
- Entirely balanced audio path with precision components maintains signal integrity
- Laser-trimmed FET-based output stage has 32dB headroom and can drive 1,000 foot (300m) cable runs with ease
- Gain controls (1dB per step) on all channels matched to 0.08dB
- Ultra-clean toroidal power supply
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- Aluminum 16-gauge steel rack chassis
In the Box Millennia HV-3R - Microphone Preamp (Remote Controllable) AC Power Cable Control Software One (1) Year Warranty to Orginal Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia HV-3R - Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia HV-3R Specs | Number of Channels | 8 | | Inputs | 8 x XLR | | Output | 8 x XLR | | Other Connectors | 3 x 5-pin DIN MIDI In/Out/Thru
1 x RJ-45 LAN Connection
1 x 25-pin D-Sub (future function)
1 x 9-pin Serial (future function) | | Phantom Power | +48V, individually switchable | | Multi Function | No | | Gain Range | 65dB | | Maximum Output Level | +32dBu | | Frequency Response | 3Hz to 300kHz, +0/-3.0dB | | Noise | EIN: -133dB | | Power Requirements | 100~120, 200~240 VAC, 50/60Hz (selectable) | | Dimensions (WxDxH) | 19 x 16 x 3.5" (483 x 406 x 89mm) | | Weight | 19 lbs (8.6kg) | | Specialties | Gain controls (1.0dB per step) on all channels are-matched to 0.08dB | | | | Package Weight | 18.95 lb | | Box Dimensions (LxWxH) | 21.2 x 21.0 x 7.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
