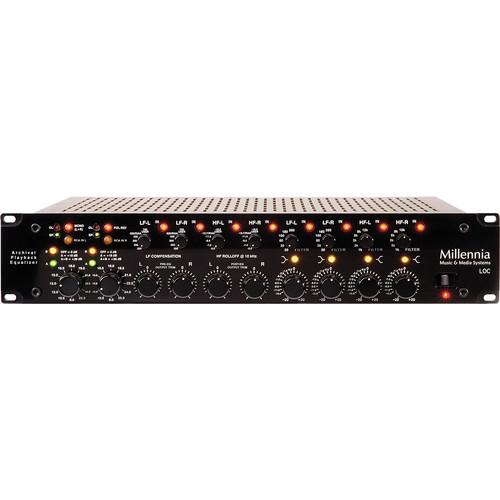

User Manual for Millennia LOC Analog Legacy Archival Phono Preamplifier with RIAA EQ Click to enlarge the picture
Contents of the user manual for the Millennia LOC Analog Legacy Archival Phono
- Product category: Phono Preamplifiers Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Phono Preamplifiers
|
User manual for the Millennia LOC Analog Legacy Archival Phono contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The LOC from Millennia is an analog legacy phonograph-playback system that is custom tailored specifically for the needs of archiving and mastering professionals. Originally specified under contract for the U.S. government's Library of Congress, the LOC is handcrafted of Millennia's essential, 100% DC-coupled preamplifier and equalizer circuity for audiophiles requiring a sonically uncompromised phono signal path.Employing a 100% discrete design topology from input to output, the LOC utilizes both discrete-bipolar and field-effective transistors to achieve Millennia's hallmark sonic invisibility. The unit accepts both line-level and phono-level inputs via gold XLR connectors, as well as unbalanced RCA connectors. The ten discrete outputs are provided on both gold XLR and RCA phono connectors.There are 49 combinations of preset compensation curves for precise performance with all formats, including 33-1/3, 45, and a vast array of 78 RPM EQ formats. Additionally, there are 36 discrete gain steps of 1.5 dB per step to 60 dB, user-selectable capacitive and resistive loading, mono and polarity select switching for vertically grooved pressings, and stereo gain matching to 0.08 dB. There are a pair of Lundahl MC transformers included, but may be switched out of the signal path for true transformer-less operation.Rounding out the feature set is a collection of four surgical filters, designed to isolate and correct problem areas associated with groove degradation and surface noise. The filters offer shelving and peak response with a number of user-selectable frequencies. The chassis is constructed from 16-gauge cold-rolled steel with a 3/8" / 9.53mm thick radiused-aluminum face panel. The LOC offers a universal power supply and ships with a standard IEC power cord. - Professional Phonographic Preamplifier with RIAA + Archival Compensation & Corrective EQ
-
- True differentially balanced phonographic preamplifier topology
- User-definable (universal) compensation and loading parameters
- Sets new precedent in phonographic sonic invisibility
- Ultra-premium transformer-less components used throughout
- Gold relays, connectors & switches. Hand-machined aluminum cosmetics
- Extremely low noise (-125 dBu flat). Pure Class-A discrete J-FET filters
- Effortless, lifelike musical performance at all dynamic levels
- Lundahl MC transformer option included for free, and can be bypassed
- Solid build design
In the Box Millennia LOC Analog Legacy Archival Phono Preamplifier with RIAA + EQ Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia LOC Analog Legacy Archival Phono Preamplifier with RIAA EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia LOCI Specs | | | Inputs | Balanced Phono Input: 4 x XLR
Unbalanced Phono Input: 2 x RCA | | Outputs | Balanced Phono Pre Direct Output: 2 x XLR
Balanced Phono Pre Trim Output: 2 x XLR
Unbalanced EQ Out (Pre-Trim): 2 x XLR, 2 x RCA
Balanced EQ Out (Post-Trim): 2 x XLR | | | | THD + N | ITHD + Noise (20 Hz to 30 kHz): <.01% typical, RIAA in, filters out | | Frequency Response | Frequency Response (-3 dB): 3 Hz to 200 kHz, typical, flat
Frequency Response (±0.5 dB): 10 Hz to 100 kHz typical, flat | | Maximum Input Level | +23 dBu | | Maximum Output Level | +26 dBu | | Maximum Gain | 60 dB nominal, higher on request (Preamp + EQ) | | Input Impedance | User selectable (resistor/capacitor) | | Output Impedance | 49.9 )hms, unbalanced | | Noise | Better than -125 dB EIN, flat
Better than -98 dB EIN, RIAA in | | XLR Configuration | Three-Pin XLR Polarity: Pin 2 = positive polarity, Pin 1 = ground | | | | Equalizer | Maximum Filter Boost & Cut: ±10 dB (21-step detent)
Notch Filter "Q" (Quality Factor): Q = 1.0
Low-Frequency Comp Points: 200, 250, 300, 400, 500/RIAA, 700/USER
High-Frequency Comp Points (@ 10 kHz): -5.0, -7.0, -9.5, -11.5, -13.7/RIAA, -16.0/USER
Low-Filter Fixed Frequencies: 20, 35, 60, 100, 180, 260 Hz
High-Filter Fixed Frequencies: 1.0, 2.0, 3.0, 5.0, 8.0, 12.0 kHz
Peak/Shelf Selection on All Filters: Yes
Bypass Selection on All Bands: Yes | | | | Power Consumption | Power Consumption: 50 W, nominal | | Power Requirements | Power Requirements: 100 to 240 VAC, 50/60 Hz, selectable | | Fuse Rating | 2 x 1A with 100 to 120 VAC mains (5x20 mm, slow-blow, 250 V)
2 x 500 mA with 200 to 240 VAC mains (5x20 mm, slow-blow, 250 V) | | Dimensions (W x D x H) | 19.0 x 15.0 x 3.5" / 48.3 x 38.1 x 8.9 cm | | Weight | 26.0 lb / 11.8 kg | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 21.3 x 21.0 x 7.5" |
