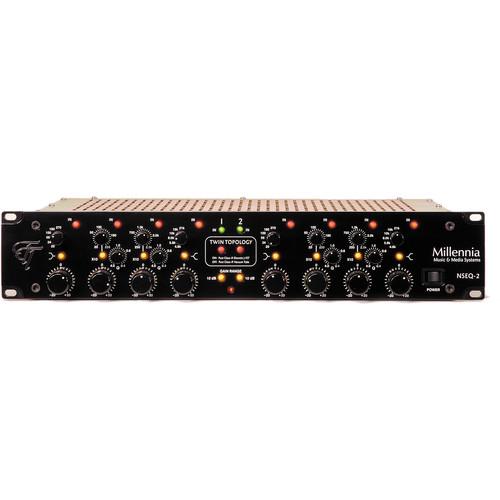

User Manual for Millennia NSEQ-2 - Twin Topology Parametric EQ Click to enlarge the picture
Contents of the user manual for the Millennia NSEQ-2 - Twin Topology Parametric
- Product category: Equalizers Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Equalizers
|
User manual for the Millennia NSEQ-2 - Twin Topology Parametric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The NSEQ-2 from Millenia is a dual-channel parametric EQ that delivers true Twin Topology functioning. The overall sonically neutral, analog EQ is a finely tuned instrument intended for critical professional applications. With a flick of a switch, the input signal can be sent through either an all triode vacuum tube path, or an all discrete J-FET solid state signal path. The choice of signal path extends the usefulness of the unit by allowing subtle textural differences to be imparted to the source via the two electronic paths. With the emergence of 24-bit+ digital audio, recording engineers are faced with a new requirement for undistorted dynamic range. The NSEQ-2 meets this challenge exceptionally well. - Fully parametric stereo EQ with unprecedented sonic purity and integrity
- Constructed for demanding professional applications
- 4 bands of EQ, 2 fully parametric, 2 switchable between peak and shelf
- Twin Topology design allows for either an all triode 300V vacuum tube signal path, or an all discrete J-FET solid state signal path
- Both topologies are entirely transformerless, high voltage, pure Class A
- Minimalist design with only one active stage in the audio path
- Ultra-Premium components throughout
- Gold relays, connectors, switches and tube sockets
- Silver Teflon power wiring
- Mogami Neglex OFC audio wiring
Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia NSEQ-2 - Twin Topology Parametric EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia NSEQ-2 Specs | Filter Type | Parametric | | Number of Channels | 2 | | Inputs | 2 x XLR | | Outputs | 2 x XLR | | Maximum Input Level | (VT) +28dBu, EQ flat
(SS) +24dBu, EQ flat | | Frequency Bands | Low-Range Switch: 20, 34, 56, 100, 180 and 270Hz (center peak/shelf selectable)
Low-Mid Sweep: 20 Hz to 220Hz or 200Hz to 2.2 kHz (10x range switch selectable)
High- Mid Sweep: 250 Hz to 2.5kHz or 2.5kHz to 25kHz (10x range switch selectable)
High-Range Switch: 4.8, 5.8, 8.0, 10, 16 and 21kHz (center peak/shelf selectable) | | Bandwidth | Mid Ranges: Q = 0.4 to 4.0 (sweepable)
Low/High Ranges: Q = 1.0 (fixed) | | Range (Boost/Cut) | +/-20dB or +/-10dB, selectable | | Maximum Output Level | (VT) +28dBu, EQ flat
(SS) +24dBu, EQ flat | | Frequency Response | (VT) Sub 2Hz to beyond 200kHz, -3.0dB
(SS) Sub 1Hz to beyond 300kHz, -3.0dB | | Dynamic Range | Not specified by manufacturer | | THD + N | <0.009%, typical 0.002 % (all EQ bands switched in), 20Hz to 30kHz | | Dimensions (WxDxH) | 19 x 12.5 x 3.5" (483 x 318 x 89mm) | | Weight | 24 lbs (10.9kg) | | Specialties | Both topologies are entirely transformerless, high voltage, pure Class A |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
