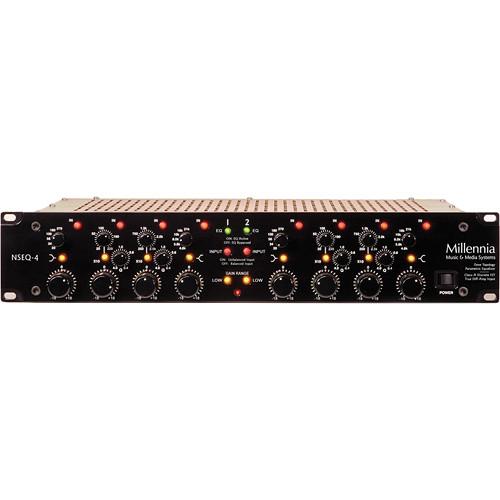

User Manual for Millennia NSEQ-4 2-Channel Class A Discrete Solid State Parametric Equalizer Click to enlarge the picture
Contents of the user manual for the Millennia NSEQ-4 2-Channel Class A Discrete
- Product category: Equalizers Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Equalizers
|
User manual for the Millennia NSEQ-4 2-Channel Class A Discrete contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The Millennia NSEQ-4 2-Channel Class A Discrete Solid State Parametric Equalizer features full timbral control and total signal integrity. This equalizer puts a single active gain stage in the entire audio signal path. Its active stage has been optimized as an input buffer, EQ amplifier, and output driver.
The NSEQ-4 Equalizer features a solid state design, which is entirely transformerless. It has a distinctly audible sonic personality, and occasionally will complement a particular track. It preserves sonic purity while correcting frequency imbalance, and its balanced circuit design ensures sonic transparency. With no audio transformers, the NSEQ-4 Equalizer realizes the musicality of pure Class A gain and optical compression without imposing coloration, character, or vibe.
With its discrete solid state circuitry, the NSEQ-4 is designed for precise sonic adjustments along with limitless shades of clean. Four bands of mastering-grade fully parametric equalization make it easy to add the correct amount of air or punch, or clean up any mud in a track or mix.
Data compression algorithms (MPG, AC3, DTS, etc.) are unable to distinguish signal from noise, so preserving absolute signal integrity through the recording and production process is critical to communicating the artist’s intention and individuality. The recording and mastering process entails amplifying the original source by as much as 1000:1. Coloration or distortion become part of the signal: once lost, sonic information can never be recovered. The NSEQ-4 Equalizer's circuit designs amplify and adjust the original input signal with an absolute minimum of alteration, applying tonal colors so natural and free of artifacts that they seem to become part of the source itself. - All-discrete, true differential Class A input buffer/amplifier
- Selectable balanced or unbalanced input
- 3rd generation FSA-03 all-discrete EQ amplifier
- Improved output stage, no muting required
- True hard-wire bypass when EQ not selected
- Power supply contributes to improved sonic performance
- Fully parametric stereo EQ with superior sonic purity & integrity
- All discrete J-FET solid state signal path
- Minimalist Design: Only one active stage in the audio path
- Four EQ bands: 20 Hz to 20 kHz center frequency, 0.4 to 4.0 Q
- Constructed for demanding professional applications
- Premium components throughout
- Gold relays, connectors, switches
- Silver Teflon power wiring & Mogami Neglex OFC audio wiring
- Peak/shelf selection on high and low bands
- Hard-wire bypass switching on individual EQ bands
In the Box Millennia NSEQ-4 2-Channel Class A Discrete Solid State Parametric Equalizer Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia NSEQ-4 2-Channel Class A Discrete Solid State Parametric Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia NSEQ-4 Specs | Range | Q = 0.4 to 4.0, adjustable on middle ranges
Q = 1.0 fixed on low & high ranges | | Maximum Output Level | >28 dBu | | Maximum Input Level | EQ Flat: 28 dBu
EQ Full Boost: 17 dBu | | Frequency Response | Sub 2 Hz to beyond 300 kHz at 0/-3 dB
Stereo Deviation: <0.15 dB | | Noise | -106 dBu (all EQ Stages in, controls flat) | | Boost and Cut | Maximum Boost (21 Step Detented): 20 dB (10 dB with range switch in)
Maximum Cut (21 Step Detented): -20 dB (-10 dB with range switch in) | | Equalizer | Low Range Switch (Centers to Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270
Low Mid Sweep: 20 to 220 Hz or 200 Hz to 2.2 kHz, 10X range switch selectable
High Mid Sweep: 250 Hz to 2.5 kHz or 2.5 to 25 kHz, 10X range switch selectable | | Switch | High Range (Centers to Peak/Shelf Selectable): 4.8, 5.8, 8.0, 10, 16, 21 k | | THD + Noise | <0.009%; Typical <0.003% at 20 Hz to 30 kHz (all EQ bands switched in) | | Common Mode Rejection Ratio | >60 dB; Typical >80 dB at 10 Hz to 20 kHz, 100 mV CM | | Slew Rate | >50 V/µsec at 27 dBu Out | | Input Impedance | 25 kΩ | | Output Impedance | 5 Ω
Load: Minimum 50 Ω | | Recommended Load | >500 Ω | | Amplifier | EQ: Pure Class A Discrete J-FETs | | Power Consumption | Maximum 40 W | | Power Requirements | Selectable: 100 to 120, 200 to 240 VAC, 50/60 Hz | | Dimensions (W x H x D) | 19.0 x 3.5 x 12.5" (482.6 x 88.9 x 317.5 mm) | | | | Package Weight | 26.35 lb | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 8.0" |
