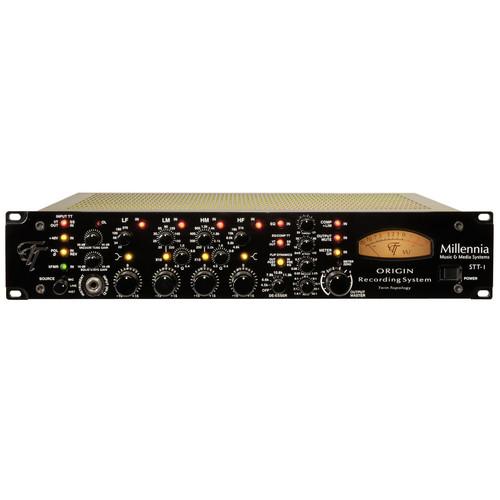

User Manual for Millennia SST-1 Origin - Twin Topology Channel Strip Click to enlarge the picture
Contents of the user manual for the Millennia SST-1 Origin - Twin Topology
- Product category: Channel Strips Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Channel Strips
|
User manual for the Millennia SST-1 Origin - Twin Topology contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The STT-1 Origin from Millenia is a collection of the company's essential product line combined into a single box. The STT-1 is a single channel processing chain with various signal path topologies (vacuum tubes, discrete transistors, audio transformer, transformerless) all selectable at the various functions. The channel strip contains a dual topology microphone preamp, the EQ section of the NSEQ-2, and an opto compressor with 3 paths. A vacuum tube DI input can be routed through a tube or solid state gain path. The unit offers an entirely discrete, Class-A direct signal path from input to output. The signal path can be variously selected to use vacuum tubes or transistors, transformer or non-transformer coupling. There are at least 134 different product combinations available in the STT-1 Origin - ranging from the most musically transparent, sonically accurate, and dynamically stable audio circuits, to sublime levels of vacuum tube and transformer "euphony", and everything in between. The possibilities afforded the creative engineers, producers and musicians are virtually endless. - Choice of 2 microphone preamps paths (front panel selectable) - either the M-2b vacuum tube or the HV-3 discrete solid state circuitry
- Twin NSEQ-2 mastering-grade parametric EQs - vacuum tube or discrete solid state
- 3 opto compressor/limiter paths - TCL vacuum tube, discrete solid state, or passive
- 2 opto de-esser paths - vacuum tube or discrete solid state
- Vacuum tube or discrete solid state line level paths
- Input coupling with or without MIT-01 audio transformer
- 1/4" vacuum tube DI input with routing via tube or solid state gain path
- True audio VU meter for output level or dynamics gain reduction
- Delivers effortless, lifelike musical performance at all levels
- Hand machined aluminum knobs, illuminated IT&T push buttons
- Gold audio connectors, tube sockets and relays
- Ultra-clean toroidal power supply in internal sub-chassis
- Mogami Neglex OFC audio wiring
- Silver Teflon power wiring
- 3/8" radius extruded aluminum face plate
- Durable mirror-gloss anodized finish
- Mil spec 16-gauge cold-rolled steel chassis
In the Box Millennia SST-1 Origin - Twin Topology Channel Strip AC Power Cable One (1) Year Warranty to Orginal Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia SST-1 Origin - Twin Topology Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia STT-1 Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x XLR Line
1 x 1/4" TRS phone Line
1 x 1/4" TS phone DI | | Outputs | 1 x XLR Direct Out
2 x XLR Main Out (balanced and unbalanced)
1 x 1/4" TS phone Main Out
1 x RCA phono Dynamics Link | | Frequency Response | Sub 5Hz to beyond 300kHz, +0/-3.0dB | | Noise | EIN: -131dBu (solid state path, common source, direct out) | | | | Gain Range | 60dB | | Maximum Output | +32dBu | | Input Impedance | Microphone: 6.2kΩ
Line: 2.2kΩ
Instrument: 1MΩ | | Phantom Power | +48V | | | | Threshold Range | 40dBu, | | Ratio | 1.4:1 to 30:1 | | Attack Time | 2 mS to 100 mS, continuously adjustable | | Release Time | 20 mS to 3.0 S, continuously adjustable | | Slope | Not specified by manufacturer | | Sidechain | Dynamics pre/post EQ selection | | | | Filter Type | Parametric | | Frequency Bands | Low-Range Switch: 20, 34, 56, 100, 180 and 270Hz (center peak/shelf selectable)
Low-Mid Sweep: 20 Hz to 220Hz or 200Hz to 2.2 kHz (10x range switch selectable)
High- Mid Sweep: 250 Hz to 2.5kHz or 2.5kHz to 25kHz (10x range switch selectable)
High-Range Switch: 4.8, 5.8, 8.0, 10, 16 and 21kHz (center peak/shelf selectable) | | Bandwidth | Mid Ranges: Q = 0.4 to 4.0 (sweepable)
Low/High Ranges: Q = 1.0 (fixed) | | Range (Boost/Cut) | +/-15dB (21 step detent) | | Light Indication | | | Threshold Range | Not applicable | | Ratio | Not applicable | | Attack Time | Not applicable | | | | Threshold Range | Not specified by manufacturer | | Frequency Range | Off, 4.9, 6.8, 8.2, 10.7 and 12kHz | | | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | | | Power Requirements | 100~120, 200~240 VAC, 50/60Hz (selectable) | | Dimensions (WxDxH) | 19 x 15.5 x 3.5" (483 x 394 x 89mm) | | Weight | 25 lbs (11.3kg) | | Specialties | True analog-level meter provides indication of output level or gain reduction | | | | Package Weight | 25.65 lb | | Box Dimensions (LxWxH) | 21.1 x 21.0 x 7.5" |
