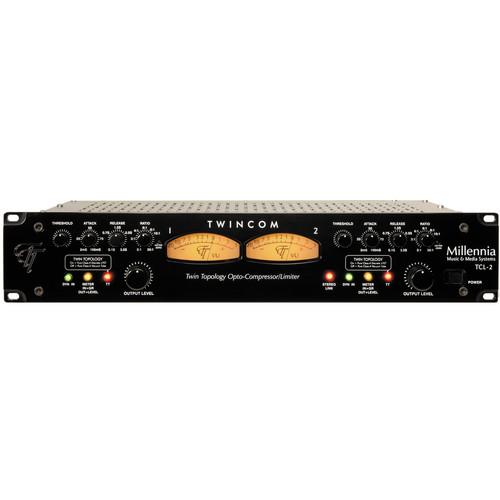

User Manual for Millennia TCL-2 - Twin Topology Opto Compressor Click to enlarge the picture
Contents of the user manual for the Millennia TCL-2 - Twin Topology Opto
- Product category: Dynamics Processors Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Dynamics Processors
|
User manual for the Millennia TCL-2 - Twin Topology Opto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The TCL-2 from Millenia is a dual-channel opto compressor/limiter that delivers true Twin Topology functioning. The overall sonically neutral, analog dynamics processor is a finely tuned instrument intended for critical professional applications. With a flick of a switch, the input signal can be sent through either an all triode vacuum tube path, or an all discrete J-FET solid state signal path. The choice of signal path extends the usefulness of the unit by allowing subtle textural differences to be imparted to the source via the two electronic paths. With the emergence of 24-bit+ digital audio, recording engineers are faced with a new requirement for undistorted dynamic range. The TCL-2 meets this challenge exceptionally well. - Stereo optical compressor/limiter with unprecedented sonic purity and integrity
- Constructed for demanding professional applications
- +20dBu threshold with sweepable attack and release times
- Twin Topology design allows for either an all triode 300V vacuum tube signal path, or an all discrete J-FET solid state signal path
- Both topologies are entirely transformerless, high voltage, pure Class A
- Minimalist design with only one active stage in the audio path
- Large meters, switchable for VU or Gain Reduction
- Ultra-Premium components used throughout
- Gold relays, connectors, switches and tube sockets
- Silver Teflon power wiring
- Mogami Neglex OFC audio wiring
In the Box Millennia TCL-2 - Twin Topology Opto Compressor AC Power Cable One (1) Year Warranty to Orginal Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia TCL-2 - Twin Topology Opto Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia TCL-2 Specs | Function | Compressor/Limiter | | Number of Channels | 2 | | Inputs | 2 x XLR | | Outputs | 2 x XLR | | Maximum Input Level | +30dBu | | Compression Threshold | -20dBu to +20dBu, continuously adjustable | | Compression Ratio | 1.4:1 to 30:1 | | Attack Time | 2 mS to 100 mS, continuously adjustable | | Release Time | 20 mS to 3.0 S, continuously adjustable | | Make-up Gain | Continuously adjustable output gain control | | Maximum Output Level | >+32dBu | | Frequency Response | Sub 2Hz to beyond 100kHz, -3.0dB | | Dynamic Range | Not specified by manufacturer | | THD + N | <0.01%, typical 0.002% (20Hz to 30kHz) | | Power Requirements | 100~120, 200~240 VAC, 50/60Hz (selectable) | | Dimensions (WxDxH) | 19 x 12.5 x 3.5" (483 x 318 x 89mm) | | Weight | 25 lbs (11.3kg) | | Specialties | Both topologies are entirely transformerless, high voltage, pure Class A |
