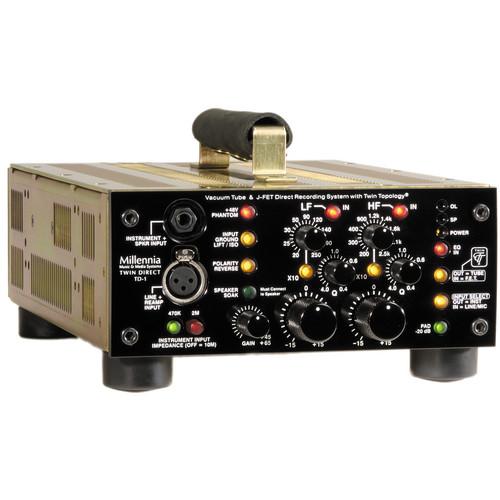

User Manual for Millennia TD-1 - Music Recording System Click to enlarge the picture
Contents of the user manual for the Millennia TD-1 - Music Recording System
- Product category: Channel Strips Millennia
- Brand: Millennia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millennia Channel Strips
|
User manual for the Millennia TD-1 - Music Recording System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millennia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millennia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millennia product will considerably shorten its lifespan!
|
Product description The TD-1 TWIN DIRECT from Millennia is designed to be a sophisticated recording channel and direct box. The unit offers numerous signal path topologies that include vacuum tube, discrete transistors, monolithics, 3 different audio transformers, Speaker Soak, reamping, etc., all sonically optimized to their respective strengths. The DI input stages can be switched to employ high voltage 12AT7 vacuum tube-or-100% discrete J-FET transistor amplifiers. The user may also select low, medium, or high input impedance on both input topologies. Patented Re-Amp outputs with custom-designed magnetics emulate Les Paul and Stratocaster pickups. The microphone preamp is based on the company's HV-3 solid state preamplifier, delivering a pristine front end to the unit. The TD-1 also offers 2 bands of the NSEQ-2 parametric equalization, fully sweepable from 20Hz to 25kHz. The bands provide powerful, yet musical tonal shading for high-resolution sculpting of instruments such as guitar, bass and keyboard, or artistic and corrective work - like adding "air" and "punch," removing "mud," etc. - 4 distinct inputs can be optimized for any source
- Twin Topology DI Instrument channel using either dual-triode 12AT7 vacuum tube or discrete FET solid state circuits
- Discrete solid state HV-3 microphone preamplifier
- Discrete solid state line level amplifier for DAW or tape outputs
- Guitar power amp outputs with "Speaker Soak" technology
- 2-bands of mastering-grade NSEQ-2 parametric EQ isolations
- Optimized DI input for any instrument with variable impedance
- 9 outputs for unlimited functionality
- Patented Re-Amp outputs with custom-designed magnetics emulate Les Paul and Strat pickups
- Audiophile headphone output
- Balanced and unbalanced monolithic outputs
- Balanced and unbalanced discrete FET outputs
- Microphone level output with large-geometry DIT-01 transformer
- Effortlessly musical performance at all dynamic levels
- Input headroom >100V, output headroom >30V
- 100% effective hum removal with numerous ground lifts and isolations
- Ultra-clean toroidal power supply in internal sub-chassis
- Silver Teflon power wiring
- Built for critical professional applications
In the Box Millennia TD-1 - Music Recording System AC Power Cable 4 x Rubber Feet with Mounting Hardware Steel Carrying Handle With Mounting Hardware One (1) Year Warranty to Orginal Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Millennia TD-1 - Music Recording System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillennia TD-1 Specs | Number of Channels | Single | | Inputs | 1 x 1/4" TS phone Instrument (front panel)
1 x XLR Line + Reamp (front panel)
1 x XLR Microphone (rear panel) | | Output | 2 x XLR Line (balanced and unbalanced)
1 x 1/4" TRS phone Line (balanced)
1 x 1/4" TS phone Line (unbalanced)
1 x XLR Transformer Coupled (balanced)
1 x 1/4" TS phone DI Direct
1 x 1/4" TRS phone Headphone
2 x 1/4" TS phone Reamp | | Phantom Power | +48V | | Multi Function | Reamping | | Gain Range | 65dB | | Equalizer | Low-Mid Sweep: 20 Hz to 220Hz or 200Hz to 2.2 kHz (10x range switch selectable)
High- Mid Sweep: 250 Hz to 2.5kHz or 2.5kHz to 25kHz (10x range switch selectable) Q = 0.4 to 4.0 (sweepable) "Bypass" selection available on each EQ band | | Maximum Output Level | +32dBu active balanced outputs
+26dBu unbalanced outputs | | Frequency Response | 3Hz to 300kHz, -3.0dB typical - varies with path and topology | | Noise | Mic EIN: -128dB, 150Ω source, EQ out, 60dB gain
Line: -105dBu, EQ in, 10dB gain
DI: -90dBu, EQ in, 10dB gain | | Power Requirements | 100~120, 200~240 VAC, 50/60Hz (selectable) | | Dimensions (WxDxH) | 8.5 x 13 x 3.5" (216 x 330 x 89mm) | | Weight | 16 lbs (7.3kg) | | Specialties | Instrument DI/Speaker Soak Input can accept signal directly from the output of a power amplifier connected to an appropriate speaker cabinet | | | | Package Weight | 18.15 lb | | Box Dimensions (LxWxH) | 16.4 x 12.5 x 8.5" |
