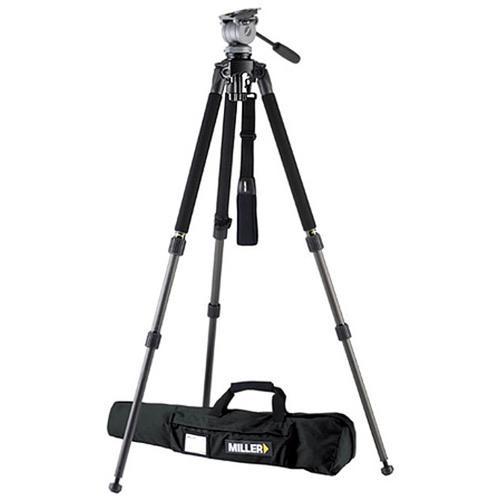

User Manual for Miller 1643 Miller Solo DV Alloy Tripod with DS-20 Fluid Head, Camera Plate, Pan Arm, and Soft Case- Supports up to 22 lb Click to enlarge the picture
Contents of the user manual for the Miller 1643 Miller Solo DV Alloy
- Product category: Tripod Systems Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Tripod Systems
 |
User manual for the Miller 1643 Miller Solo DV Alloy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|

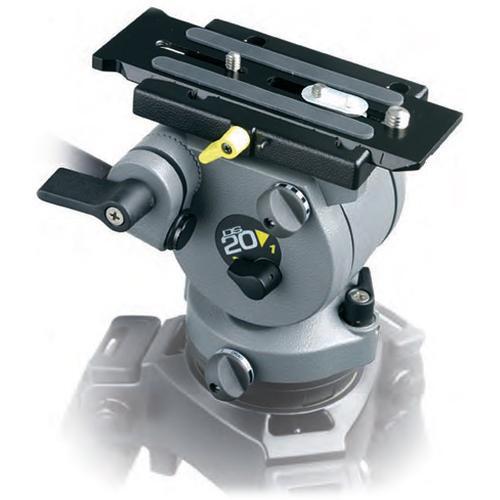

Product description The Miller Solo DV Alloy Tripod with DS-20 Fluid Head is a capable, comprehensive kit for the Mini-DV/DVCAM shooter on the run. Whether you are shooting ENG, EFP, or an independent feature, you'll appreciate the simplicity and ease of setup of the Solo alloy legs, and the adaptability of the DS-20 fluid head. The DS20 fluid head mounts with an industry-standard 75 mm half-ball, and uses oversized sliding camera plates which, in conjunction with the two-position counterbalance, afford perfect camera balance. Pan and tilt movements are governed with continuously variable fluid drag, and reliably locked off with independent, positive-lock caliper brakes. Solo alloy legs are unbraced, yet unexpectedly rigid thanks to a beefy magnesium spider with integrated 75 mm leveling bowl and oversized aluminum alloy leg tubes. Sections extend with ease and lock reliably throughout the 12-63" (30.5-160.0 cm) extension range with rubber-coated locking sleeves on both stages. Terazzo tile? Loose sand? No problem- just wind down the rubber feet for delicate surfaces, and wind them up to reveal steel spikes for soft footings. As a system, the Solo DV/DS20 blends simplicity with finesse into a solid, dependable unit. Seasoned videographers and rank amateurs alike will appreciate the liberty of concentrating on their shots, not worrying about their support! Fluid Head - Stepped, true fluid-dampened pan and tilt movements
- Two-position selectable counterbalance
- Positive-lock caliper braking system
- Oversized sliding quick-release camera plate for optimal balance
- Universal 75 mm ball leveling mount

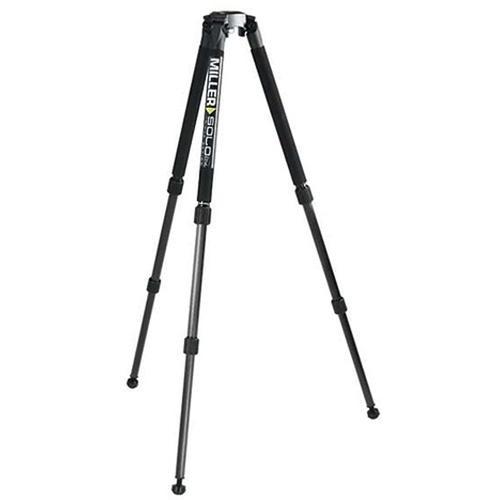

Legs - Rigid, dependable aluminum and magnesium alloy construction
- Three position fixed leg stops
- Solid sleeve-style rotary leg locks
- Retractable rubber feet and spikes

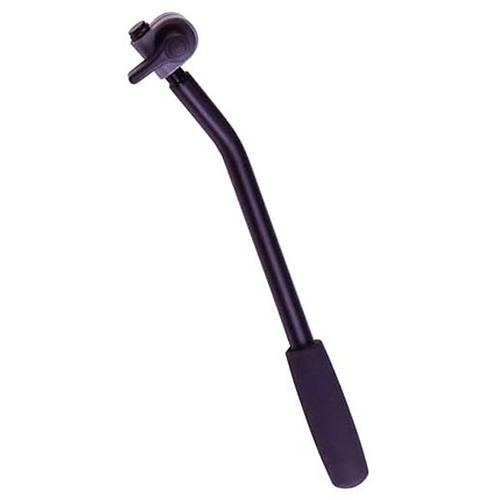

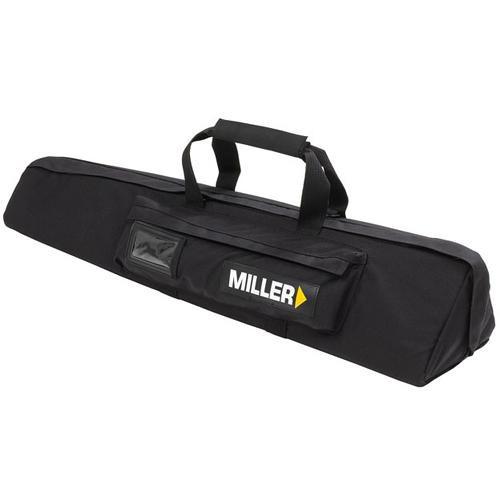

In the Box Miller 1643 Miller Solo DV Alloy Tripod (black) with DS-20 Fluid Head, Camera Plate, Pan Arm, and Soft Case- Supports up to 22 lb (10 kg) DS20 Fluid Head Solo DV 2-Stage Alloy Tripod 680 Pan Arm 489 Quick Release Plate 1518 Soft Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller 1643 Miller Solo DV Alloy Tripod with DS-20 Fluid Head, Camera Plate, Pan Arm, and Soft Case- Supports up to 22 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller DS20 Specs | | | Load Capacity | 22 lb (10 kg) | | Maximum Height | 63" (160 cm) | | Maximum Height w/o Column Extended | Not Specified | | Minimum Height | 12" (30.5 cm) | | Folded Length | 32.9" (83.5 cm) | | Leveling Bubble/Illuminated | Yes/Non | | Weight | 12.8 lbs (5.8 kg) | | Warranty | 3-Year Parts and Labor Warranty | | | | Counter Balance System | Yes | | Quick Release/Wedge Plate | Yes | | Balance Plate | yes | | Tilt Drag | Fluid | | Tilt Range | +90/-75° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Fluid | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Alloy | | Head Attachment Fitting | 75 mm | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Axial Sleeve Locks | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked/Yes | | Center Brace | No | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 37.5 x 12.75 x 10.5" |
