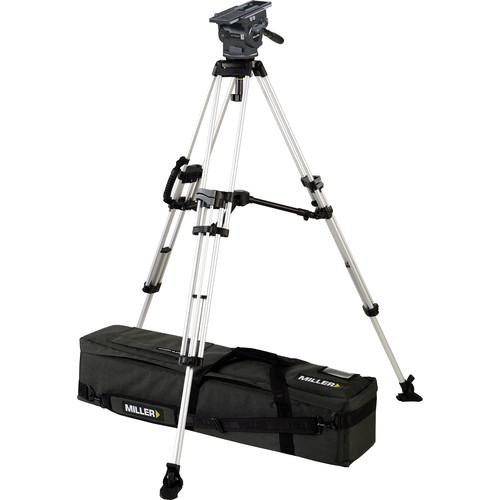

User Manual for Miller 3039 ArrowX 3 Sprinter II 2-Stage Aluminum Alloy Tripod Click to enlarge the picture
Contents of the user manual for the Miller 3039 ArrowX 3 Sprinter II
- Product category: Tripod Systems Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Tripod Systems
|
User manual for the Miller 3039 ArrowX 3 Sprinter II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|
Product description The Miller 3039 ArrowX 3 Sprinter II 2-Stage Aluminum Alloy Tripod includes the ArrowX 3 Fluid Head, 1580 Sprinter II 2-Stage Tripod, 475 Tripod Rubber Feet, 993 Mid-Level Spreader, Telescopic Pan Handle with Carrier, and the 872 Arrow Soft Case.
The ArrowX 3 Fluid Head offers a maximum payload range of 2.2 to 41.8 lb, with 5 + 0 selectable pan-tilt fluid drag positions. It features the CB Plus counterbalance system for repeatable, accurate, and quick setup. The 1580 Sprinter II Aluminum Tripod is meant for run-and-gun ENG work where rapid setup and leveling are as important as rigidity and accuracy. The industry standard 100mm leveling half-bowl accepts most fluid heads, and the aluminum legs are light and offer an economical alternative to carbon fiber.
The three snap-on 475 Tripod Feet are designed to be used in any situation where the integrated dual spiked feet are not optimal. The 993 Mid-Level Spreader for Sprinter, Arrow 25/40, and HD tripod systems offers variable height adjustment with a latch-and-swivel design. The padded 872 Soft Tripod Case is designed for the Miller Arrow 2-stage tripod systems. The Telescopic Pan Handle with Carrier features black anodized aluminum tubing and is made from alloy and rubber. - Arrowx 3 Fluid Head The Arrowx 3 Fluid Head from Miller offers a 2.2 to 41.8 lb payload range and five selectable pan-tilt fluid drag positions, making it suitable for news gathering and documentaries. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
- Compact, lightweight, and versatile
- 5-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 2.2 to 41.8 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce-free, on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball level stud allows for flat base mounting with 3/8" screw thread
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
- Sprinter II 2-Stage Alloy Tripod (Mid-Level Spreader Ready) The Miller Sprinter II 2-Stage Alloy Tripod is a quick-setup solution for a tripod head with 100mm ball base. Its light weight, flip-locks, and rigid construction allow for durability without compromising usability in ENG, EFP, and other pro video applications. Unlike many traditional multi-stage designs, both flip-locks are located on the same section for easy reaching, no matter the height setting. The fast setup is complemented by an in-line carry handle, for portability on set or in the field. Compatible spreaders, rubber feet, and dollys are available separately.
- 475 Rubber Feet Pads for Select Tripods (Set of 3) The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
- 993 Mid-level Spreader The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
- 872 Arrow Soft Case The Miller 872 Soft Tripod Case is a padded tripod carry case designed for the Miller Arrow 2 stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag, 2 interior pockets and 1 large outside pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.
- 1000 denier water-resistant Cordura fabric
- Rigid sidewalls sandwiched between high density EVA foam padding
- Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport
- Padded interlocking carry straps and padded shoulder strap
- 1 Large outside pocket and 2 inside accessory pockets
- Heavy duty zippers on bag and pocket
- Compatible with;
-
- Arrow 2 stage system tripod
- Telescopic Pan Handle with Carrier (Black)
- Key Features
-
- Supplied with black handle carrier
- Durable black anodized aluminum tubing
- Material alloy/rubber
In the Box Bundle Items Arrowx 3 Fluid Head wbuurfwzabxfcqvwwdvxwdcydcwvavd Sprinter II 2-Stage Alloy Tripod (Mid-Level Spreader Ready) 475 Rubber Feet Pads for Select Tripods (Set of 3) 993 Mid-level Spreader 872 Arrow Soft Case Telescopic Pan Handle with Carrier (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller 3039 ArrowX 3 Sprinter II 2-Stage Aluminum Alloy Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Arrowx 3 Fluid Head
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Balance Plate Sliding Range | 4.7" / 120 mm | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | Tilt: 5-Step Plus 0
Pan: 5-Step Plus 0 | | Vertical Tilt | +90
