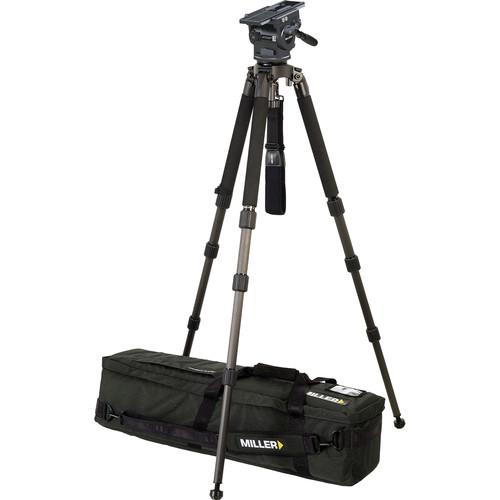

User Manual for Miller 3068 ArrowX 3 Solo 100 3-Stage Carbon Fiber Tripod System

• Product category: Tripod Systems Miller
• Brand: Miller
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Miller Tripod Systems

Product description

• Arrowx 3 Fluid Head The Arrow^x 3 Fluid Head from Miller offers a 2.2 to 41.8 lb payload range and five selectable pan-tilt fluid drag positions, making it suitable for news gathering and documentaries. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
  • Compact, lightweight, and versatile
  • 5-step plus zero pan and tilt drag
  • 16-position CB Plus counterbalance system
  • Wide payload range of 2.2 to 41.8 lb
  • Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
  • Controls all-in-one design for fast, easy and practical use
  • Illuminated bubble level and pan-tilt drag controls
  • Precise floating pan-tilt caliper locks ensure bounce-free, on-off performance
  • Quick-release, 120mm sliding camera platform with Euro-style camera plate
  • Removable 100mm ball level stud allows for flat base mounting with 3/8" screw thread
  • Mitchell base adaptable
  • Robust construction for rugged outdoor shooting conditions
  • Optional second pan handle mount
  • Side mounting points for viewfinders and accessories
• SOLO VJ Carbon Fiber 3-Stage Tripod Legs (100mm Bowl) The SOLO VJ with it's carbon fiber/magnesium design achieves incredibly high torsional rigidity with rock solid stability. Boasting an incredible 8" - 73" height range, this 3-Stage ring-locking tripod collapses down to a dwarf-like 25 1/2". Designed for Video Journalists on the run, SOLO VJ is ultra-light and ultra-versatile, utilizing leg-angle locking to eliminate the need for a spreader, and to reduce overall system weight and complexity.
  • Carbon fiber construction, supports all full size ENG/EFP camcorders
  • 100mm / 4" bowl base
  • Safe, speedy 3-Stage ring lock leg clamping
  • Eliminates Spreader with Leg Angle Lock
  • Maximum height of 73.6-inch
  • Supports up to 66.0 lb
  • Spike or wind-down rubber feet
• 1520 Solo DV Strap The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.
  • 1.5 inch wide tripod carry strap
  • 17 inch long shoulder pad
  Compatible with;
  • • Miller Solo DV tripods
• Telescopic Pan Handle with Carrier (Black)
  Key Features
  • • Supplied with black handle carrier
    • Durable black anodized aluminum tubing
    • Material alloy/rubber
• 872 Arrow Soft Case The Miller 872 Soft Tripod Case is a padded tripod carry case designed for the Miller Arrow 2 stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag, 2 interior pockets and 1 large outside pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.
  • 1000 denier water-resistant Cordura fabric
  • Rigid sidewalls sandwiched between high density EVA foam padding
  • Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport
  • Padded interlocking carry straps and padded shoulder strap
  • 1 Large outside pocket and 2 inside accessory pockets
  • Heavy duty zippers on bag and pocket
  • ID window
  Compatible with;
  • • Arrow 2 stage system tripod

• Limited 3-Year Warranty

• Carrying Strap (#1524)

• Limited 3-Year Warranty

• 1 Year Warranty

• Padded shoulder strap

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Arrowx 3 Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Balance Plate Sliding Range	4.7" / 120 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 5-Step Plus 0 Pan: 5-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 37 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
