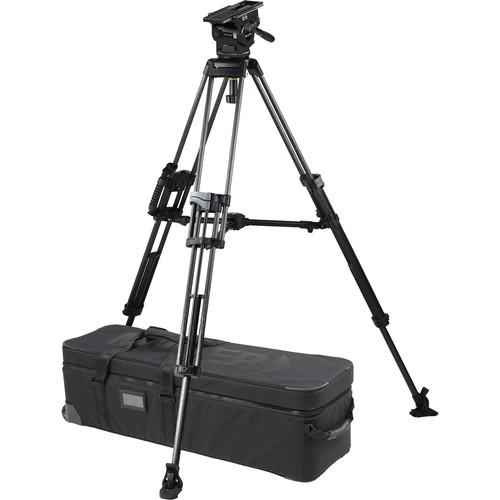

Product description The 3164 ArrowX 7 HD 2-Stage Carbon Fiber Tripod System from Miller includes the ArrowX 7 Fluid Head, 1576 Sprinter II 2-Stage Carbon Fiber Tripod, 475 Tripod Feet, 993 Mid-Level Spreader, 975 Arrow Shell Case with Wheels, and 696 Telescopic Pan Handle with Carrier.
With a 13.2 to 55.1 lb payload range and 7 + 0 selectable pan-tilt fluid drag positions, the ArrowX 7 Fluid Head is suitable for EFP, studio, and field broadcast applications. It also features precision fluid drag and a 16-position CB Plus counterbalance system. The 1576 Sprinter II carbon fiber tripod is meant for run-and-gun ENG work where rapid setup and leveling are as important as rigidity and accuracy. The industry standard 100mm levelling half bowl accepts most fluid heads, and the carbon fiber legs are lighter than aluminum and absorb vibration.
The three snap-on 475 Tripod Feet are designed to be used in any situation where the integrated dual spiked feet are not optimal. The 993 Mid-Level Spreader for Sprinter, Arrow 25/40, and HD tripod systems offers variable height adjustment with a latch-and-swivel design. The Telescopic Pan Handle with Carrier features black anodized aluminum tubing and is made from alloy and rubber material. The black 975 Arrow Shell Case with Wheels is designed to transport and protect Miller Arrow 2-Stage tripod systems. - Arrowx 7 Fluid Head The Arrowx 7 Fluid Head from Miller is suitable for EFP, Studio, and Field OB applications. It offers a 13.2 to 55.1 lb payload range and seven selectable pan-tilt fluid drag positions. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
- Compact, lightweight, and versatile
- 7-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 13.2 to 55.1 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce-free on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball leveling with three 3/8" holes for flat base mounting
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
- Sprinter II 2-Stage Carbon Fiber Tripod (Mid-Level Spreader Ready) The Miller Sprinter II 2-Stage Carbon Fiber Tripod is a quick-setup solution for a tripod head with 100mm ball base. Its light weight, flip-locks, and rigid construction allow for durability without compromising usability in ENG, EFP, and other pro video applications. Unlike many traditional multi-stage designs, both flip-locks are located on the same section for easy reaching, no matter the height setting. The fast setup is complemented by an in-line carry handle, for portability on set or in the field. Compatible spreaders, rubber feet, and dollys are available separately.
- 475 Rubber Feet Pads for Select Tripods (Set of 3) The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
- 993 Mid-level Spreader The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
- 975 Arrow Shell Case with Wheels The Miller 975 Arrow Shell Case with Wheels (Black) is designed to transport and protect Miller Arrow 2-Stage tripod systems. The case is made from weatherproof 1000 denier Cordura nylon with heavy-duty interior padding. It also has molded plastic corners, feet and base supports. There are 2 mesh pockets in the lid and 1 accessory pocket inside. The interior has a protective head cradle that fits a full range of Arrow fluid heads and snap-lock straps that ensure the tripod is secure during transportation. The case is transported by heavy-duty carry straps with an overlapping grip, a pull handle and built-in Inline roller wheels that provide comfortable and weightless transport.
- Construction
-
- Weatherproof 1000 denier Cordura nylon exterior
- Heavy-duty interior padding
- Molded plastic corner protection
- Molded plastic feet
- Molded base supports
- Zipper closure
- Pockets
-
- Two mesh pockets in the lid
- One accessory pocket inside
- ID window
- Inside protective head cradle fits a full range of Arrow fluid heads
- Inside snap-lock straps ensure the tripod is secure during transportation
- Carrying options
-
- Heavy-duty carry straps with overlapping grip
- Pull handle
- Built-in Inline roller wheels provide comfortable and weightless transport
- Compatible with Miller Arrow 2-Stage tripod systems
- Telescopic Pan Handle with Carrier (Black)
- Key Features
-
- Supplied with black handle carrier
- Durable black anodized aluminum tubing
- Material alloy/rubber
In the Box Bundle Items Arrowx 7 Fluid Head wbuurfwzabxfcqvwwdvxwdcydcwvavd Sprinter II 2-Stage Carbon Fiber Tripod (Mid-Level Spreader Ready) 475 Rubber Feet Pads for Select Tripods (Set of 3) 993 Mid-level Spreader 975 Arrow Shell Case with Wheels Telescopic Pan Handle with Carrier (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller 3164 ArrowX 7 HD 2-Stage Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Arrowx 7 Fluid Head
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Balance Plate Sliding Range | 4.7" / 120 mm | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0 | | Vertical Tilt | +90
