User Manual for Miller Air Carbon Fiber Tripod System Click to enlarge the picture
Contents of the user manual for the Miller Air Carbon Fiber Tripod System
- Product category: Tripod Systems Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Tripod Systems
|
User manual for the Miller Air Carbon Fiber Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|

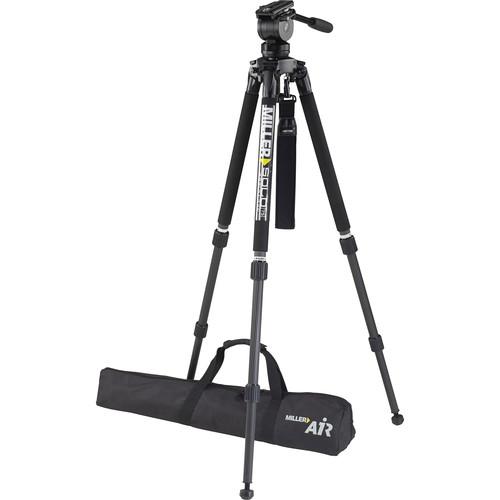

Product description The Miller Air Carbon Fiber Tripod System is a lightweight system built for indoor and outdoor shooting conditions for both video and photo applications. It includes carbon fiber tripod legs designed for quick setups and breakdowns, and a pan and tilt fluid head offering constant drag in all temperature ranges. It also includes a quick-release camera plate, pan handle, padded tripod carry strap, and weatherproof, padded soft carry case. The system features a 4.4 lb - 11 lb payload range.
The tripod legs are height-adjustable in two stages between a ground-hugging 9.2" and secure 63". A neoprene grip on the upper leg section provides a comfortable way of moving the tripod when it's already set up. When the tripod is folded, you can use the included carry strap to carry the tripod over your shoulder as an alternative to using the carrying case. The fluid head offers two selectable counterbalance positions and 90° to -75° tilt range. It also provides a 60mm sliding range for the included camera plate.
The tripod has rubber feet that wind up to reveal spikes for use on soft ground. The camera plate offers 1/4"-20 and 3/8"-16 camera-mounting screws, and a 1/4"-20 screw adapter with a locating pin is also included for added safety. - Key Features
-
- 4.4 lb - 11 lb payload
- 75mm bowl / 75mm ball
- 2 selectable counterbalance positions
- Constant fluid drag in all temperature ranges
- 90° to -75° tilt range
- Height-adjustable from 9.2" to 63"
- 2 leg stages / 3 leg sections
- Rubber feet with spikes within
- Neoprene grip leg protection on upper leg section
- Quick-release camera plate
- 60mm camera plate sliding range
- Pan handle
- Padded tripod carrying strap
- Weatherproof, padded soft carry case
In the Box Miller Air Carbon Fiber Tripod System SOLO DV Carbon Fiber 2-Stage Tripod Legs (75mm Bowl) cstevvwcaezfbqdtzbwqtyetravssxbads Air Fluid Head Pan Handle Sliding Camera Plate 1520 Solo DV Strap 1/4"-20 Screw & Location Pin Adapter Weatherproof, Padded Air Soft Carry Case Limited 3-Year Warranty User Manual PDF 984.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller Air Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller 3005 Specs | | | Payload | 4.4 - 11 lb (2 - 5 kg) | | Counterbalance | 2 selectable positions | | Tilt Range | 90 to -75° | | Camera Plate Sliding Range | 60 mm | | Ball | 75 mm | | | | Payload | 44 lb (20 kg) | | Bowl | Integrated 75 mm bowl with bubble level | | Material | Carbon fiber | | Maximum Height | 69.4" (176 cm) | | Minimum Height | 9.2" (23.4 cm) | | Folded Length | 27.6" (70 cm) | | Stages | 2 stages / 3 sections | | Leg Lock Type | Concentric | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Yes/Yes | | Center Brace | No | | Weight | 5.5 lb (2.5 kg) | | | | Folded Length | 33" (84 cm) (with head attached) | | Mount Type | 1/4"-20 + pin; 1/4"-20 & 3/8"-16 | | Total Weight | 9.9 lb (4.5 kg) | | | | Package Weight | 17.75 lb | | Box Dimensions (LxWxH) | 37.0 x 12.7 x 10.7" |
