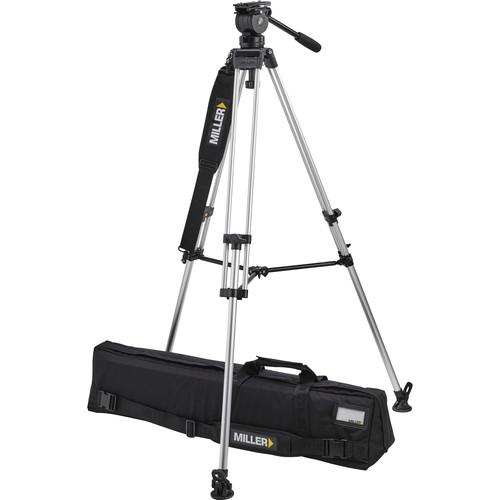

Miller AIR Toggle LW Alloy System

User Manual for Miller AIR Toggle LW Alloy System

• Product category: Tripod Systems Miller
• Brand: Miller
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Miller Tripod Systems

Product description

• Air Fluid Head The Air Fluid Head from Miller is constructed of light weight hi-strength die-cast alloy and rigid composite polymers, incorporating advanced precision fluid drag and two positions of counterbalance, with the ability to handle a wide range of payloads from 4.4 to 11 lb. The fluid drag system employs smooth start and soft stop technology, well balanced diagonal drag transitions and consistent drag resistance over temperatures ranging from -40 to 149°F.
  • Miller fluid head pan and tilt technology
  • Suitable for payloads between 4.4 to 11 lb
  • Built for rugged outdoor shooting conditions
  • Removable stud allowing head to be mounted on a solopod and slider via a 3/8" thread
  • Optional second pan handle mount
  Compatibility
  • Solo Strap (1520), Solo 75 2-Stage Alloy Tripod (1630), Solo Dolly (394), Air Accessory Mounting Block (2092), Fixed Length Pan Handle for Air Fluid Heads (682)
• Toggle 75 1-Stage Alloy Tripod (Mid-Level Spreader Ready) The Miller Toggle 1-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The single-stage design allows for a 24.4 to 52.4" height range while maintaining a folded length of 32.7". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
• 835 Non-Adjustable Above-Ground Tripod Spreader A Mid-Level Spreader is chosen when shooting is often performed on uneven surfaces, such as steps, rocky ground, slopes. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches to the center bracket of a tripod and folds down within tripod without having to take it off.
  • Speedy set-up for all lightweight tripods
  • Quick release attachment pins
  • Integrated in DS5 and DS10 systems with lightweight tripods
• 550 Rubber Feet Pads for Select Tripods (Set of 3) The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.
• 874 Soft Tripod Case The Miller 874 Soft Tripod Case is a padded tripod carry case designed for the Miller DS single stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag and the interior pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.
  • 1000 denier water-resistant Cordura fabric
  • Rigid sidewalls sandwiched between high density EVA foam padding
  • Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport
  • Padded interlocking carry straps and padded shoulder strap
  • 1 Interior accessory pocket
  • Heavy duty zippers on bag and pocket
  • ID window
  Compatible with;
  • • Miller DS single stage system tripod

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Padded shoulder strap

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Air Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release

  Base Mount	75 mm Half Ball

  Drag Control	Pan: 3-Step Plus 0
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 83 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
