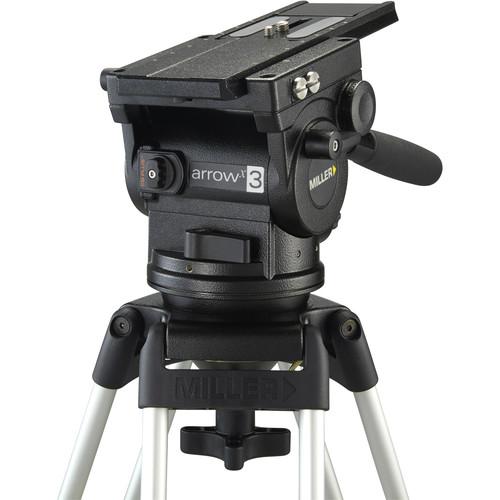

User Manual for Miller Arrowx 3 Fluid Head Click to enlarge the picture
Contents of the user manual for the Miller Arrowx 3 Fluid Head
- Product category: Video Tripod Heads Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Video Tripod Heads
|
User manual for the Miller Arrowx 3 Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|
Product description The Arrowx 3 Fluid Head from Miller offers a 2.2 to 41.8 lb payload range and five selectable pan-tilt fluid drag positions, making it suitable for news gathering and documentaries. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required. - Compact, lightweight, and versatile
- 5-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 2.2 to 41.8 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce-free, on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball level stud allows for flat base mounting with 3/8" screw thread
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
In the Box Miller Arrowx 3 Fluid Head Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller Arrowx 3 Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller Arrowx 3 Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Balance Plate Sliding Range | 4.7" / 120 mm | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | Tilt: 5-Step Plus 0
Pan: 5-Step Plus 0 | | Vertical Tilt | +90
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
