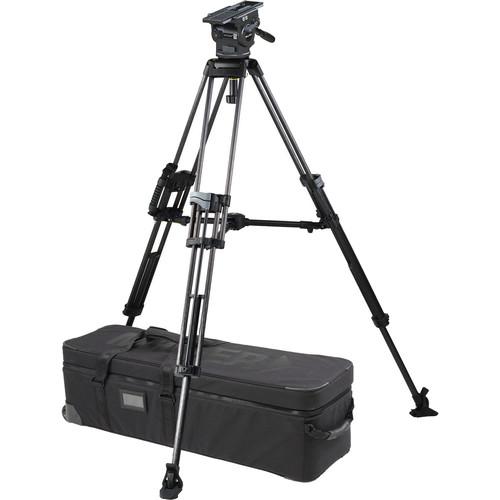

User Manual for Miller ArrowX 5 Sprinter II 2-Stage Carbon Fiber Tripod System with Mid-Level Spreader

• Product category: Tripod Systems Miller
• Brand: Miller
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Miller Tripod Systems

Product description

• Arrow X5 Fluid Head The Arrow X5 Fluid Head from Miller is suitable for use with ENG and EFP camcorders. It offers a 4.4 to 46.2 lb payload range and seven selectable pan-tilt fluid drag positions. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, features eight larger counterbalance steps, allowing you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required. The Arrow X5 fluid head features a 100mm ball leveling with three M5 holes for flat base mounting. The pan and tilt locks utilize caliper disc brakes for reliable, short-throw fixing.
  • Compact, lightweight, and versatile
  • 7-step plus zero pan and tilt drag
  • 16-position CB Plus counterbalance system
  • Wide payload range of 4.4 to 46.2 lb
  • Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
  • Controls all-in-one-location design for fast, easy and practical use
  • Illuminated bubble level and pan-tilt drag controls
  • Precise floating pan-tilt caliper locks ensure bounce free on-off performance
  • Quick-release, 120mm sliding camera platform with Euro-style camera plate
  • Removable 100mm ball leveling with three 3/8" holes for flat base mounting
  • Mitchell base adaptable
  • Robust construction for rugged outdoor shooting conditions
  • Optional second pan handle mount
  • Side mounting points for viewfinders and accessories
• Sprinter II 2-Stage Carbon Fiber Tripod (Mid-Level Spreader Ready) The Miller Sprinter II 2-Stage Carbon Fiber Tripod is a quick-setup solution for a tripod head with 100mm ball base. Its light weight, flip-locks, and rigid construction allow for durability without compromising usability in ENG, EFP, and other pro video applications. Unlike many traditional multi-stage designs, both flip-locks are located on the same section for easy reaching, no matter the height setting. The fast setup is complemented by an in-line carry handle, for portability on set or in the field. Compatible spreaders, rubber feet, and dollys are available separately.
• 993 Mid-level Spreader The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
• Telescopic Pan Handle with Carrier (Black)
  Key Features
  • • Supplied with black handle carrier
    • Durable black anodized aluminum tubing
    • Material alloy/rubber
• 975 Arrow Shell Case with Wheels The Miller 975 Arrow Shell Case with Wheels (Black) is designed to transport and protect Miller Arrow 2-Stage tripod systems. The case is made from weatherproof 1000 denier Cordura nylon with heavy-duty interior padding. It also has molded plastic corners, feet and base supports. There are 2 mesh pockets in the lid and 1 accessory pocket inside. The interior has a protective head cradle that fits a full range of Arrow fluid heads and snap-lock straps that ensure the tripod is secure during transportation. The case is transported by heavy-duty carry straps with an overlapping grip, a pull handle and built-in Inline roller wheels that provide comfortable and weightless transport.
  Construction
  • • Weatherproof 1000 denier Cordura nylon exterior
    • Heavy-duty interior padding
    • Molded plastic corner protection
    • Molded plastic feet
    • Molded base supports
    • Zipper closure
  Pockets
  • • Two mesh pockets in the lid
    • One accessory pocket inside
    • ID window
  • Inside protective head cradle fits a full range of Arrow fluid heads
  • Inside snap-lock straps ensure the tripod is secure during transportation
  Carrying options
  • • Heavy-duty carry straps with overlapping grip
    • Pull handle
    • Built-in Inline roller wheels provide comfortable and weightless transport
  • Compatible with Miller Arrow 2-Stage tripod systems
• 475 Rubber Feet Pads for Select Tripods (Set of 3) The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Spreader

• 3 Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Arrow X5 Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Balance Plate Sliding Range	4.7" / 120 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 7-Step Plus 0 Pan: 7-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 65 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
