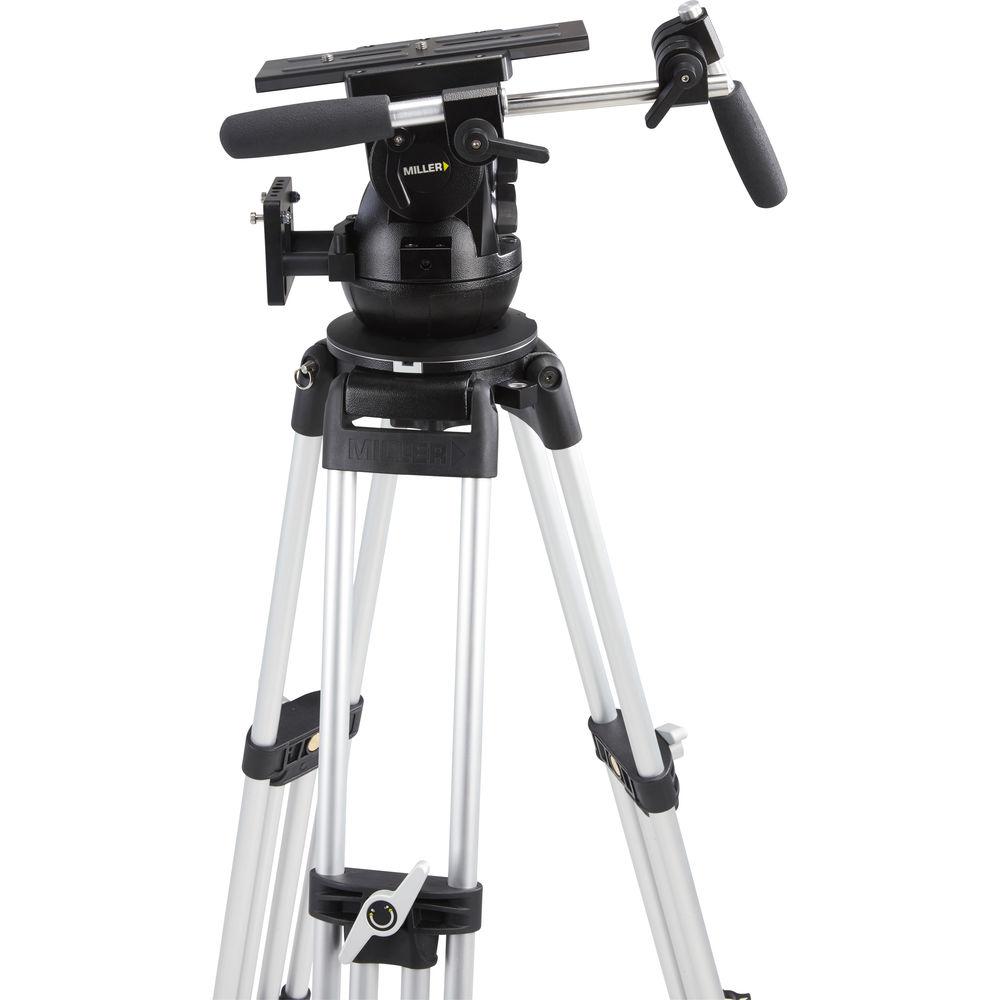

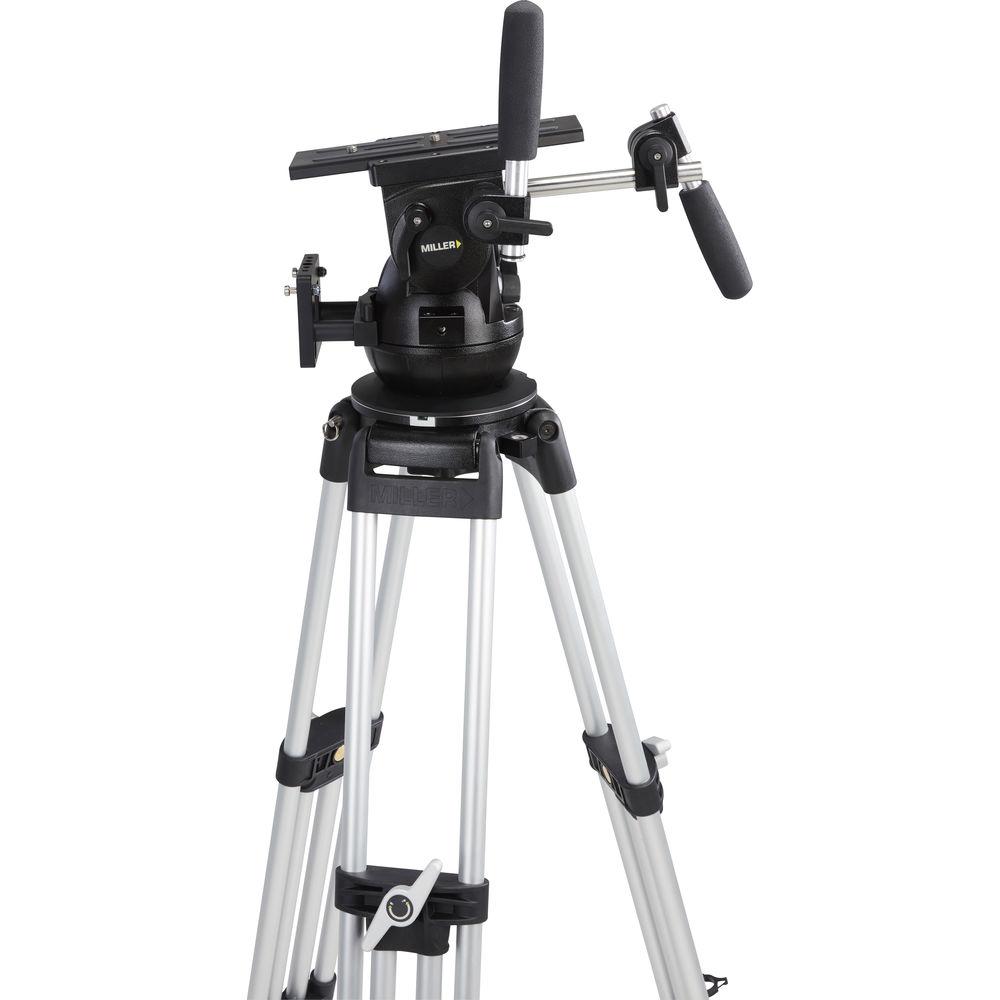

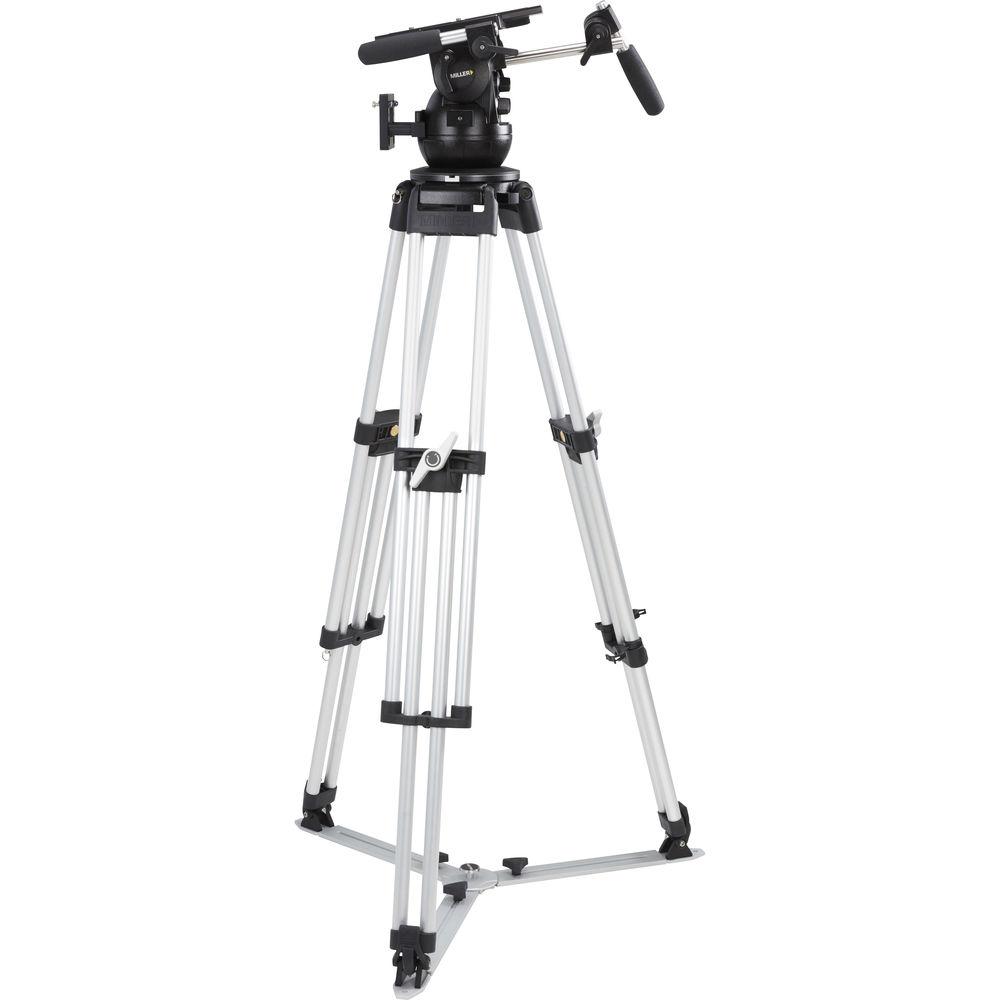

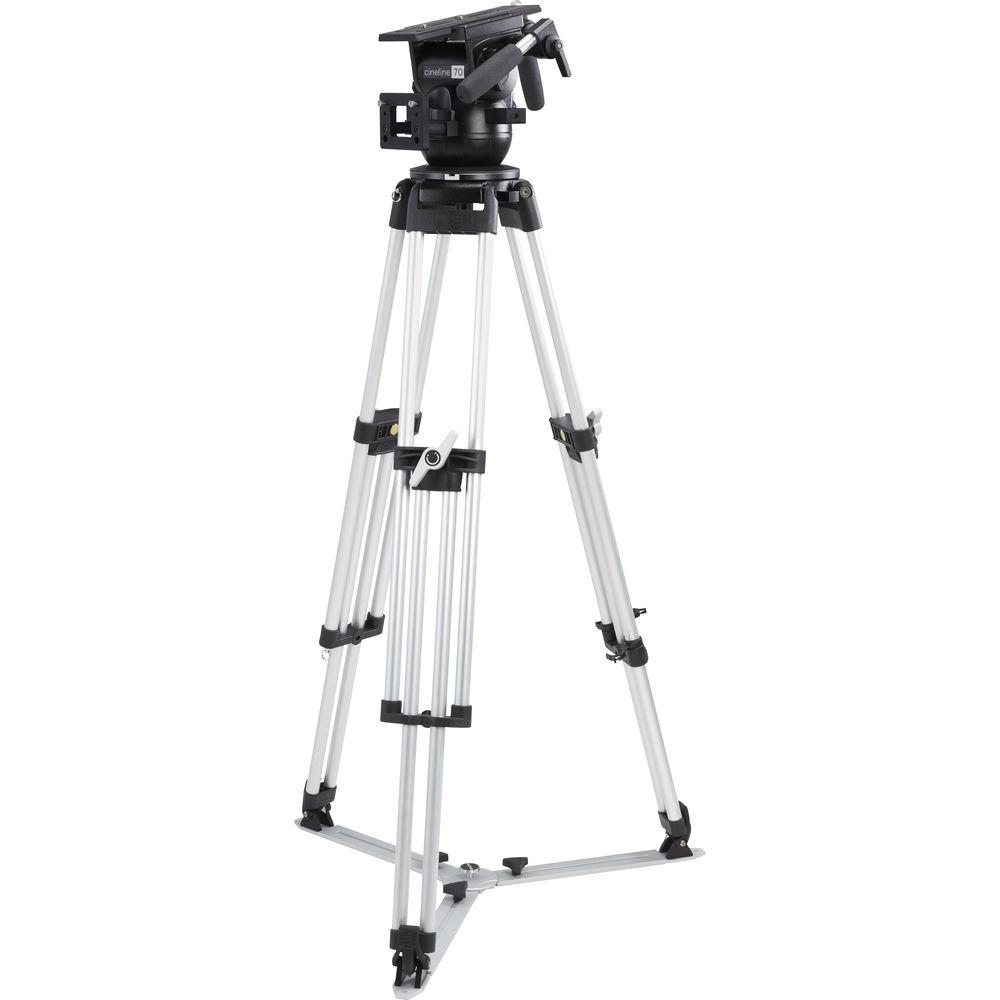

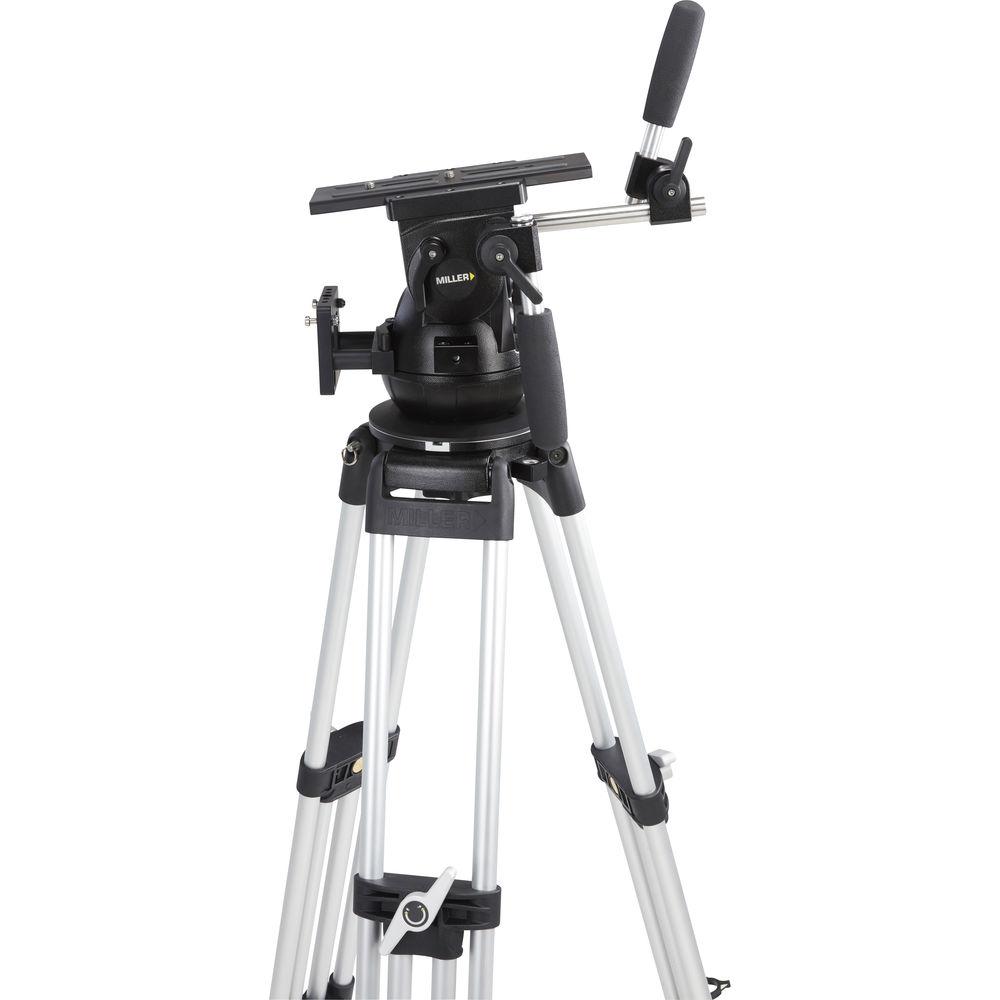

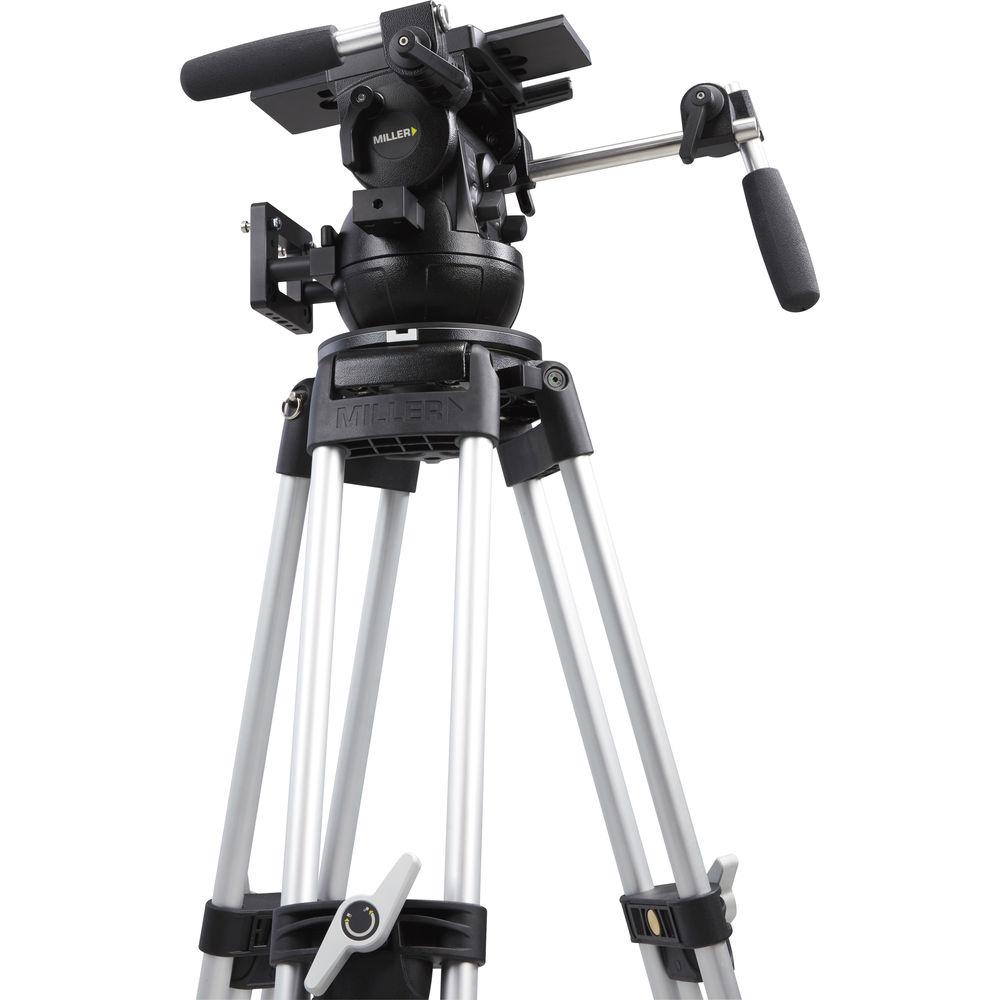

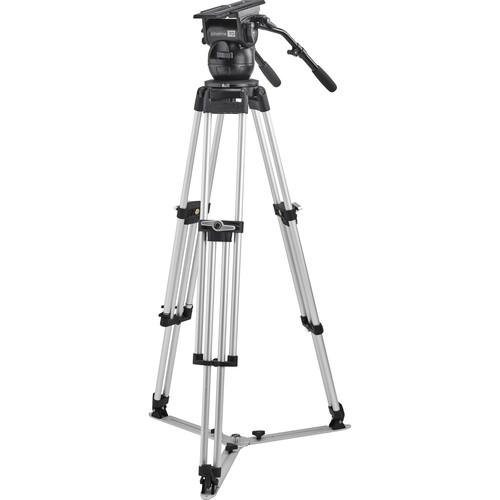

Product description The Miller Cineline 70 HD MB 1-Stage Alloy Tripod System includes the Cineline 70 Fluid Head (1055), Mitchell Base Adapter with Clamp (1225), HD MB 1-Stage Alloy Tripod (2110), and an HD Ground Spreader (2130).
The Cineline 70 head features an ARRI-sized side-loading camera plate and 150mm ball base. The Mitchell Base Adapter allows the Skyline 70 Fluid Head to be connected with a Mitchell base and can be used with heavy-duty Mitchell tripods. The HD MB 1-Stage Tripod features adjustable flip locks for a quick setup. This solid single-stage 150mm alloy support is built with shorter tube lengths for use on a studio dolly, offering stable camera support. And the HD Ground Spreader offers a rapid setup and pull-down by keeping tripod legs at an equal or preset distance. - Cineline 70 Fluid Head (150mm) Supporting payloads up to 82.5 lb, the Miller Cineline 70 Fluid Head is designed for feature films, documentaries, and commercial productions with heavy digital cinema camera rigs. It features an ARRI-sized side-loading camera plate, 150mm ball base, and when fitted with Miller's optional Mitchell Base Adapter 1225, can be mounted on traditional Mitchell flat base tripods. The Cineline 70 head offers seven positions (plus zero) of fluid pan and tilt drag and eight selectable counterbalance settings - all conveniently located for quick and easy access.
While designed to support heavy loads, the Cineline 70 remains lightweight at only 12.6 lb thanks to its alloy construction, which is also water and dust resistant. The ARRI-style side-loading camera plate has two 3/8"-16 screws and offers a 5.9" sliding range, aiding in quick rig re-balancing when lenses and accessories are changed. Additionally, the head has dual side mounts for attaching accessories via optional mounting brackets or threaded adapters, as well as a front head mount for attaching Mitchell's optional adapter camera assistant's box adapter. The head comes included with dual telescopic pan handles, adjustable from 15.4 to 23.2" in length. -
- 150mm ball base
- Supports loads up to 82.7 lb
- 7 (+0) fluid pan/tilt drag positions
- 8 selectable counterbalance positions
- Side-loading camera plate; 5.9" sliding range for rig balancing; 2x 3/8"-16 screws
- Easy-to-access rear mounted controls
- Illuminated pan/tilt drag, counterbalance controls, and bubble level
- Compatible with Mitchell flat base tripods with optional Mitchell Base Adapter 1225
- Dual side mounts for monitors and accessories
- Front head mount for camera assistants accessory box
- Aluminum alloy construction
- Black low sheen finish with anti-corrosive pre-treatment
- Water and dust resistant
- Mitchell Base Adapter for Skyline 70 Fluid Head The Miller Mitchell Base Adapter allows the Skyline 70 Fluid Head to be connected with a Mitchell base and can be used with heavy-duty Mitchell tripods.
- HD Ground Spreader for HD MB 1-Stage Tripod The HD Ground Spreader from Miller is designed for use with the HD MB 1-Stage Tripod. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other.
- Compatibility
- HD MB 1-Stage Tripod (2110)
In the Box Bundle Items Cineline 70 Fluid Head (150mm) - Side-Loading ARRI-Style Camera Plate
- 2 x Telescopic Pan Handle
Mitchell Base Adapter for Skyline 70 Fluid Head HD Ground Spreader for HD MB 1-Stage Tripod
Also Includes - HD MB 1-Stage Alloy Tripod (2110)
Brochure PDF 665kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller Cineline 70 HD MB 1-Stage Alloy Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cineline 70 Fluid Head (150mm)
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Mounting Screw | 2 x 3/8"-16 Male | | Balance Plate Sliding Range | 5.9" / 150 mm | | Safety Lock | Yes | | | | Base Mount | Mitchell Flat Base | | | | Drag Control | Pan: 7-Step Plus 0
Tilt: 7-Step Plus 0 | | Vertical Tilt | +90
