Miller CX2 Fluid Head with Toggle

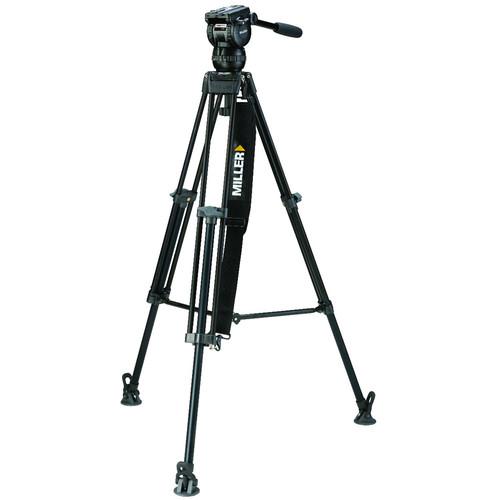

User Manual for Miller CX2 Fluid Head with Toggle 75 1-Stage Alloy Tripod System

• Product category: Tripod Systems Miller
• Brand: Miller
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Miller Tripod Systems

Product description

• CX2 Fluid Head The Miller CX2 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 17.6 pounds, adequate for a rigged up DSLR or mirrorless camera, a smaller cinema camera, or a small ENG camcorder. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4" of sliding range to balance your rig. To survive fast-paced shooting environments, the CX2 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX2 will perform reliably. The base of the CX2 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX2 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.
• Toggle 75 1-Stage Alloy Tripod (Mid-Level Spreader Ready) The Miller Toggle 1-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The single-stage design allows for a 24.4 to 52.4" height range while maintaining a folded length of 32.7". Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 55 pounds. Compatible spreaders, rubber feet, and dollies are available separately.
• Pan Handle for Compass15 and Compass20 Fluid Heads The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.
• 550 Rubber Feet Pads for Select Tripods (Set of 3) The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.
• 835 Non-Adjustable Above-Ground Tripod Spreader A Mid-Level Spreader is chosen when shooting is often performed on uneven surfaces, such as steps, rocky ground, slopes. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches to the center bracket of a tripod and folds down within tripod without having to take it off.
  • Speedy set-up for all lightweight tripods
  • Quick release attachment pins
  • Integrated in DS5 and DS10 systems with lightweight tripods
• 554 HD Shoulder Strap The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25" to 36" and has a 3" long shoulder pad.
  • 2 inch wide tripod carry strap
  • 3" long shoulder pad
  Compatible with;
  • • Miller Sprinter tripods
    • Sachtler Hot Pods and other models with a key ring to attach a strap
    • Any tripod 25" to 36" long with a key ring to attach a strap
• 874 Soft Tripod Case The Miller 874 Soft Tripod Case is a padded tripod carry case designed for the Miller DS single stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag and the interior pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.
  • 1000 denier water-resistant Cordura fabric
  • Rigid sidewalls sandwiched between high density EVA foam padding
  • Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport
  • Padded interlocking carry straps and padded shoulder strap
  • 1 Interior accessory pocket
  • Heavy duty zippers on bag and pocket
  • ID window
  Compatible with;
  • • Miller DS single stage system tripod

• Pan Handle

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• 3-Year Warranty

• Limited 3-Year Warranty

• 1 year warranty

• Padded shoulder strap

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CX2 Fluid Head

  Camera Plate Features	Sliding Balance Plate
  Balance Plate Sliding Range	2.4" / 6 cm

  Base Mount	75 mm Half Ball

  Drag Control	Pan: 3-Step Plus 0 Tilt: 3-Step Plus 0
  Vertical Tilt	+90 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 51 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
