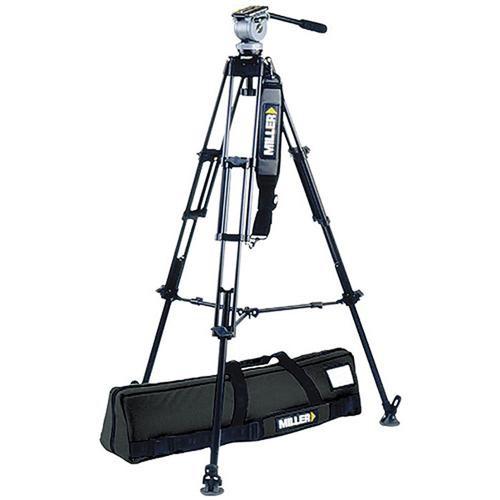

User Manual for Miller DS-20 Aluminum Tripod System - consists of: DS-20 Fluid Head, DS 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 20 lbs Click to enlarge the picture
Contents of the user manual for the Miller DS-20 Aluminum Tripod System -
- Product category: Tripod Systems Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Tripod Systems
 |
User manual for the Miller DS-20 Aluminum Tripod System - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|

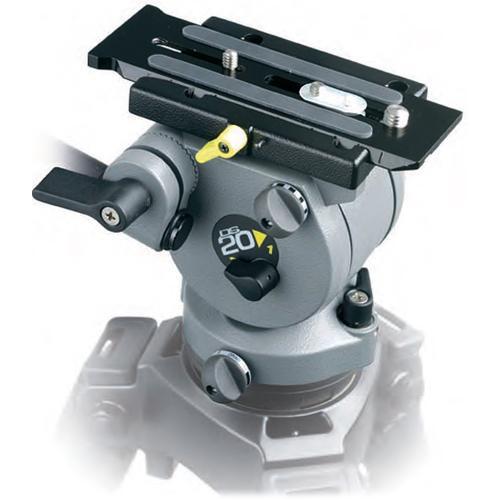

Product description The DS-20 tripod system consists of the DS-20 fluid head, designed to bring "Big Head" performance and professional features like Dynamic Fluid Drag control and an integrated Static Counterbalancing System, for today's lightweight DVCAM and DVC-PRO camcorders. Offers a sliding balance plate, independent Pan and Tilt locks, precision spirit level and integral 75mm ball leveling. The result is lightweight support that delivers superior performance. Also included is a lightweight two-stage tripod with a 75mm-bowl fixing. Constructed of aluminum alloy with toggle leg clamping system and are independently adjustable. The ultimate for news gatherers who demand rock-solid stability under the most hostile location conditions. DS-20 Fluid Head - Multi-Step Pan & Tilt Fluid Drag System
- The multi-step Fluid Drag system ensures smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings. By being independent of payload weight, provides smooth "starts" and dead "stops" for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leakproof, low maintenance life.
- Preset Counterbalancing
- Uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity. The built-in preset counterbalance system optimizes tilt control in the intended capacity range.
- Quick Release Camera Platform
- Fitted with a precision, sliding quick release camera platform with self-engaging action. Ensuring rapid camera attachment, while the built-in safety lock guarantees camera safety during setup and pull-down.
- Built-in bubble for horizontal leveling

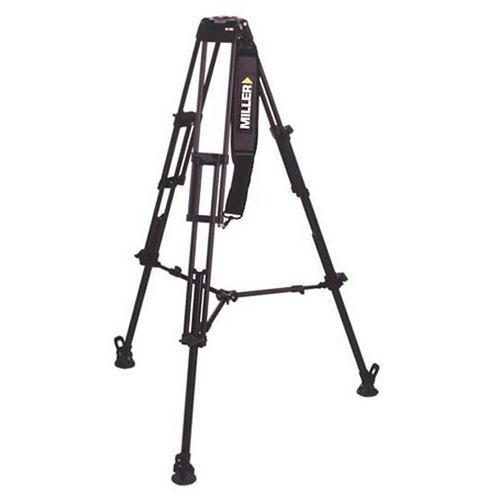

Tripod Legs - Built-in bubble for horizontal leveling
- Maximum height 61.0-inch (not including head)

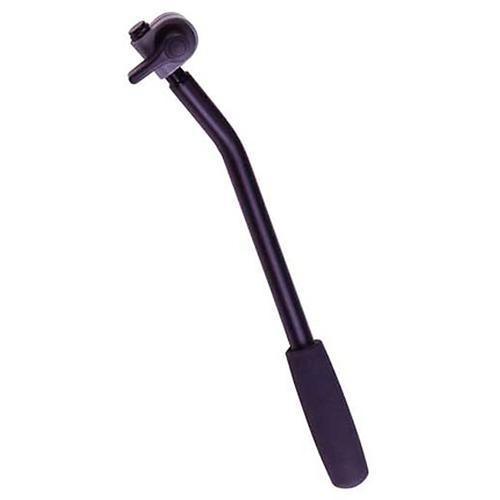

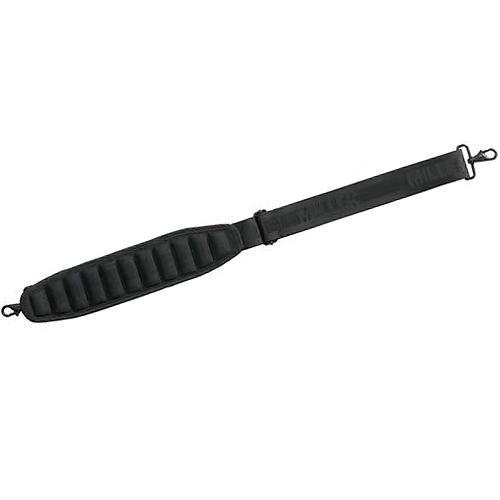

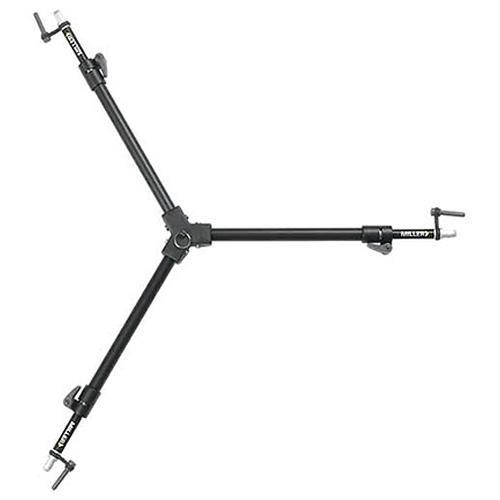

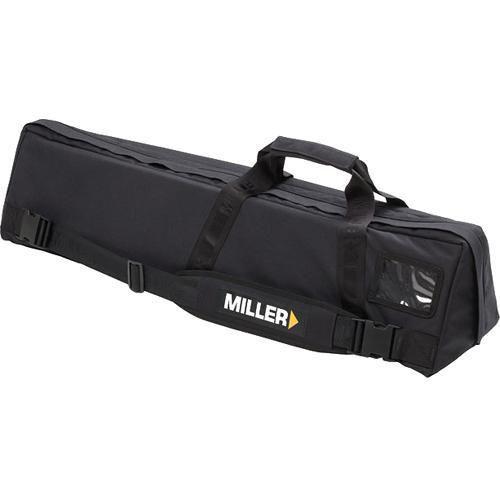

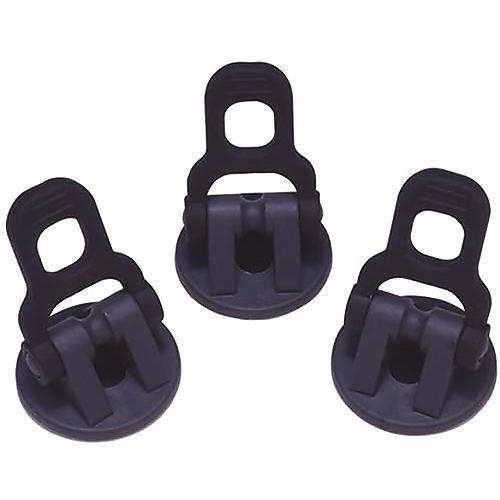

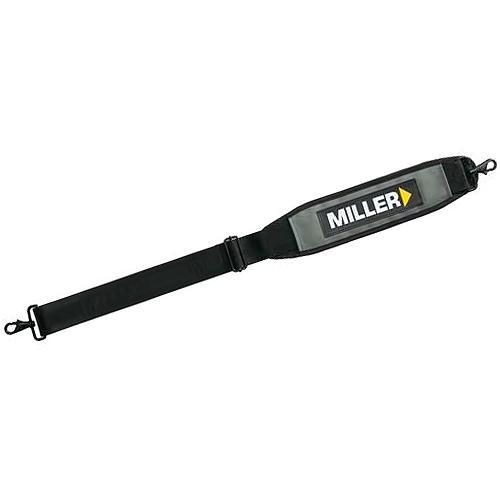

In the Box Miller DS-20 Aluminum Tripod System - consists of: DS-20 Fluid Head, DS 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 20 lbs DS-20 Fluid Head (#184) Aluminum Tripod Legs (#420) Adjustable Mid-Level Spreader (#512) Rubber Feet (#550) 1x Pan Bar (#680) Camera Mounting Plate (#489) with Screw Adapter Carriage (#493) Soft Carrying Case (#874) Carry Strap (#554) 2 Spare Screws (1/4"-20 and 3/8") Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller DS-20 Aluminum Tripod System - consists of: DS-20 Fluid Head, DS 2-Stage Tripod, Mid-Level Spreader and Softcase - Supports 20 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller DS-20 Specs | Load Capacity | 20 lbs (9.07 kg) | | Mount/Base | 75mm 3" Half Ball | | Balance Plate | Yes, +/- 60mm Sliding Range | | Pan & Tilt Range | 360°, +90/-70° | | Pan & Tilt Drag | Variable Dial | | Leveling Bubble/Illuminated | Yes / Non | | Material | Aluminum | | Leg Stages/Sections | 2/3 | | Minimum Height | 21.0" (53.34 cm) | | Maximum Height | 66.0" (167.64 cm) | | Folded Length | 33.0" (83.82 cm) | | Weight | 12.4 lbs (5.62 kg) | | | | Package Weight | 21.7 lb | | Box Dimensions (LxWxH) | 37.0 x 12.7 x 7.8" |
