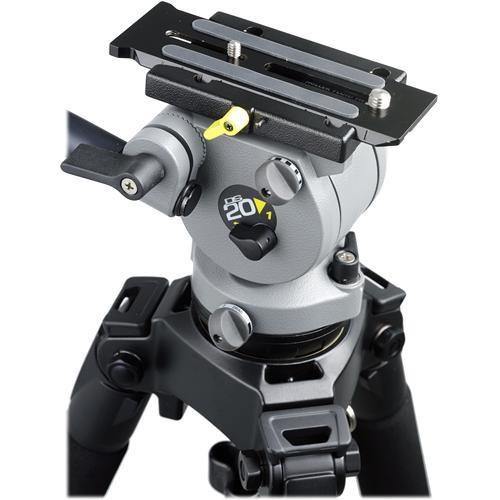

User Manual for Miller DS-20 Fluid Head Click to enlarge the picture
Contents of the user manual for the Miller DS-20 Fluid Head
- Product category: Video Tripod Heads Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Video Tripod Heads
|
User manual for the Miller DS-20 Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|
Product description The Miller DS-20 Fluid Head (75mm Ball Base) delivers the level of quality that is needed for professional ENG and corporate production. Features a dynamic fluid drag system providing consistent control across all temperature ranges and through a wide range of settings. It also offers an integrated counterbalance system combined with a sliding balance plate for a wide tilt angle, as well as a quick release and automatic locking system, for quick setup and disengagement of your camera. - Multi-Step Pan & Tilt Fluid Drag System
- The DS-20 fluid head incorporates Miller's Dynamic Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings. By being independent of payload weight, the dynamic system ensures smooth "starts" and dead "stops" for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leak-proof, low maintenance life.
- Preset Counterbalancing
- The DS-20 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity. The built-in preset counterbalance system combined with a 60mm sliding camera platform optimizes tilt control in the intended capacity range. Allowing a +90/-70° angle tilt without worrying that the camera will topple.
- Quick Release Camera Platform
- Fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing. The self-engaging action of the camera plate ensures rapid camera attachment in the field, while the built-in safety lock guarantees camera safety during setup and pull-down.
- Safe at any temperature
- Pressure or temperature does not influence the damping system; it has an operating range from -40°F to +149°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.
- Built-in bubble for horizontal leveling
In the Box Miller DS-20 Fluid Head (75mm Ball Base) 680 16mm Handle with Handle Carrier 489 Camera Mounting Plate 1/4"-20 Screw & Location Pin Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller DS-20 Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller DS-20 Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Miller 489 | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 75 mm Half Ball | | | | Drag Control | Continuous | | Vertical Tilt | +90
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
