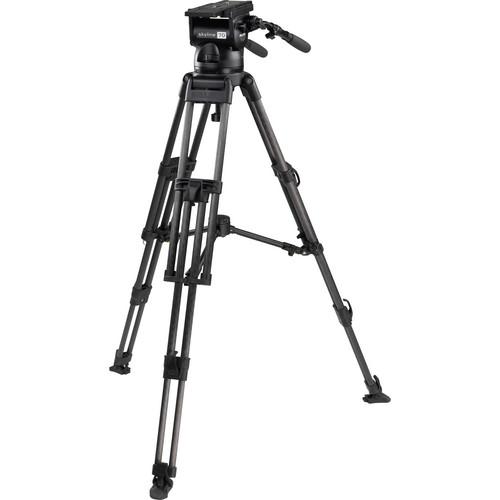

User Manual for Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System Click to enlarge the picture
Contents of the user manual for the Miller Skyline 70 Heavy-Duty 2-Stage Carbon
- Product category: Tripod Systems Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Tripod Systems
|
User manual for the Miller Skyline 70 Heavy-Duty 2-Stage Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|
Product description The Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System from Miller includes a 1050 Skyline 70 Fluid Head, 937 EFP Carbon Fiber 2-Stage Heavy-Duty Tripod Legs, 694 Telescopic Pan Handle with a Handle Carrier, 993 Mid-Level Spreader, and set of three 475 Rubber Feet Pads. This system features an advanced precision drag with soft take offs, smooth stops, and a well-balanced diagonal drag transition.
The Skyline 70 Tripod System also offers an 8-position counterbalance system that is controlled via a rear mounted, illuminated, all-in-one-location operating layout. With the strength and torsional rigidity of the lightweight carbon fiber HD tripod, the Skyline 70 system is quick and easy to set up and capture the action. - Skyline 70 Fluid Head The Miller Skyline 70 Fluid Head is a large capacity head with a 150mm ball. The ball size, an 8-position counterbalance system, and a 4.7" quick-release camera platform together afford a load capacity from 10 to 82.5 lbs. A Euro camera plate is included. Pan drag and tilt drag each also have 8 selectable positions (7+0), ranging from very light to heavy. Both pan and tilt drag feature a caliper disc brake system, and a quick-release tilt lock pin serve as the tilt lock for payload protection. Two telescopic handles are extendable from 15.4 to 23.2" each.
- 10 to 82.5 lb Load Capacity
-
- 150mm ball
- 8-position counterbalance system
- 4.7" quick-release camera platform
- Euro camera plate included
- 7+0 pan and tilt drag
- Pan and tilt drag caliper disc brake system
- Quick-release tilt lock pin
- Two telescopic handles extend from 15.4 to 23.2" each
937 EFP Carbon Fiber 2-Stage HD Tripod Legs (150mm Bowl) The Miller 937 EFP carbon fiber tripod offers 150mm bowl fixing and Quik-Lok leg locking for rapid setup, yet supports up to 200 lb (90.7 kg) and offers the utmost in strength and tortional rigidity. - Quik-Lok rapid, non slip clamping system, with self-adjusting brake mechanism for smooth, positive clamp action
- Split carry handle for balanced, safe carriage when the tripod is collapsed
Telescopic Pan Handle with Handle Carrier The Miller Telescopic Pan Handle with Handle Carrier is a 220mm extension handle compatible with the following fluid heads:
Arrow25, Arrow40, and Arrow50 100mm heads
Compass25 100mm head
Skyline 70 150mm head 993 Mid-level Spreader The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design. 475 Rubber Feet Pads for Select Tripods (Set of 3) The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader. In the Box Bundle Items Skyline 70 Fluid Head adracyqdvuarxctrscueadstbedc 937 EFP Carbon Fiber 2-Stage HD Tripod Legs (150mm Bowl) adracyqdvuarxctrscueadstbedc Telescopic Pan Handle with Handle Carrier 993 Mid-level Spreader 475 Rubber Feet Pads for Select Tripods (Set of 3) User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Skyline 70 Fluid Head
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Large Euro Plate | | Camera Mounting Screw | 2 x 3/8"-16 Male | | Balance Plate Sliding Range | 4.7" / 120 mm | | Safety Lock | Yes | | | | Base Mount | 150 mm Half Ball | | | | Drag Control | Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
