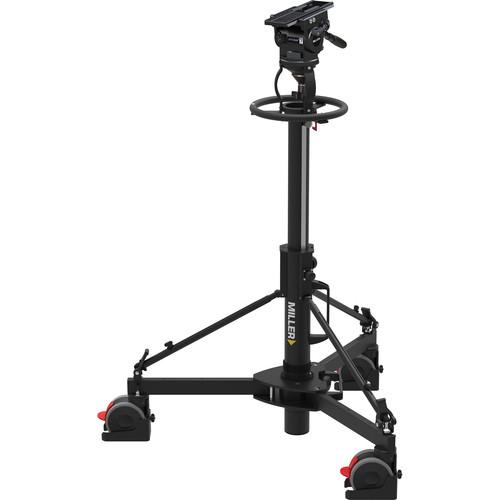

User Manual for Miller System Arrowx 7 Combo Live 30 Pedestal Click to enlarge the picture
Contents of the user manual for the Miller System Arrowx 7 Combo Live
- Product category: Pedestals Miller
- Brand: Miller
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miller Pedestals
|
User manual for the Miller System Arrowx 7 Combo Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miller product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miller user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miller product will considerably shorten its lifespan!
|
Product description Provided by third party: The 3260 Arrowx 7 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 972 mm (38.2") up to 1537 mm (60.5") with precise, smooth, low noise in-shot 450 mm (17.7") elevation stroke for payloads 6-25 kg (13.2-55.1 lbs).
Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking. With its sturdy construction it delivers maximum stability with reliable and simple to use features.
The 3260 comes fitted with Arrowx 7 fluid head which features a wide payload range, precision fluid drag and Miller's innovative 16 position CB Plus counterbalance system, Arrowx 7 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand. This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.
- Key Features
-
- 7 selectable positions of fluid pan and tilt drag + 0
- 16 position CB Plus counterbalance system
- Wide payload range 6-25 kg (13.2-55.1 lbs)
- Wideheight range 972 mm (38.2") up to 1537 mm (60.5")
- Precise, smooth and low noise In-shot column with 450 mm (17.7") stroke
- Air adjustable column system for quick payload balancing
- Independent dolly wheel axle brake system eliminates wheel tyre indents
- Multiple wheel positions for linear or radius dolly tracking
- 125 mm (4.9") dual ball bearing wheels for quick swivel-turn action
- Center hub locking column with adjustable spider arm supports
- Steering wheel diameter 294 mm (11.6")
- Dolly tracking width 970 mm (38.2")
- Sturdy adjustable cable guards
- Portable hand pump with pressure gauge
Table of Contents
|
Upload User Manual
Have you got an user manual for the Miller System Arrowx 7 Combo Live 30 Pedestal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiller 3260 Specs | | | Product Type | Pedestal | | Weight | 48.06 lbs | | | | Tripod Center Column Travel | 17.7 in | | Max Operating Height | 61 in | | Min Operating Height | 38 in | | Max Supported Weight | 55.1 lbs | | Supported Devices | Camcorder | | Video Head Bowl | 100 mm | | Features | Built-in fluid system | | | | Package Weight | 54.4 lb | | Box Dimensions (LxWxH) | 35.25 x 20.5 x 14.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
