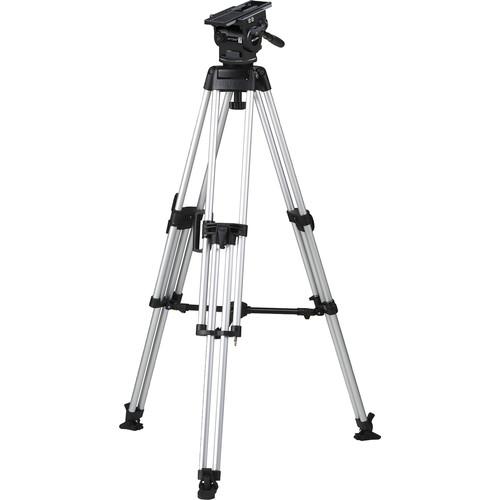

Product description The Miller System ArrowX 7 HD Single Stage Aluminum Alloy Tripod System includes the ArrowX 7 Fluid Head, Heavy-Duty Single Stage 100mm Aluminum Tripod, 475 Tripod Feet, 993 Mid-Level Spreader, and the 696 Telescopic Pan Handle with Carrier.
With a 13.2 to 55.1 lb payload range and 7 + 0 selectable pan-tilt fluid drag positions, the ArrowX 7 Fluid Head is suitable for EFP, studio, and field broadcast applications. It also features precision fluid drag and a 16-position CB Plus counterbalance system. The 931 HD Single Stage Tripod is made from aluminum alloy and features a 100mm bowl design. It offers a maximum payload of 210 lb and comes with a split inline carrying handle. The tripod also features adjustable flip locks for quick setup and easy maintenance. The three snap-on 475 Rubber Tripod Feet are designed to be used in any situation where the integrated dual spiked feet are not optimal. The 993 Mid-Level Spreader for Sprinter, Arrow 25/40, and HD tripod systems offers variable height setting adjustments with a latch and swivel design. The Telescopic Pan Handle with Carrier features black anodized aluminum tubing and is made from aluminum alloy and rubber. - Arrowx 7 Fluid Head The Arrowx 7 Fluid Head from Miller is suitable for EFP, Studio, and Field OB applications. It offers a 13.2 to 55.1 lb payload range and seven selectable pan-tilt fluid drag positions. It features precision fluid drag with a 16-position CB Plus counterbalance system. CB Plus is a sequential counterbalance design, featuring eight larger counterbalance steps that allow you to quickly and efficiently achieve the required counterbalance position. The system's one flick switch located at the front of the head adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.
- Compact, lightweight, and versatile
- 7-step plus zero pan and tilt drag
- 16-position CB Plus counterbalance system
- Wide payload range of 13.2 to 55.1 lb
- Fluid drag system with smooth start and soft stop technology and balanced diagonal transitions
- Controls all-in-one design for fast, easy and practical use
- Illuminated bubble level and pan-tilt drag controls
- Precise floating pan-tilt caliper locks ensure bounce-free on-off performance
- Quick-release, 120mm sliding camera platform with Euro-style camera plate
- Removable 100mm ball leveling with three 3/8" holes for flat base mounting
- Robust construction for rugged outdoor shooting conditions
- Optional second pan handle mount
- Side mounting points for viewfinders and accessories
- 475 Rubber Feet Pads for Select Tripods (Set of 3) The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
- 993 Mid-level Spreader The Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.
- Telescopic Pan Handle with Carrier (Black)
- Key Features
-
- Supplied with black handle carrier
- Durable black anodized aluminum tubing
- Material alloy/rubber
- 931 HD Single Stage Tripod (100mm Bowl) The Miller 931 HD Single Stage Tripod (100mm Bowl) tripods are designed with single or two-stage legs, and made of aluminum alloy or carbon fiber material. Offers a 100 or 150mm bowl fixing, attached to a ball-leveling mount that ensures bowl-to-leg fastening, resists loosening and eliminates joint instability. Innovated Quick-Lock locking mechanism, lets you set up the tripod within seconds. These heavy-duty tripods offer utmost strength and tortional rigidity to take the full ENG/EFP workload providing optimum security when supporting studio camera configurations.
- Heavy-duty aluminum alloy construction
- Quick-Lock rapid, non slip clamping system, with self-adjusting brake mechanism for smooth, positive clamp action
- Maximum height of 62.0-inch
- Split carry handle, splits apart for set up and combines for balanced, safe carriage when the tripod is collapsed
In the Box Bundle Items Arrowx 7 Fluid Head dbvsteczyucsfratuytawqwebeazvcrswuwu 475 Rubber Feet Pads for Select Tripods (Set of 3) 993 Mid-level Spreader Telescopic Pan Handle with Carrier (Black) 931 HD Single Stage Tripod (100mm Bowl) User Manual PDF 11.9mb Table of Contents
|
