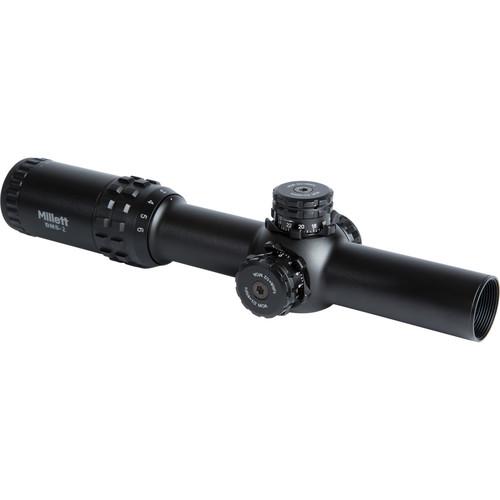

User Manual for Millett 1-6x24 DMS-2 Designated Marksman Riflescope Click to enlarge the picture
Contents of the user manual for the Millett 1-6x24 DMS-2 Designated Marksman Riflescope
- Product category: Riflescopes Millett
- Brand: Millett
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Millett Riflescopes
|
User manual for the Millett 1-6x24 DMS-2 Designated Marksman Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Millett product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Millett user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Millett product will considerably shorten its lifespan!
|
Product description Millett's' 1-6x24 DMS-2 Designated Marksman Riflescope is a versatile optic for short-to-medium range shooting with bright and clear optics and a rugged housing. Its optical system features fully multi-coated lenses, 1-6x magnification, and a 24mm objective aperture that delivers clear and bright images. Also noteworthy is the 2nd focal plane BRC-1 illuminated reticle that offers three tapered posts, a bright illuminated target horseshoe, and a system of illuminated holdover dots out to 500 yd. To compensate for ballistic drops and winds, the scope provides a 90 MOA windage and elevation range with 1/2 MOA click values. With a long 3.5" eye relief, you will get plenty of space for a comfortable aiming position.
The aluminum housing provides water-resistant, fogproof, and shock-resistant performance. It features a 30mm diameter maintube, capped finger-operated windage and elevation turrets, and a knurled eyepiece. - BRC-1 Reticle
-
- 2nd focal plane
- Three tapered posts
- Red illuminated target horseshoe
- Red illuminated center dot
- Illuminated holdover points from 5 to 500 yd
- 11 brightness levels
- Optical Performance
-
- 1 - 6x zoom magnification
- 24mm diameter objective lens
- Fully multi-coated optics
- 3.5" eye relief
- Use and Handling
-
- 1/2 MOA click values
- 90 MOA windage and elevations adjustment
- Construction Details
-
- 30mm maintube diameter
- Lightweight and durable aluminum housing
- Knurled windage/elevation, eyepiece and brightness adjustments
- Water-resistant and fogproof
- Impact-resistant
UPC: 094092816243 In the Box Millett 1-6x24 DMS-2 Designated Marksman Riflescope (BRC-1 Illuminated Reticle, Matte Black) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Millett 1-6x24 DMS-2 Designated Marksman Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMillett BK81624 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Exit Pupil Diameter | 1x: 24 mm
6x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | BRC-1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | | | Water Resistance | Water Resistant | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.5" / 266.7 mm | | Weight | 20.7 oz / 588 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.016 x 4.016 x 2.992" |
