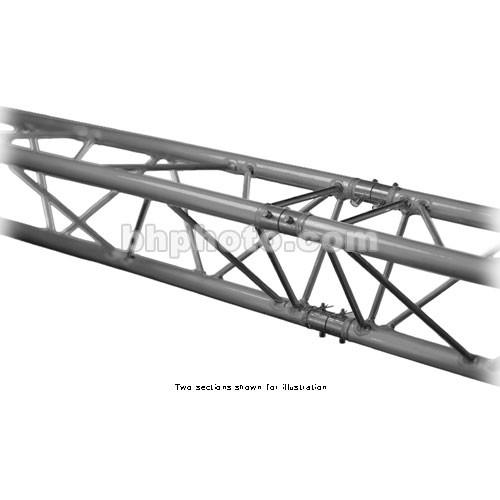

User Manual for Milos M222 Trio Truss Straight Section - 500mm Click to enlarge the picture
Contents of the user manual for the Milos M222 Trio Truss Straight Section
- Product category: Truss Segments Milos
- Brand: Milos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Milos Truss Segments
|
User manual for the Milos M222 Trio Truss Straight Section contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Milos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Milos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Milos product will considerably shorten its lifespan!
|
Product description A Truss System is a modular aluminum frame that is used to mount lighting fixtures and audio equipment such as microphones and speakers over the performing area in the studio, onstage, or at trade shows. Depending on the anticipated total equipment load, a choice between a Milos QuickTruss DUO (2 Truss Tubes) or a TRIO (3 Truss Tubes) may be made. The Milos QuickTruss M222 System offers great weight loading capabilities despite its small size and light physical weight. Considering this, M222 is ideal for retail, trade show and decorative applications. Connection is fast and simple, using a Conical Connector system with Pins and R-Clips (available separately). This is a 500mm (1.5') 3- bar straight section. Order them in pairs for your custom configuration, or order one of the B&H kits available HERE. - Connection is fast and simple, using a Conical Connector system with tapered Pins and R-Clips.
- All truss ends are fitted with precision CNC machined receivers and braced with horizontal end spars to provide a durable construction perfect for continuous use in harsh environments.
- The common connection method enables sections to be joined to any other components in the appropriate range without any problem, using your rubber or plastic mallet (Curve to Curve, Curves to Straight, Junctions, Base Plates, etc.).
In the Box Milos M222 Trio Truss Straight Section - 500mm 3 x Conical Connectors (CCM) 6 x Pins (PM) 6 x Safety Clips (SRPM) Lifetime Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Milos M222 Trio Truss Straight Section - 500mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMilos STM500 Specs | Dimensions | STM500: 1.6'L x 8.75 x 7.75 x 6.5" (50 x 22.2 x 19.5 x16.4cm)
Each Truss Pipe: 1.25" Diameter (32cm) | | Weight | 3 lb (1.4kg) | | Weight Capacity | Point Load, 9.8': 282 lb (128kg)
Distribution Load, 9.8': 102 lb per ft (152kg per m) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 20.0 x 9.0 x 8.0" |
