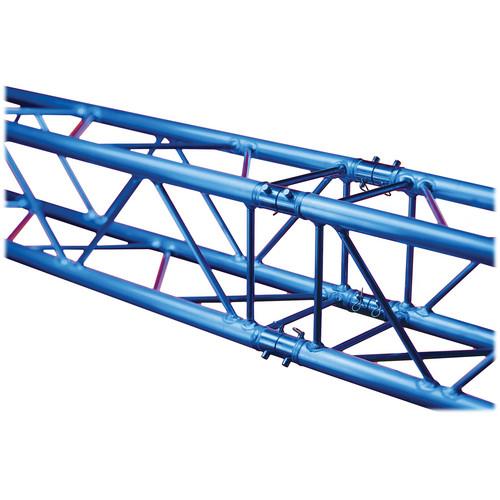

User Manual for Milos QUATRO QTM2000 Straight Truss Section Click to enlarge the picture
Contents of the user manual for the Milos QUATRO QTM2000 Straight Truss Section
- Product category: Truss Segments Milos
- Brand: Milos
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Milos Truss Segments
|
User manual for the Milos QUATRO QTM2000 Straight Truss Section contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Milos product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Milos user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Milos product will considerably shorten its lifespan!
|
Product description The Milos QUATRO QTM2000 Straight Truss Section is part of the M222 truss system which is the heart of entertainment and display structures worldwide. The sturdy aluminum truss section is 6.56' (2.0 m) long and weighs 15.42 lb (7.0 kg). In the Box Milos QUATRO QTM2000 Straight Truss Section Lifetime Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Milos QUATRO QTM2000 Straight Truss Section in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMilos QTM2000 Specs | Material | Alloy EN - AW 6060 T5 | | Dimensions | Length: 6.56' (2.0 m)
Tubes: 1.25 x 0.063" (32 x 1.5 mm)
Braces: 0.375 x 0.063" (10 x 1.5 mm)
Each side of section:
From exterior of tube 8.75" (222 mm)
From tube centers: 7.5" (190 mm) | | Load Capacity | Point load: 533.52 lb (242 kg)
Two point load: 809.10 lb (367 kg)
Distributed load (UDL) in lb/ft (kg/m): 276 lb (185.44 kg)
Total distributed load (UDL) in lb (kg): 1216.95 lb (552 kg) | | Deflection | Deflection inches/mm:
Point load: 0.08" (2.0 mm)
Two point load: 0.08" (2.0 mm)
Distributed load (UDL): 0.08" (2.0 mm) Total distributed load (UDL): 0.20" (5.0 mm) | | Weight | @ 7.71 lb (3.5 kg) per 3.26' (1.0 m): 15.42 lb (7.0 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 79.0 x 9.0 x 9.0" |
