User Manual for Minox 1-8x24 ZP8 TAC Riflescope Click to enlarge the picture
Contents of the user manual for the Minox 1-8x24 ZP8 TAC Riflescope
- Product category: Riflescopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Riflescopes
 |
User manual for the Minox 1-8x24 ZP8 TAC Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|

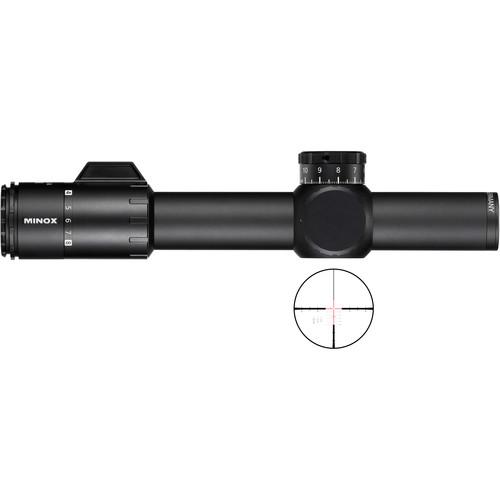

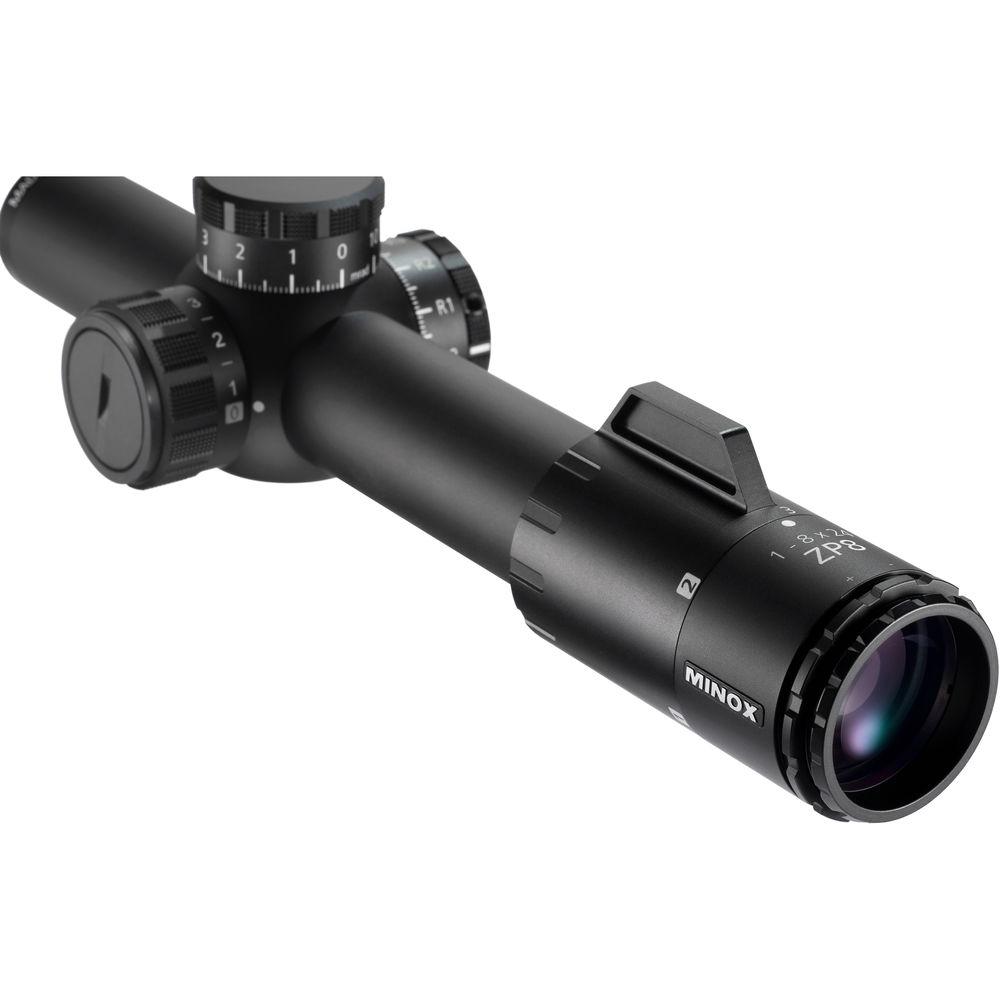

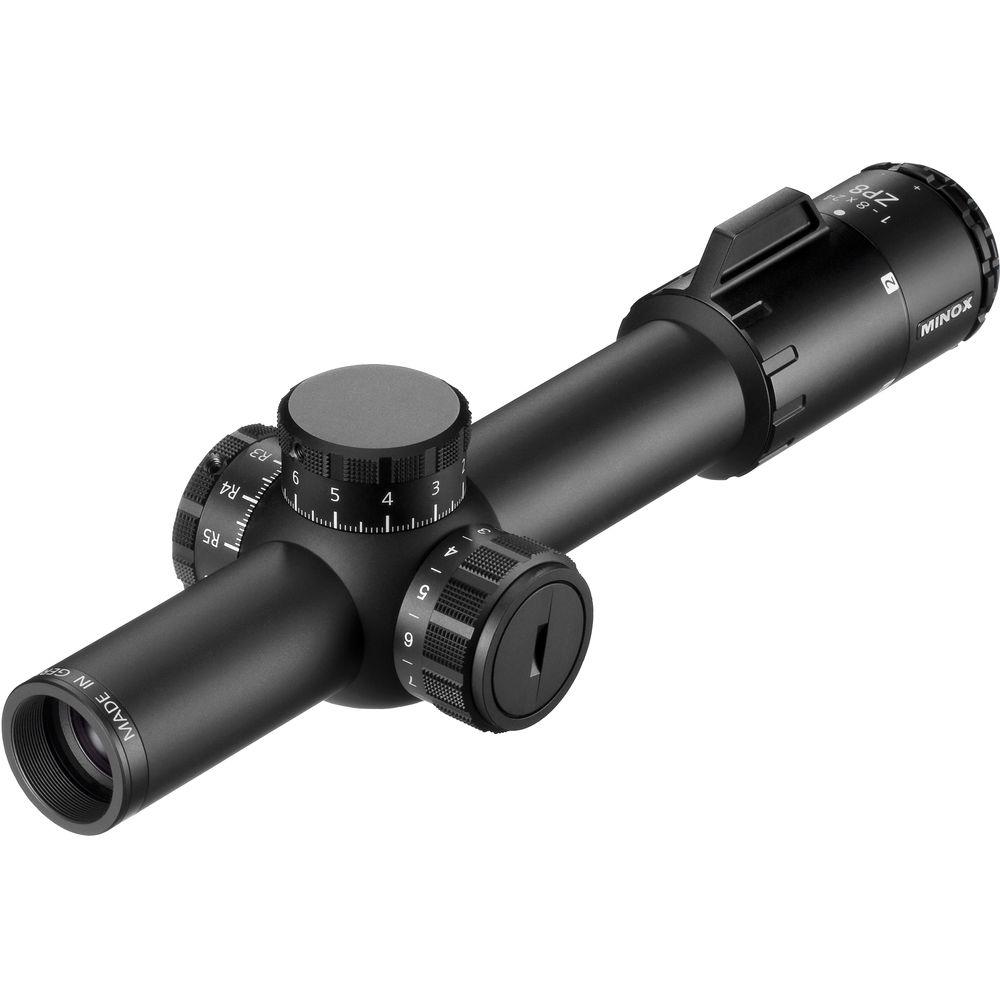

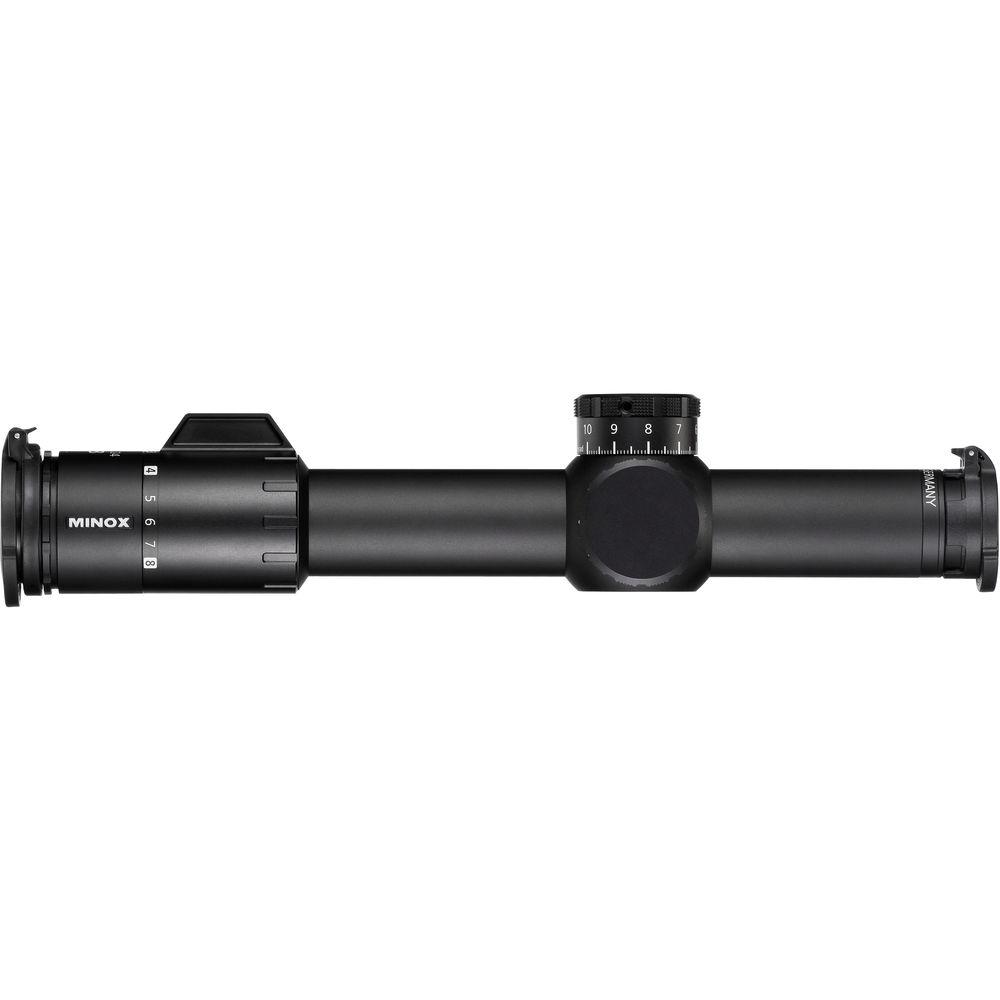

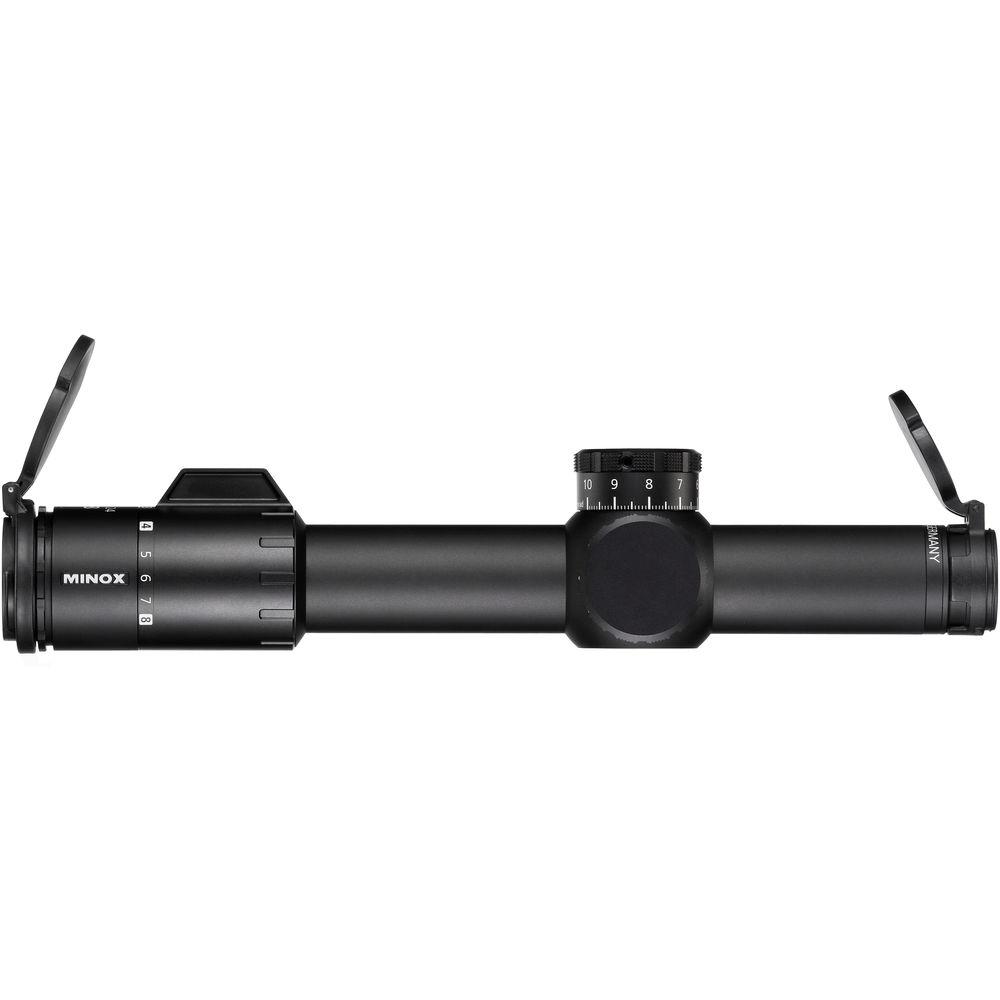

Product description Minox engineered the 1-8x24 ZP8 TAC Riflescope to meet the strictest demands of tactical professionals and competitive shooters. To emphasize its goals, Minox outfitted the scope with a rugged and submersible housing, optics that are cut out from high-quality SCHOTT glass, and a precision illuminated reticle. For maximum performance, the lenses are coated with the proprietary MINOTEC multiple anti-reflection coatings that increase image brightness, clarity, and resolution.The MR10+ reticle with CCR system offers a unique combination of a 2nd focal plane daylight reticle with an illuminated red dot and a 1st plane twilight reticle with an illuminated crosshair. The two reticles share the same pattern and interchange while you zoom past the 2.5x zoom factor. Their patterns feature three posts and thin crosshair with a 1 MRAD empty center space and an ultra-fine floating center dot. To help you with instant windage and ballistic compensations, the reticle offers a grid of dots and a broken-line crosshair with 1 MRAD intervals. At the 5 MRAD holdover, the crosshair has a 2 MRAD horizontal reference line. For added precision when making shots, the scope is parallax-free out to 219 yards. To help you account for wind and ballistic bullet drop, the riflescope provides ±10 MRAD windage and elevation adjustment ranges and a 0.1 MRAD per click impact point correction.The scope's impact-resistant aluminum housing features a 34mm maintube, which is filled with argon for a fogproof and waterproof performance. The overall design provides a solid and durable construction with precision capped turrets and a long and wide fast focus lever. Making adjustments is easy thanks to the knurling with extra-fine texture that provides excellent traction under your fingertips. - Optical Performance
-
- 1-8x magnification
- High-quality SCHOTT glass elements
- MINOTEC multi-coated optics increase image brightness, resolution, and clarity
- Field of view at 100 yd: 112.5-14.4'
- Two MR10+ Illuminated Reticles
-
- CCR reticle system:
- Illuminated red dot in the 2nd focal plane
- Illuminated red crosshair in the 1st plane
- 1-2.5x: Illuminated center dot is activated; crosshair is off
- 2.5-8x: Illuminated crosshair is activated; center dot is off
- Reticles switch automatically during zooming

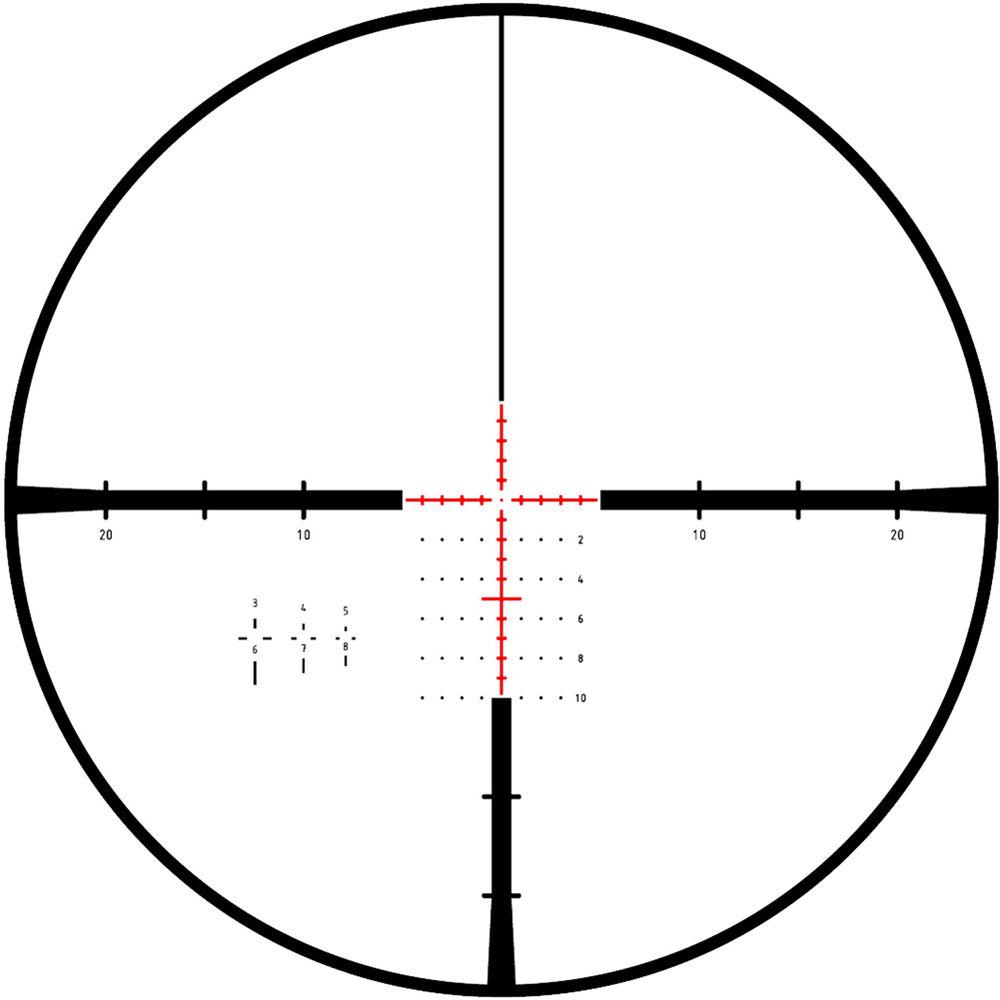

- Reticle pattern:
- Three tapered posts and an illuminated crosshair with 2 MRAD hash marks on the horizontal plane and upper vertical plane with 1 MRAD hash marks on the lower vertical plane
- 1 MRAD empty center with a floating dot for low target coverage
- Reference grid for instant range and wind compensation
- Marks on horizontal posts for tracking moving targets
- 2 MRAD-wide lateral line on 5 MRAD holdover mark
- Auto-off after 3 hours of constant operation
- 9 brightness levels
- Use and Handling
-

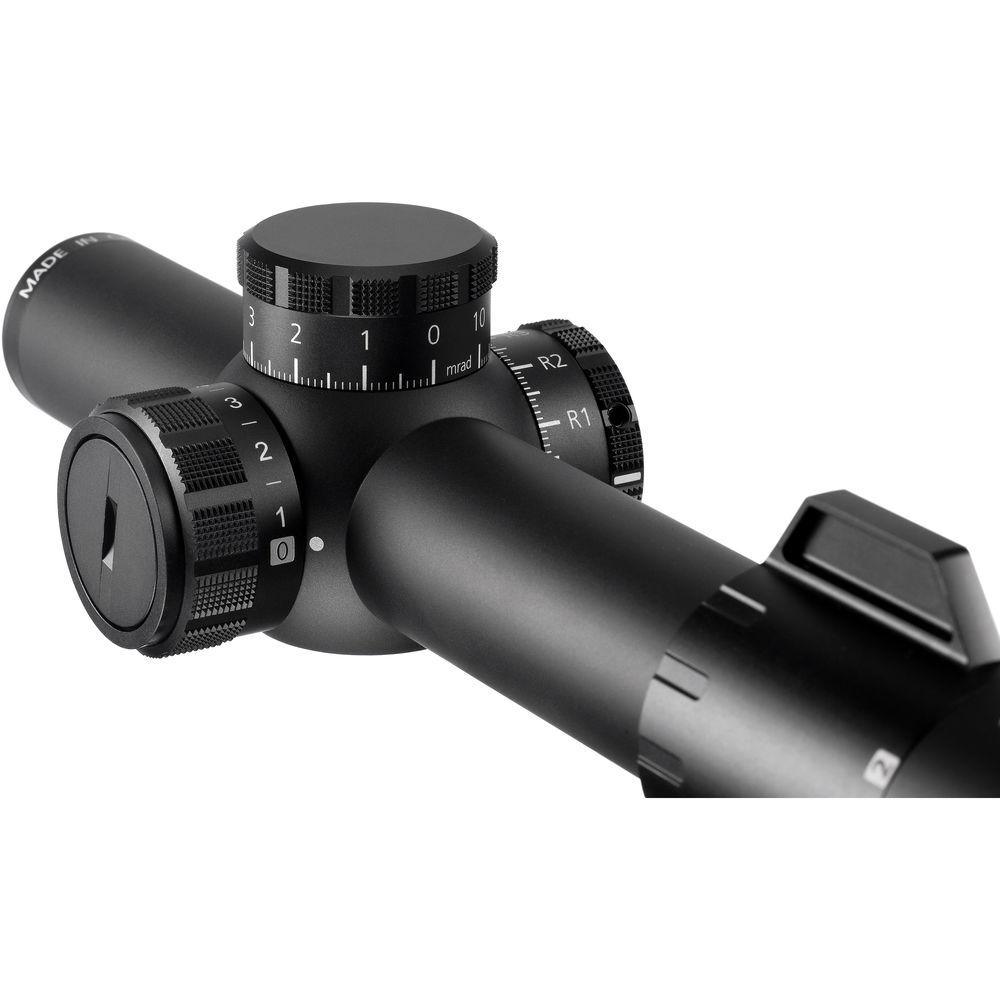

- 0.1 MRAD impact point correction per click
- 10 MRAD windage and elevation ranges
- Eye relief: 3.5"
- Exit pupil: 10.3-3mm
- Construction Details
-
- 34mm maintube
- High-grade aluminum housing
- Smooth rubberized eyepiece
- Smooth focusing ring with oversized zoom lever
- Capped adjustment turrets with scales and extra-fine non-slip textures
- Shock-resistant construction
- Argon-filled fogproof
- Waterproof
In the Box Minox 1-8x24 ZP8 TAC Riflescope (MR10+ Illuminated Reticle) - CR-2032 Battery
- Eyepiece Lens Cap
- Lens Cloth
- Limited Lifetime Warranty with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 1-8x24 ZP8 TAC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66590 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 112.5' @ 100 yd / 37.5 m @ 100 m
8x: 14.4' @ 100 yd / 4.8 m @ 100 m | | Exit Pupil Diameter | 1x: 10.3 mm
8x: 3 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +2.5 | | | | Reticle Type | MR10+ Reticle (First Focal Plane, Second Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 10 MRAD | | Elevation Adjustment | 10 MRAD | | Parallax Correction | Yes, 219 yd / 200 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.6" / 295 mm | | Weight | 24.5 oz / 695 g |
