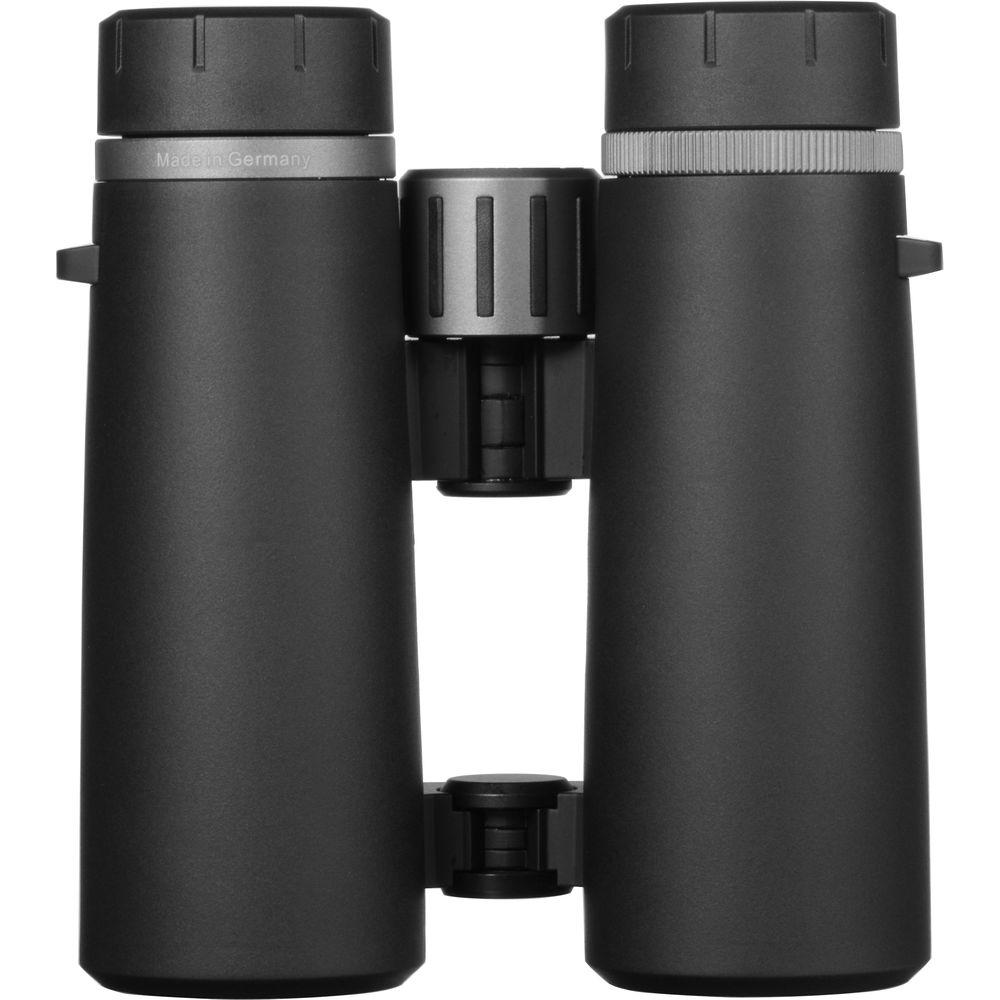

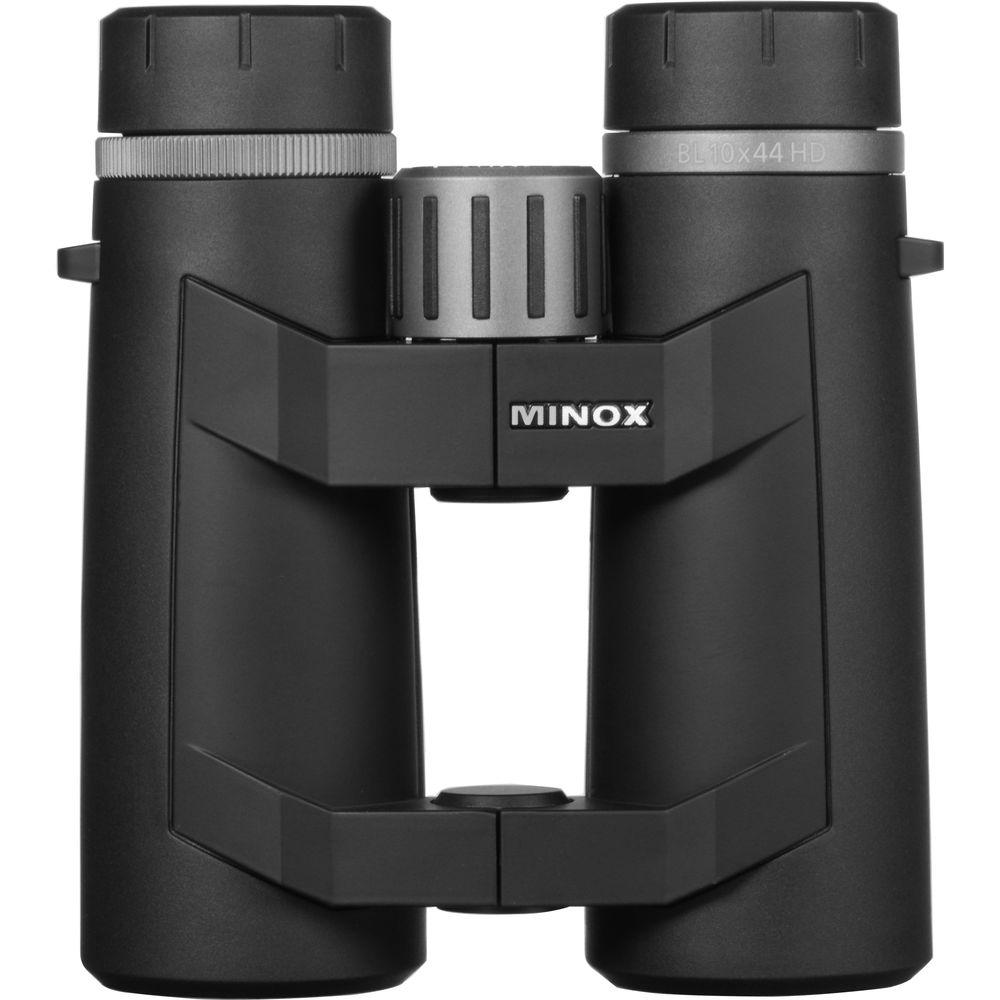

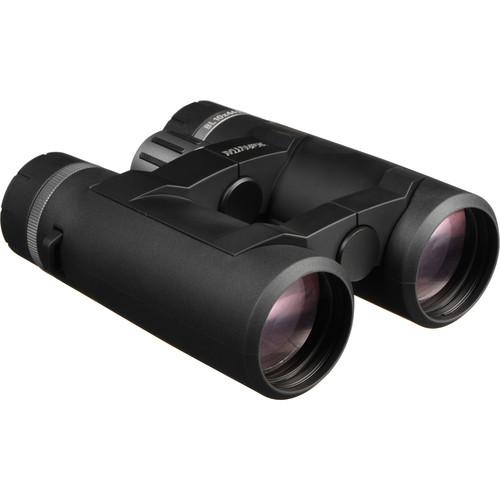

User Manual for Minox 10x44 BL-HD Series Binocular v.2 Click to enlarge the picture
Contents of the user manual for the Minox 10x44 BL-HD Series Binocular v.2
- Product category: Binoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Binoculars
 |
User manual for the Minox 10x44 BL-HD Series Binocular v.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More This second version of Minox's 10x44 BL-HD Series Binocular combines phase-corrected prisms, high density (HD) glass, anti-reflective multi-coated optics, and anomalous partial dispersion (APD) lens elements, to create an optical system with well-rounded performance in all light conditions. The phase-corrected roof prisms and HD glass increase resolution and contrast, while the APD elements reduce chromatic aberration, that produce clear and bright images with true color representation across the entire field of view without distortion.Its lightweight polycarbonate housing reduces fatigue from long use while being impact, temperature, and corrosion-resistant. An open-bridge configuration further cuts the weight, while providing a sure grip whether you're using them with one hand or two. The optical tubes are nitrogen-filled and o-ring sealed for fogproof performance and they are rated to be submersible to 16 feet. Twist-up eyecups let you customize the eye relief whether you wear glasses or not. - Optical Performance
-
- 10x magnification
- 44mm objective lenses
- Phase-corrected roof prisms for increased image resolution and contrast
- High Density (HD) glass increases image color, contrast, resolution, and brightness
- Anomalous partial dispersion lens elements reduce chromatic aberration for truer color representation
- Wide 65° apparent angle of view
- Long 17mm eye relief
- Comfortable 4.4mm exit pupil
- Use and Handling
-
- Knurled center focus wheel
- ±4 right-eye dioptric adjustment for crisp focusing
- Open-bridge design reduces weight and provides a more secure hold
- Twist-up eyecups allow for comfortable use with or without eyewear
- Construction Details
-
- Temperature, impact and corrosion-resistant polycarbonate housing
- Nitrogen-filled, water and fogproof, submersible to 16'
- Rubber exterior coating provides sure-grip in wet or cold conditions, and protects against impacts
- Operating temperature range: 14 to 122°F (-10 to 50°C)
- Weight: 26.1 ounces
- Made in Germany
In the Box Minox 10x44 BL-HD Series Binocular v.2 Case Neoprene Carry Strap Limited 30-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 497.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 10x44 BL-HD Series Binocular v.2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62236 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 44 mm | | Angle of View | 6.5° (Actual) | | Field of View | 341.2' @ 1000 yd / 113.7 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 4.4 mm | | Eye Relief | 17 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.9 x 5.1 x 2.1" / 15.0 x 13.0 x 5.3 cm | | Weight | 26.1 oz / 739.9 g | | | | Package Weight | 2.39 lb | | Box Dimensions (LxWxH) | 8.1 x 6.35 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
