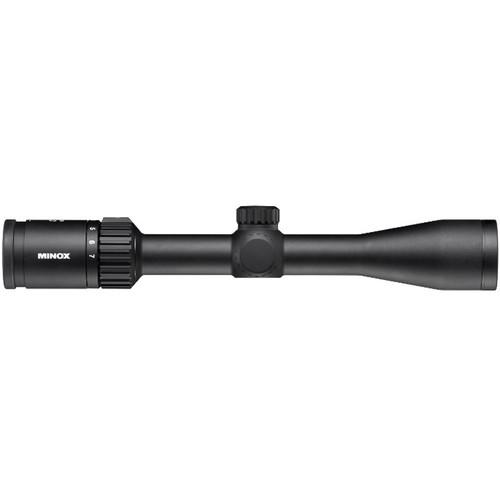

User Manual for Minox 2-7x35 ZL3 Riflescope Click to enlarge the picture
Contents of the user manual for the Minox 2-7x35 ZL3 Riflescope
- Product category: Riflescopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Riflescopes
|
User manual for the Minox 2-7x35 ZL3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description Designed for sports shooters and hunters, the Minox 2-7x35 ZL3 Riflescope offers great optical performance, combined with quality and durability. Its optical system features fully multi-coated lenses for bright, clear, and high-contrast images. In the second focal plane is the Plex reticle, featuring four tapered posts and a crosshair.
To match the quality of the optics, the impact-resistant aluminum housing offers a 1" maintube, filled with nitrogen for fogproof and waterproof performance (submersible to 3.3'). The overall design provides a solid and durable construction with a low-profile zoom lever and flat capped windage and elevation turrets with a 100 MOA adjustment range and 1/4 MOA clicks. - Optical Performance
-
- 2 - 7x magnification
- 35mm objective lens
- Fully multi-coated lenses
- Field of view at 100 yd: 60 - 17.7'
- Exit pupil: 12.0 - 5.0 mm
- Plex Reticle
-
- 2nd focal plane
- Four tapered posts
- Thin crosshair
- Use and Handling
-
- 1/4 MOA impact point correction
- 100 MOA windage and elevation ranges
- 3.3" eye relief
- Construction Details
-
- 1" maintube
- Aluminum housing
- Knurled focusing ring with a low-profile lever
- Flat capped adjustment turrets with non-slip knurling
- Nitrogen-filled, fogproof
- Shock-resistant
- Waterproof to 3.3'
In the Box Minox 2-7x35 ZL3 Riflescope (Plex Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 2-7x35 ZL3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66658 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 35 mm | | Field of View | 2x: 60' @ 100 yd / 20 m @ 100 m
7x: 17.7' @ 100 yd / 5.9 m @ 100 m | | Exit Pupil Diameter | 2x: 12 mm
7x: 5 mm | | Eye Relief | 3.3" / 85 mm | | Diopter Correction | -2.0 to +1.5 | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | | | Water Resistance | Waterproof to 3.3' / 1 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.9" / 30 cm | | Weight | 13.7 oz / 390 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
