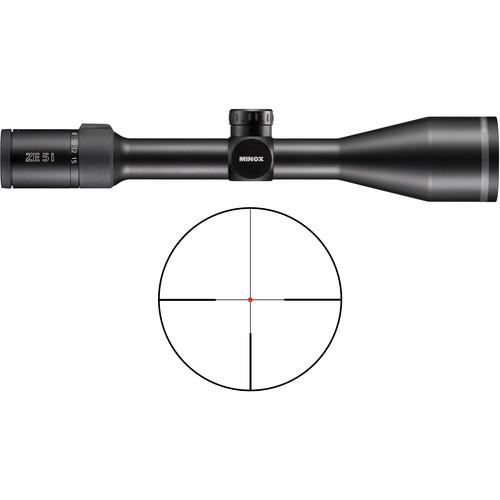

User Manual for Minox 3-15x56 ZE5.2i SF Riflescope Click to enlarge the picture
Contents of the user manual for the Minox 3-15x56 ZE5.2i SF Riflescope
- Product category: Riflescopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Riflescopes
|
User manual for the Minox 3-15x56 ZE5.2i SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description Minox's 3-15x56 ZE5.2i SF Riflescope offers shooters the familiar 5x optical design along with some optical enhancements for faster and more precise target acquisitions. You will find reassuring to know that its lenses are crafted from high-tech optical glass and treated with the proprietary MINOTEC multi-coatings, which together produce bright, clear, and high-contrast images. This ZE5.2i version brings shooters another level of viewing comfort and speed with its Fast Target Acquisition (FTA) feature. The FTA is an optimization of optical design that reduces strain and stress on the eye and allows you to make faster and more accurate target acquisitions. It accomplishes this by increasing exit pupil and sufficiently reducing aberrations, color fringing, and vignetting, which results in bright and high-contrast images with a field of view free of shadows.
Another highlight of this optic is its legendary German #4 Reticle (SPF), enhanced with the Glass Fiber Point illumination system. The well-known pattern, consisting of three posts and a thin crosshair, is augmented with a partially ground glass fiber tip at the center of the crosshair that generates a uniform target dot with a brilliant red color, visible in most lighting conditions. The LED light source is coupled to a rheostat that has eight brightness levels and sensors that turn off the illumination after two hours of inactivity or when your firearm is inclined.
To match the quality of optics, the opto-mechanics follow suit. The impact-resistant aluminum housing offers a strong 30mm maintube, filled with argon for a fogproof and waterproof performance, submersible to 16.4'. The overall design provides a solid and durable construction with flat capped turrets and an eyepiece with a low-profile zoom lever. - Optical Performance
-
- 3 - 15x magnification
- Wide 56mm objective lens
- High-tech special optical glass
- MINOTEC anti-reflective multi-coatings
- Fast Target Acquisition (FTA) design reduces eye strain and improves image quality
- Field of view at 100 yd: 35.7 - 7.8'
- Exit pupil: 11.4 - 3.7mm
- German #4 Reticle
-
- 2nd focal plane
- Three tapered posts
- Thin crosshair
- Brilliant red target dot
- Glass Fiber Point LED illumination produces even bright dot, visible in any lighting conditions
- Eight brightness levels
- Auto off after two hours of inactivity or inclined position
- Use and Handling
-
- 1cm impact point correction
- 120cm windage and elevation ranges
- 3.9" eye relief
- Construction Details
-
- 30mm maintube
- Aluminum housing
- Knurled focusing ring with a low-profile lever
- Flat capped adjustment turrets with non-slip knurling
- Compartment for two batteries
- Argon-filled, fogproof
- Shock-resistant
- Waterproof to 16.4'
In the Box Minox 3-15x56 ZE5.2i SF Riflescope (German #4 Reticle, Matte Black) CR-2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 3-15x56 ZE5.2i SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66623 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 35.7' @ 100 yd / 11.9 m @ 100 m
15x: 7.8' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 3x: 11.4 mm
15x: 3.7 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -3.0 to +2.5 | | | | Reticle Type | German #4 Reticle (Second Focal Plane) | | | | Water Resistance | Waterproof to 16.4' / 5 m | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 26.8 oz / 760 g |
