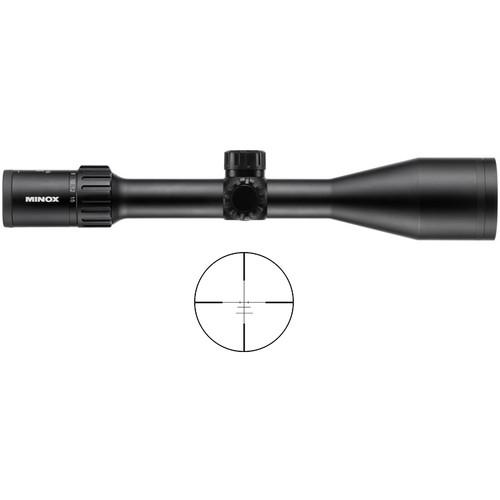

Product description Minox engineered the 3-15x56 ZX5i SF Riflescope to meet the demands of precision shooters and hunters. To emphasize its goals, Minox outfitted the scope with optical elements that are made out of superior optical quality, Schott glass, and feature proprietary MINOTEC multi-coated surfaces that increase image brightness, clarity, and resolution. The BDC reticle is located on the second focal plane and features four medium tapered posts and a thin crosshair with BDC markings out to 400 yards. The entire reticle is illuminated (including its crosshair and posts) with a brilliant red color. It brightness control offers eleven brightness levels and an automatic off function after three hours of continuous operation. For added precision when making shots, the parallax can be adjusted via a side focus from 54.7 yards to infinity. To account for wind and ballistic bullet drop, the riflescope offers 40 MOA of windage and elevation adjustment ranges and a 1/4 MOA per click impact point correction.
The scope's impact-resistant aluminum housing features a 30mm maintube, which is filled with argon for superior fogproof and waterproof performance. The overall design provides a solid and durable construction with precision capped turrets. - Optical Performance
-
- 3-15x magnification
- 56mm objective lens diameter
- MINOTEC multi-coated optics
- Field of view at 100 yd: 35.7-7.8'
- BDC Illuminated Reticle
-
- 2nd focal plane
- Four medium tapered posts
- Thin crosshair with BDC marking that range out to 400 yd
- 11 brightness levels with intermittent off mode
- Battery-saving auto off function after 3 hours
- Subtensions set at 15x
- Post thickness: 0.5 MOA, 0.4 cm at 100 m
- Crosshair thickness: 0.1 MOA, 0.4 cm at 100 m
- Center gate width: 6.7 MOA, 19.6 cm at 100 m
- 100 yard mark: 1.2 MOA, 3.5 cm at 100 m
- 300 yard line: 2.0 MOA, 5.8 cm at 100 m
- 400 yard line: 4.4 MOA, 12.8 cm at 100 m
- 500 yard line: 7.1 MOA, 20.7 cm at 100 m
- 600 yard line: 10.1 MOA, 29.3 cm at 100 m
- 700 yard line: 13.3 MOA, 38.8 cm at 100 m
- 800 yard line: 17.0 MOA, 49.6 cm at 100 m
- Ballistic data for BDC (.300 Win. Mag. )
- Bullet weight 180 gr.
- Ballistic coefficient 0,507
- Muzzle velocity 2950 ft/s
- Sight height 2.0 inches
- Use and Handling
-
- 1/4 MOA impact point correction per click
- 40 MOA windage and elevation ranges
- Eye relief: 3.9"
- Exit pupil: 11.4-3.7 mm
- Construction Details
-
- 30mm maintube
- Aluminum housing
- Smooth rubberized eyepiece
- Smooth focusing ring with a low-profile lever
- Capped adjustment turrets with extra-fine non-slip texture
- Argon-filled fogproof
- Waterproof
In the Box Minox 3-15x56 ZX5i SF Riflescope (BDC Illuminated Reticle) - CR-2032 Battery
- Lens Cloth
- Limited Lifetime Warranty with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 3-15x56 ZX5i SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66613 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 35.7' @ 100 yd / 11.9 m @ 100 m
15x: 7.8' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 3x: 11.4 mm
15x: 3.7 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | BDC Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.6" / 372 mm | | Weight | 26.5 oz / 750 g |
