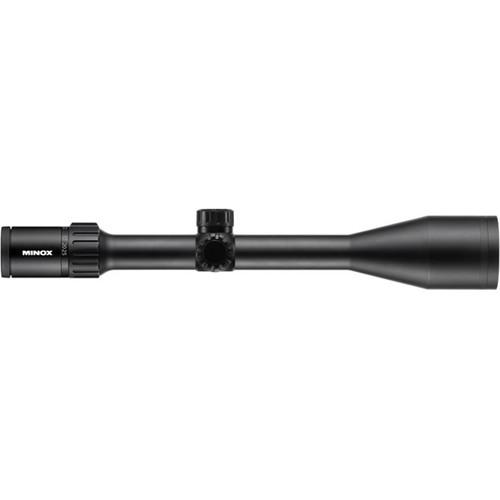

User Manual for Minox 5-25x50 ZX5i SF Riflescope Click to enlarge the picture
Contents of the user manual for the Minox 5-25x50 ZX5i SF Riflescope
- Product category: Riflescopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Riflescopes
|
User manual for the Minox 5-25x50 ZX5i SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description Minox engineered the 5-25x50 ZX5i SF Riflescope using its precision engineering and quality materials to meet the strictest shooting requirements. To emphasize its goals, Minox outfitted the optical system with high-contrast and high color rendition High-Tech glass elements and threaded them with their proprietary M* multi-coatings for superior transmission of light and image brightness. To empower shooters with precision, the scope features a 2nd focal plane illuminated German #4 reticle with three tapered posts, a thin crosshair, and a brilliant red illuminated target dot. The reticle offer clean views, continuous control of illumination, and an auto deactivation function. To help with compensating for wind and ballistic bullet drop, the riflescope offers 26 MOA of windage and elevation adjustment ranges and a 3.7mm (at 100m) per click impact point correction.
The scope's impact-resistant aluminum housing offers a 30mm maintube that is filled with argon for a fogproof and waterproof performance. The overall design features a solid and durable construction with precision capped turrets; and thanks to knurling with an extra-fine texture, making fingertip adjustments is easy. For your convenience, the battery compartment has an extra space for a spare CR-2032 battery. - Optical Performance
-
- 5 - 25x zoom system
- 50mm wide objective lens provides improved visibility in low-light conditions
- M* multi-coated optics provide superior light transmission
- High-Tech glass elements offer high-contrast and color rendition
- 21.6 - 4.8' liner field of view
- 10 - 2mm exit pupil
- Use and Handling
-
- Spare battery compartment inside the reticle adjustment drum
- 3.7mm at 100m impact point correction
- 26 MOA windage and elevation
- +2.5 to -3 diopter adjustment
- 3.9" eye relief
- Construction Details
-
- 30mm maintube
- Aluminum housing
- Smooth rubberized eyepiece
- Smooth focusing ring with a low-profile lever
- Capped adjustment turrets with an extra-fine, non-slip texture
- Parallax knob contains storage for extra battery
- Shock-resistant construction
- Argon-filled, fogproof and waterproof
- German #4 Illuminated Reticle
-
- 2nd focal plane
- Three tapered posts, a thin crosshair, and a red illuminated target dot
- Continuous illumination adjustment
In the Box Minox 5-25x50 ZX5i SF Riflescope (German #4 Illuminated Reticle, Matte Black) - 2 x CR-2032 Batteries
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 5-25x50 ZX5i SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66667 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 21.6' @ 100 yd / 7.2 m @ 100 m
25x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
25x: 2 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -3.0 to +2.5 | | | | Reticle Type | German #4 Reticle (Second Focal Plane) | | | | Windage Adjustment | 26 MOA | | Elevation Adjustment | 26 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.9" / 430 mm | | Weight | 27.2 oz / 770 g |
