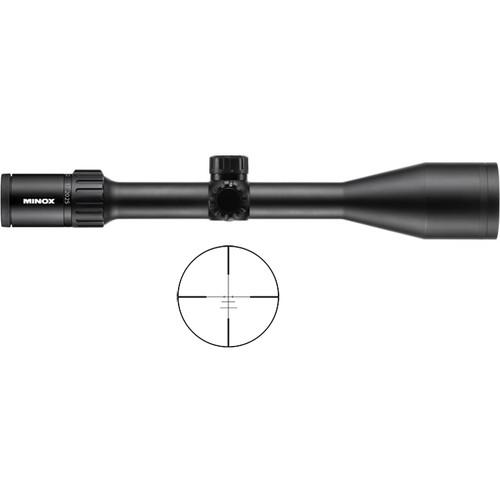

User Manual for Minox 5-25x56 ZX5i SF Riflescope Click to enlarge the picture
Contents of the user manual for the Minox 5-25x56 ZX5i SF Riflescope
- Product category: Riflescopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Riflescopes
|
User manual for the Minox 5-25x56 ZX5i SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description Minox engineered the 5-25x56 ZX5i SF Riflescope to meet the demands of precision shooters and hunters. To emphasize its goals, Minox outfitted the scope with optical elements that are made of Schott glass and feature proprietary MINOTEC multi-coated surfaces that increase image brightness, clarity, and resolution. For superior image brightness in low light and at high zoom, the scope has an extra-wide 56mm objective lens. It will gather more light than an average lens and greatly improve visibility in challenging lighting conditions. The BDC 400 reticle is located on the second focal plane and features four medium tapered posts and a thin crosshair with BDC markings out to 400 yards. The entire reticle is illuminated (including its crosshair and posts) with a brilliant red color. Its brightness control offers a continuous adjustment and an automatic off function after three hours of inactivity. For added precision when making shots, the parallax is adjustable via the side focus turret from 54.7 yards to infinity. To account for wind and ballistic bullet drop, the riflescope offers 26 MOA of windage and elevation adjustment ranges and a 1/8 MOA per click impact point correction.
The scope's impact-resistant aluminum housing features a 30mm maintube, which is filled with argon for improved fogproof and waterproof performance. The overall design provides a solid and durable construction with precision capped turrets. - Optical Performance
-
- 5-25x magnification
- Extra-wide 56mm objective for low-light and distance shooting
- MINOTEC multi-coated optics offer high transmission and low glare
- 21.6-4.8' at 100 yd field of view
- 11.2-2.2mm exit pupil
- BDC Illuminated Reticle
-
- 2nd focal plane
- Four medium tapered posts
- Thin crosshair with BDC marking that range out to 400 yd
- Continuous brightness adjustment
- Battery-saving auto-off function after 3 hours
- Use and Handling
-
- 1/8 MOA impact point correction per click
- 26 MOA windage and elevation ranges
- Side focus parallax adjustment from 55 yd to infinity
- Eye relief: 3.9"
- Construction Details
-
- 30mm maintube
- Aluminum housing
- Smooth rubberized eyepiece
- Smooth focusing ring with a low-profile lever
- Capped adjustment turrets with extra-fine non-slip texture
- Argon-filled, fogproof
- Waterproof
In the Box Minox 5-25x56 ZX5i SF Riflescope (BDC Illuminated Reticle) - CR-2032 Battery
- Lens Cloth
- Limited Lifetime Warranty with Product Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 5-25x56 ZX5i SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 66618 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 21.6' @ 100 yd / 7.2 m @ 100 m
25x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 5x: 11.2 mm
25x: 2.2 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -3.0 to +2.5 | | | | Reticle Type | BDC Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 26 MOA | | Elevation Adjustment | 26 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 16.9" / 430 mm | | Weight | 29.5 oz / 835 g |
