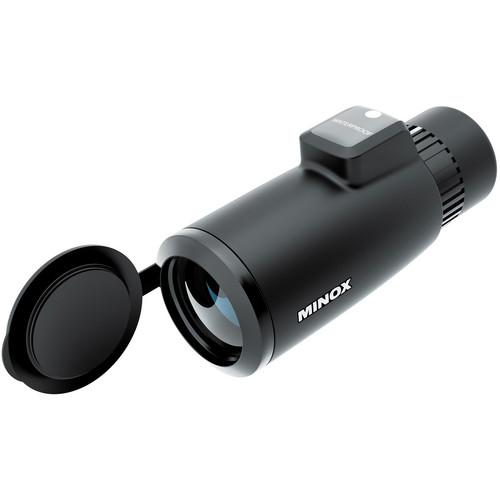

User Manual for Minox 7x42 MD C Monocular Click to enlarge the picture
Contents of the user manual for the Minox 7x42 MD C Monocular
- Product category: Monoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Monoculars
|
User manual for the Minox 7x42 MD C Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The black 7x42 MD C Monocular from Minox combines a weatherproof housing and an analog magnetic compass to create an ideal handheld optic for a wide-range of activities, whether you're on the trail or at sea. An inverted-T crosshair reticle features mil hash marks on the longitudinal and latitudinal axes, providing the observer with a tool for estimating the distance to, and size of, objects. A built-in analog compass displays the directional reading in degrees at the bottom of the field of view. A water-sealed and armored housing, subzero temperature tolerance, and fold-down eyecup equip the black 7x42 MD C with the features required for a durable and dependable monocular. - Optical Performance
-
- 7x magnification
- 42mm objective
- 6.5° angle of view
- 45° apparent viewing angle
- 374' field of view at 1000 yards
- 20.5mm eye relief
- 6mm exit pupil
- Use and Handling
-
- 360° magnetic compass
- Inverted-T ranging reticle with mil hash marks for estimating object distance and size
- 0 to 80 mil longitude and latitude range
- Fold-down rubber eyecup
- Flip-down objective cover
- Construction Details
-
- -4 to 122°F operating temperature
- Submersible to 3.3' (1m)
- Black rubber armoring
In the Box Minox 7x42 MD C Monocular (Black) Soft Case Wrist Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 7x42 MD C Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62209 Specs | Prism Type | Roof | | Magnification | 7x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° | | Field of View | 342' @ 1000 yd (113 m @ 1000 m) | | Minimum Focus Distance | Not specified by manufacturer | | Exit Pupil Diameter | 6 mm | | Eye Relief | 20.5 mm | | Waterproofing | Waterproof, submersible to 3.3' (1 m) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 5.6 x 2.6 x 2.4" (14.3 x 6.5 x 6.1 cm) | | Weight | 13.1 oz (370 g) | | | | Package Weight | 1.325 lb | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 3.9" |
