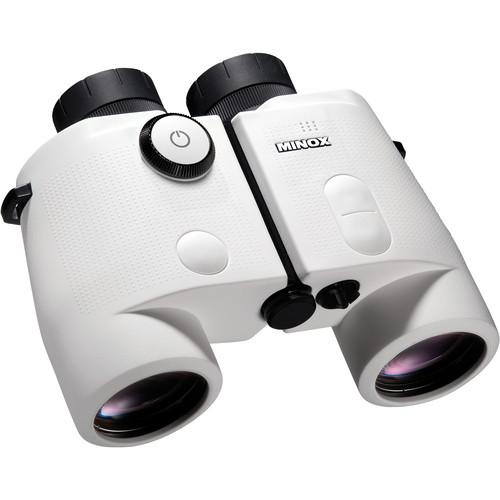

User Manual for Minox 7x50 Nautik BN DCM Binocular Click to enlarge the picture
Contents of the user manual for the Minox 7x50 Nautik BN DCM Binocular
- Product category: Binoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Binoculars
|
User manual for the Minox 7x50 Nautik BN DCM Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More survwrafrudy The white 7x50 Nautik BN DCM Binocular from Minox combines fully multicoated glass elements with an airtight housing and an array of sensors to create a well-equipped tool for marine navigation and observation. Minox collaborated with the Volkswagen industrial design team to develop the Nautik binocular series; the results are electro-optical devices with a streamlined form factor, ergonomic handling and refined style. To prepare the Nautik binocular for use on the water or in the rain, its housing is nitrogen-filled for fogproof performance and it is also buoyant and submersible. An integrated digital compass and inclinometer provide this Nautik series binocular with a range of functions that set it apart from other fixed-magnification optics. The built-in inclinometer senses tilt on two axes and determines the binocular orientation relative to level ground. This information helps maximize compass accuracy and minimizes the possibility of incorrect readings. Compass readings are displayed as either degrees or cardinal directions in the center of the field of view using a brightness-adjustable red overlay. A horizontal ranging reticle can be activated to help the observer determine approximate range to (or size of) an object. The built-in environment sensor array uses a barometer, altimeter, and thermometer to provide a range of data about the observer's location and its ambient conditions. An in-view digital clock is also packed into the Nautik DCM's spectrum of features. Time is displayed in 24-hour format, and the clock also has a stopwatch that can save up to three recorded times. Both the digital clock and the triad of environmental sensors are controlled by a low-profile wheel located on top of the binocular housing. Minox's single-ocular focusing system enables focus-free performance that is ideal for intermediate to long-range observations. Objects beyond a 40-foot (12m) distance will appear detailed and sharp without need to refocus the ocular for views along the horizon. The ocular can also focus on subjects as close as 23 feet (7m) without sacrificing image quality or depth of field. This focus system is functional yet flexible enough to handle almost any glassing application. Non-slip rubber armor, twist-in eyepieces, and a threaded tripod mount help make the 7x50 Nautik DCM a full-featured binocular for a wide range of outdoor activities. - Optical Performance
-
- 7.0x magnification, 50mm objectives
- 7.2° angle of view, 50° apparent viewing angle
- Fully multicoated optics, Porro prism design
- 23 ft (7m) minimum focus distance
- Single-ocular focusing for fixed focus distance
- 22mm eye relief, 7mm exit pupil diameter
- -4 to +6 diopter adjustment range
- Digital Compass/Inclinometer
-
- 360° range with ±5° accuracy
- ±60° tilt measurement range
- 1° measurement resolution
- ±60° (pitch) and ±45° (roll) compensation
- Internal memory saves up to three bearing and tilt readings
- Measurements in degrees and cardinal points (N,NE,E,SE,S,SW,W,NW)
- Altimeter
-
- Displays measurements in feet or meters
- 30,000 ft (9,000m) measurement range
- 3 ft (1m) measurement resolution
- Manual and auto calibration modes
- Barometer
-
- Displays measurement in hPa, inHg, mmHg
- 900-1100 hPa (26.60-32.49 inHg / 676-825 mmHg) measurement range
- 1 hPa (0.01 inHg / 1 mmHg) measurement resolution
- Sea level air pressure mode for precise calibration
- Selectable interval for air pressure measurement log
- Thermometer
-
- Displays measurement in °F or °C
- 4 to 131°F (-20 to 55°C) measurement range
- 1°F (1°C) measurement resolution
- Internal memory saves up to three temperatures
- Digital Stopwatch
-
- 24-hour time format
- Split time stopwatch
- Displays timer in hours:minutes:seconds:tenths
- Internal memory can store up to three recorded times
- Use and Handling
-
- Twist-in eyecups for comfortable eye relief when wearing glasses
- Tethered objective caps
- Tripod mounting thread
- Construction Details
-
- Water-sealed nitrogen-filled fogproof housing
- 14 to 122°F (-10 to 50°C) operating temperature
- Buoyant, submersible to 16 ft (5m)
- 44 oz (1.25 kg) weight
In the Box Minox 7x50 Nautik BN DCM Binocular (White) Neoprene Carrying Strap Neoprene Carrying Case Folding Eyecups Objective Caps Eyepiece Cap CR2 Battery Limited 2-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 survwrafrudy A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 3.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 7x50 Nautik BN DCM Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62415 Specs | Prism Type | Porro | | Magnification | 7.0 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.1° (Actual) | | Field of View | 372.7' @ 1000 yd / 124.2 m @ 1000 m | | Minimum Focus Distance | 148.3' / 45.2 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 22 mm | | Dioptric Correction | -4 / +6 | | Focus Type | Focus-Free | | Tripod Mount | Yes | | Dimensions | 7.7 x 6.3 x 2.8" / 19.5 x 16.0 x 7.2 cm | | Weight | 44.09 oz / 1249.95 g | | | | Package Weight | 3.895 lb | | Box Dimensions (LxWxH) | 10.5 x 7.3 x 3.75" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
