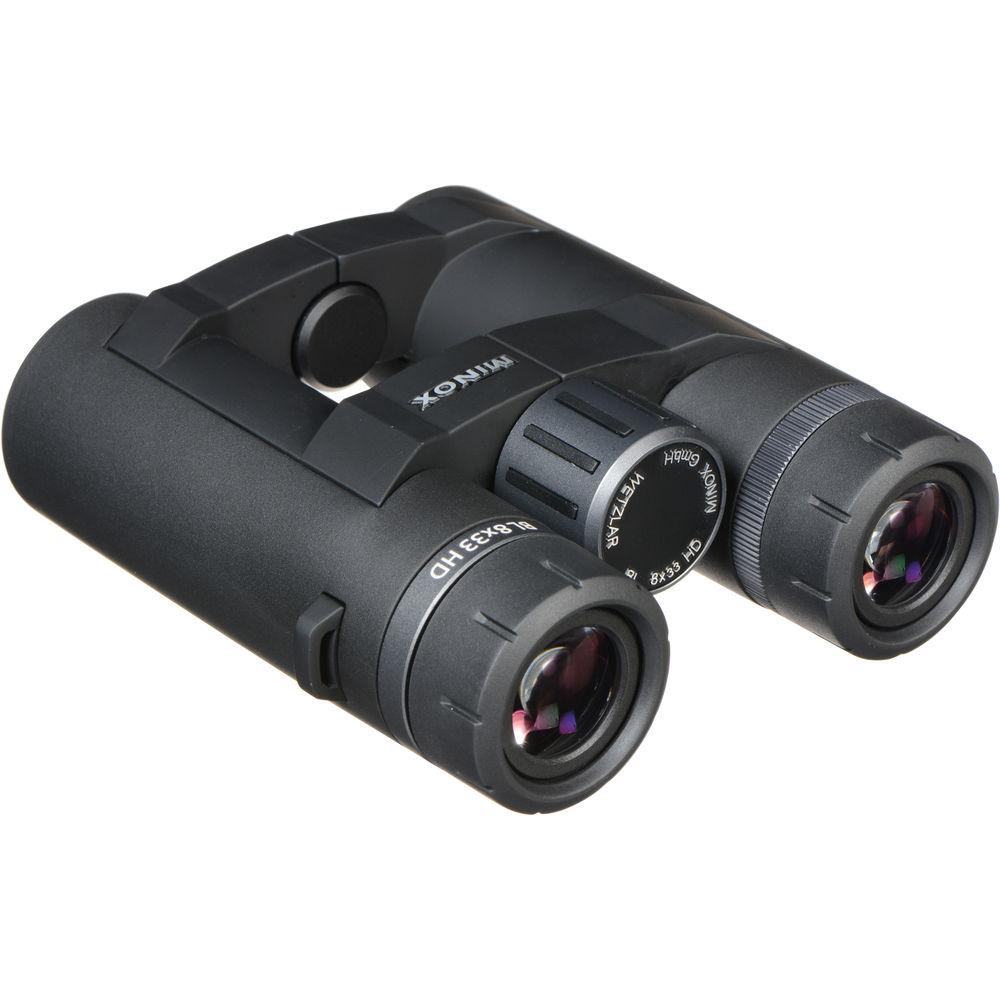

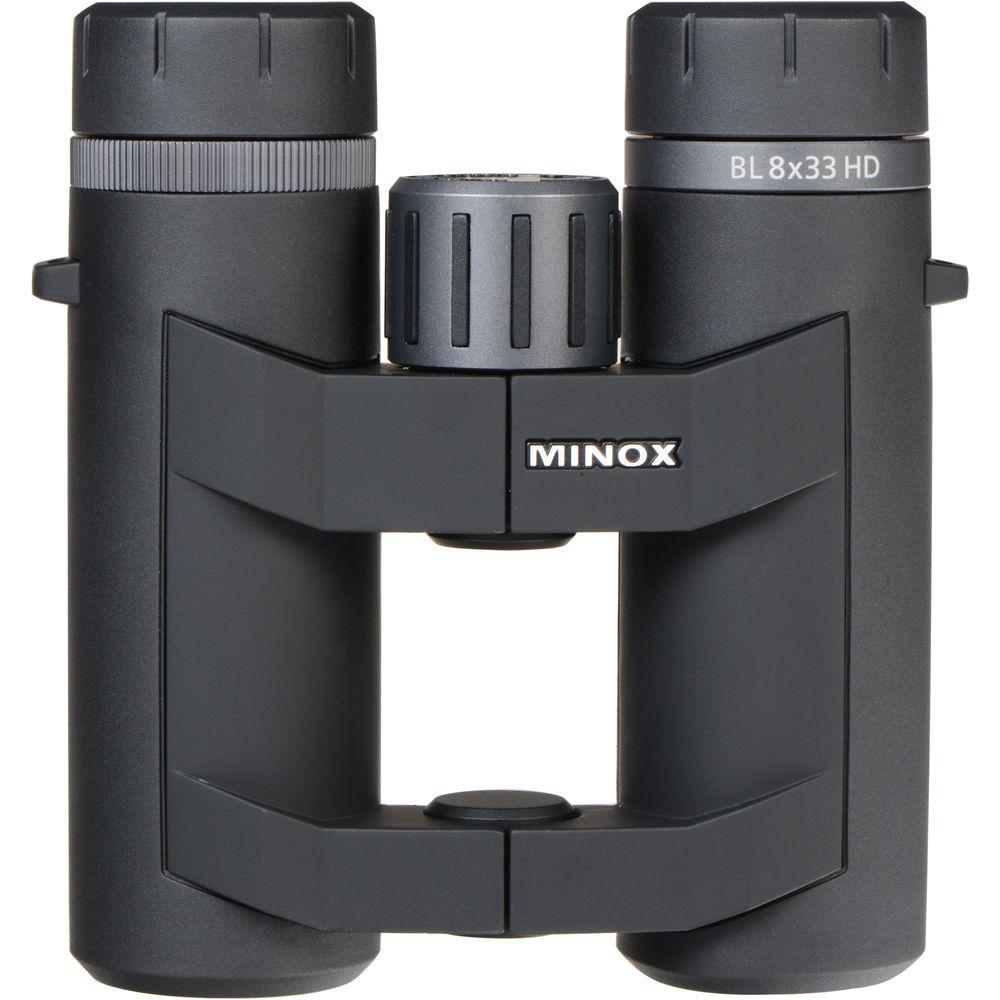

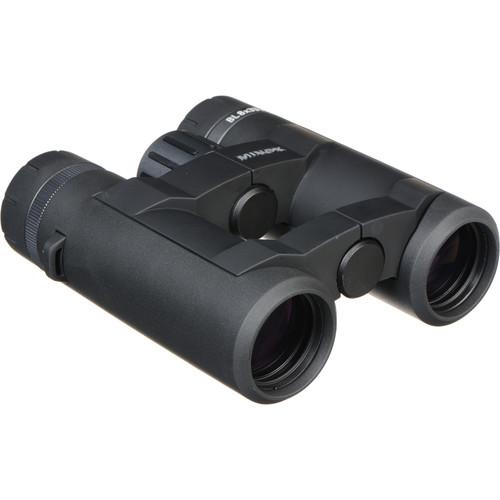

User Manual for Minox 8x33 BL HD Binocular v.2 Click to enlarge the picture
Contents of the user manual for the Minox 8x33 BL HD Binocular v.2
- Product category: Binoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Binoculars
 |
User manual for the Minox 8x33 BL HD Binocular v.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More This second version of Minox's 8x33 BL-HD Series Binocular combines phase-corrected prisms, high density (HD) glass, anti-reflective multi-coated optics, and anomalous partial dispersion (APD) lens elements to create an optical system with well-rounded performance in all lighting conditions. The phase-corrected roof prisms and HD glass increase resolution and contrast, while the APD elements reduce chromatic aberration, that produce clear and bright images with true color representation across the entire field of view without distortion. When combined with its wide angle of view, long eye relief, and comfortable exit pupil, users will be presented with a panoramic and immersive observational experience.Its lightweight polycarbonate housing reduces fatigue from long use while being impact, temperature, and corrosion-resistant. An open-bridge configuration further cuts the weight, while providing a sure grip whether you're using them with one hand or two. The optical tubes are nitrogen-filled and O-ring sealed for fogproof performance and they are rated to be submersible to 16 feet. Twist-up eyecups let you customize the eye relief whether you wear glasses or not. - Optical Performance
-
- 8x magnification
- 33mm objective lenses
- Compact roof prism optical path
- Anomalous partial dispersion LD glass elements increase light transmission for brighter, clearer images with reduced chromatic aberration to limit color fringing and off-axis coma for true color fidelity
- Phase correcting prism coatings increase internal prism reflectivity, and improve contrast and resolution
- Fully multi-coated optics limits light loss while further improving image brightness, color rendition, and contrast
- 420' field of view at 1000 yards
- Wide 64° apparent angle of view
- Long 17.5mm eye relief
- Comfortable 4.1mm exit pupil
- Use and Handling
-
- Open-bridge, dual hinge configuration provides more gripping surface area to improve hold and comfort
- ±4 dioptric correction
- Large knurled center focus wheel
- Twist-up click-stop eyecups for comfortable use with or without eyewear
- Construction Details
-
- Open-bridge design reduces weight without sacrificing strength or stability
- Lightweight and durable polycarbonate chassis is temperature resistant to limit expansion and contraction prevents lens-shift over time that can move the optics out of collimation
- Nitrogen-filled and O-ring sealed to be water and fogproof, and submersible to 16' (5 m)
- Broad operating temperature range from 14 to 122°F (-10 to 50°C)
- Weight: 26.1 ounces
- Made in Germany
In the Box Minox 8x33 BL HD Binocular v.2 Carrying Case Neoprene Neck Strap Limited Lifetime Warranty with Registration Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 8x33 BL HD Binocular v.2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62242 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 33 mm | | Angle of View | 8.0° (Actual) | | Field of View | 420.0' @ 1000 yd / 140.0 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 4.1 mm | | Eye Relief | 17.5 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.8 x 4.9 x 1.7" / 14.8 x 12.5 x 4.4 cm | | Weight | 20.5 oz / 582.0 g | | | | Package Weight | 2.02 lb | | Box Dimensions (LxWxH) | 8.1 x 6.3 x 3.2" |
