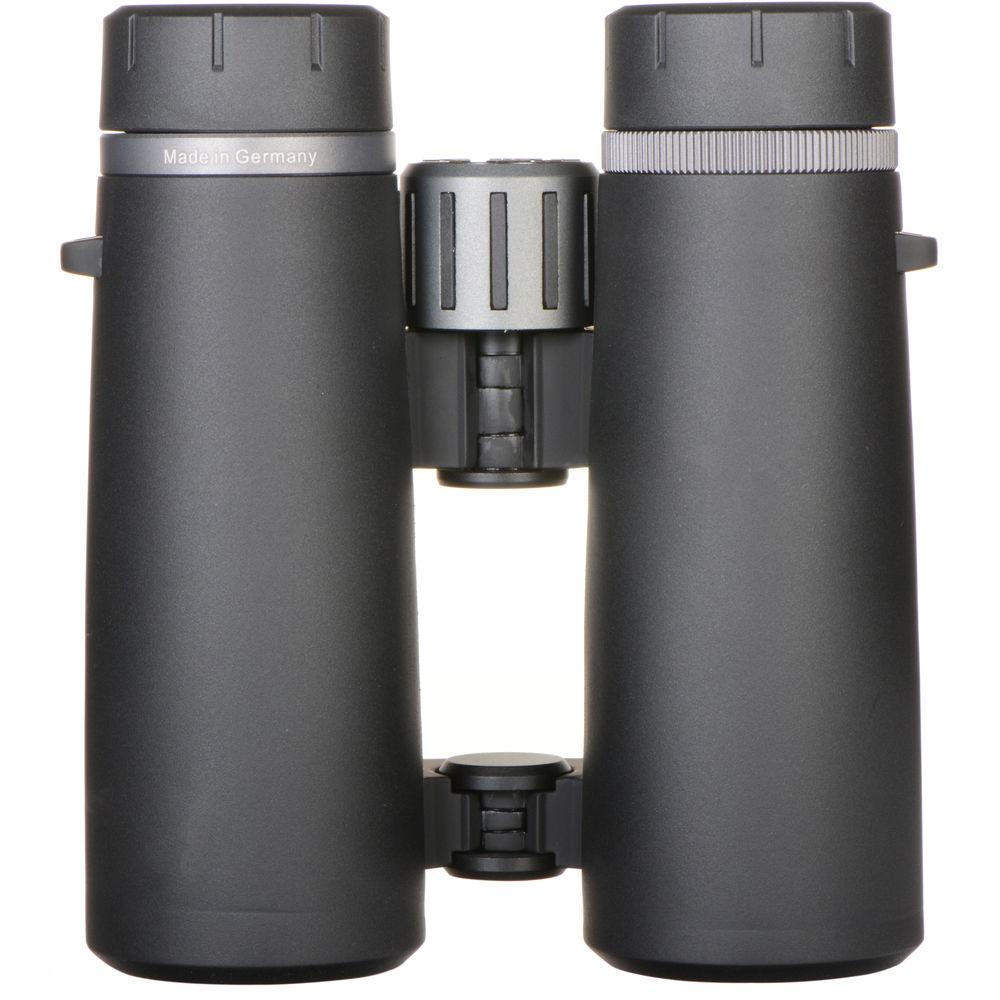

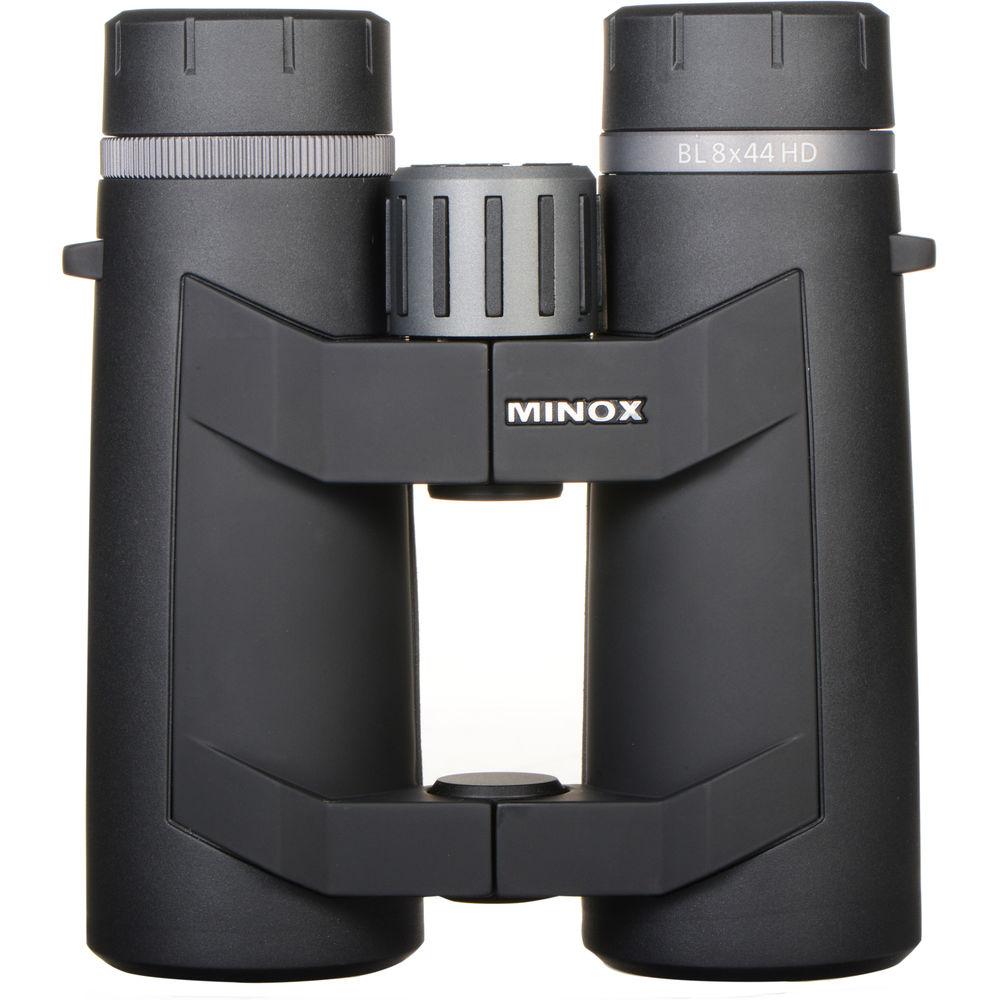

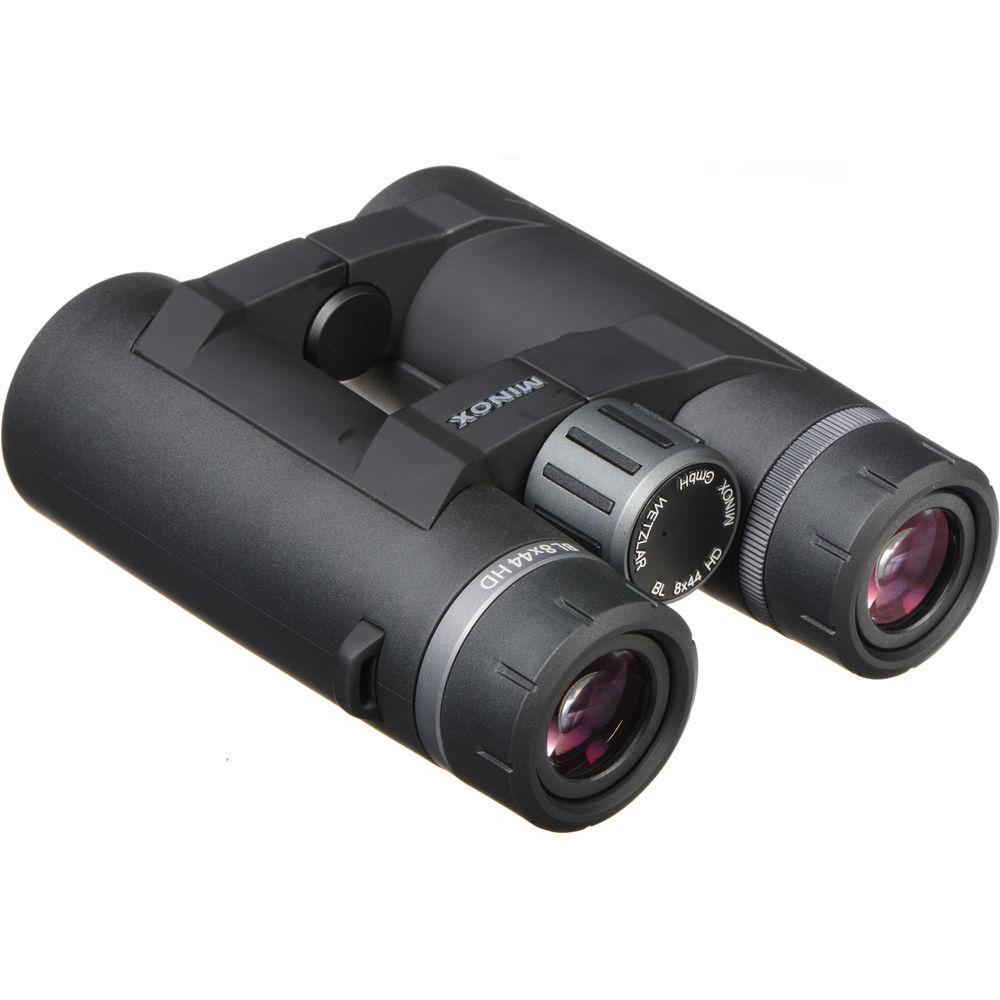

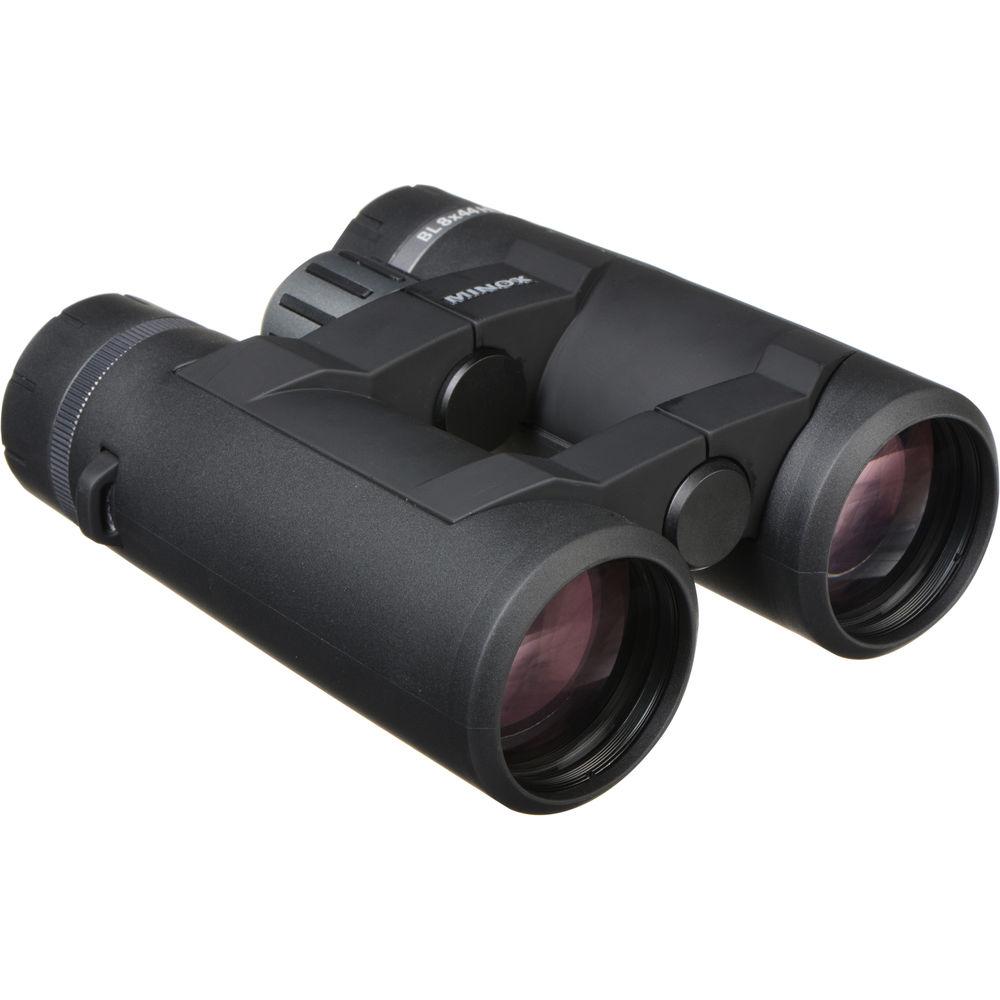

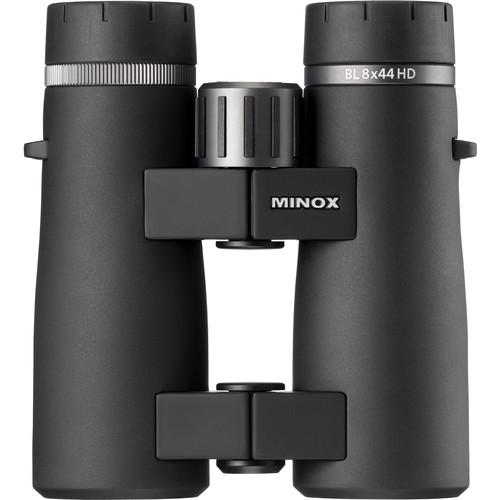

User Manual for Minox 8x44 BL HD Binocular v.2 Click to enlarge the picture
Contents of the user manual for the Minox 8x44 BL HD Binocular v.2
- Product category: Binoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Binoculars
 |
User manual for the Minox 8x44 BL HD Binocular v.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Engineered for performance and comfort, this second version of the Minox 8x44 BL HD Binocular strikes a nice balance of form and function. Optically, several technologies, including low dispersion glass elements, fully multi-coated optics, and phase-corrected roof prisms work together to produce bright and clear high-contrast images with true color fidelity. When coupled with its wide angle of view, long eye relief, and wide exit pupil users will be presented with a panoramic and immersive observational experience.Complementing the optical performance are design details that will make this a binocular that can be comfortably used for long observation sessions. It starts with a lightweight polycarbonate chassis that is resistant to expansion and contraction caused by extreme temperature changes which can cause the optical components to move out of alignment over time, resulting in an inability to achieve a sharp focus. The center bridge is open to provide more surface area to grip for a more secure hold especially in cold and wet conditions. The optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof, as well as capable of being submerged to depths of 16 feet. - Optical Performance
-
- 8x magnification
- 44mm objective lenses
- Compact roof prism optical path
- Anomalous partial dispersion LD glass elements
- Increase light transmission for brighter, clearer images
- Reduce chromatic aberration to limit color fringing and off-axis coma for true color fidelity
- Phase correcting prism coatings increase internal prism reflectivity, and improve contrast and resolution
- Fully multi-coated optics limits light loss while further improving image brightness, color rendition, and contrast
- 410' field of view at 1000 yards
- Wide 62° apparent angle of view
- Long 19.5mm eye relief
- Wide 5.5mm exit pupil
- Use and Handling
-
- Open-bridge, dual hinge configuration
- Reduces weight without sacrificing strength or stability
- Provides more gripping surface area to improve hold and comfort
- ±4 dioptric correction
- Large knurled center focus wheel
- Twist-up click-stop eyecups for comfortable use with or without eyewear
- Construction Details
-
- Polycarbonate chassis
- Lightweight and durable
- Temperature resistant to limit expansion and contraction prevents lens-shift over time that can move the optics out of collimation
- Nitrogen-filled and O-ring sealed
- Water and fogproof
- Submersible to 16' (5 m)
- Broad operating temperature range from 14 to 122°F (-10 to 50°C)
- Weight: 26.1 ounces
- Made in Germany

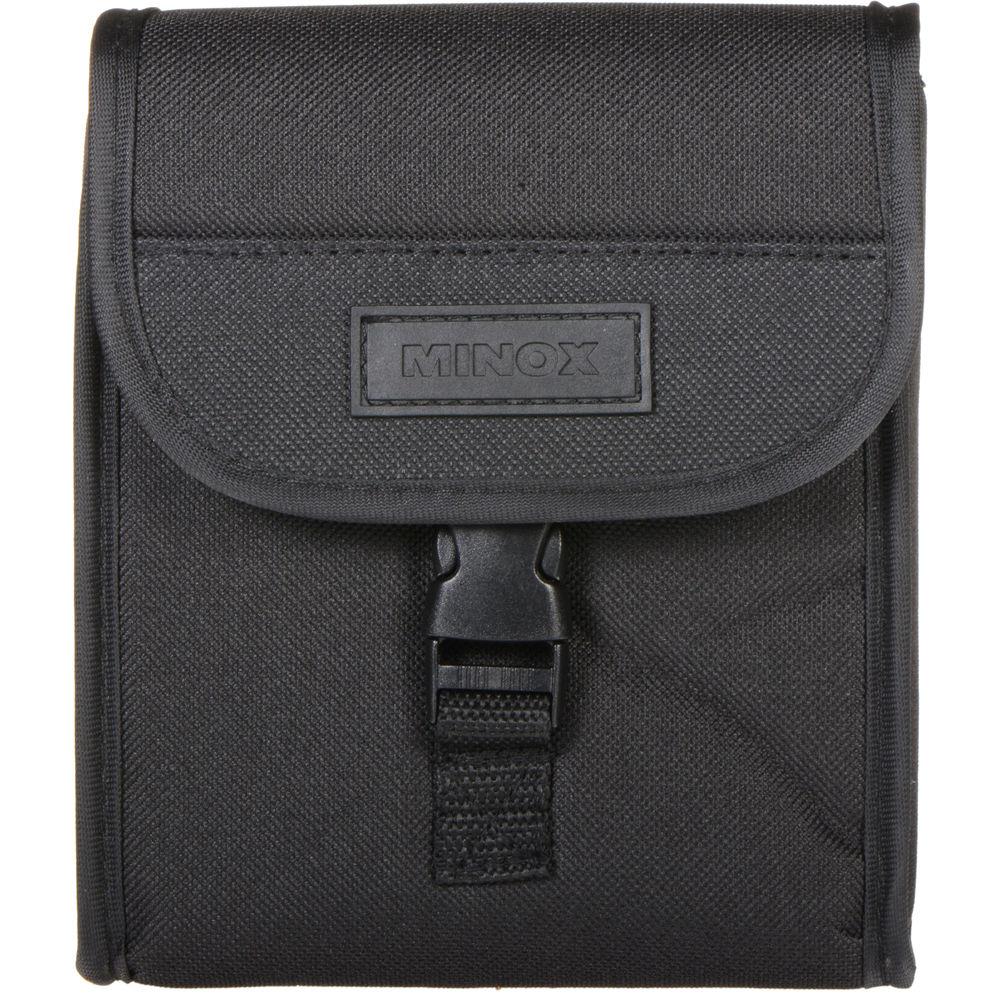

In the Box Minox 8x44 BL HD Binocular v.2 Carrying Case Neoprene Neck Strap Limited Lifetime Warranty with Registration Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 8x44 BL HD Binocular v.2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62235 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 44 mm | | Angle of View | 7.8° (Actual) | | Field of View | 409.5' @ 1000 yd / 136.5 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 5.5 mm | | Eye Relief | 19.5 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.9 x 5.1 x 2.1" / 15.0 x 13.0 x 5.3 cm | | Weight | 26.1 oz / 740.0 g | | | | Package Weight | 2.37 lb | | Box Dimensions (LxWxH) | 8.1 x 6.45 x 3.35" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
