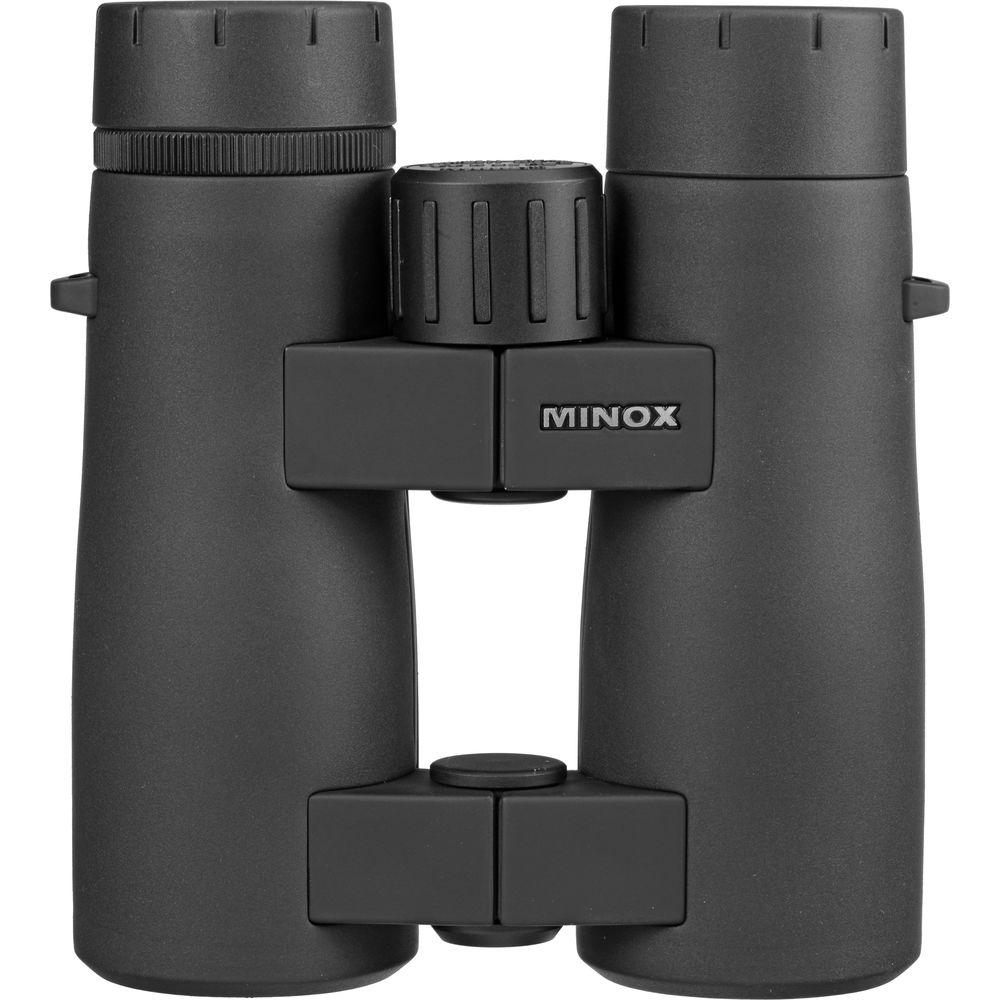

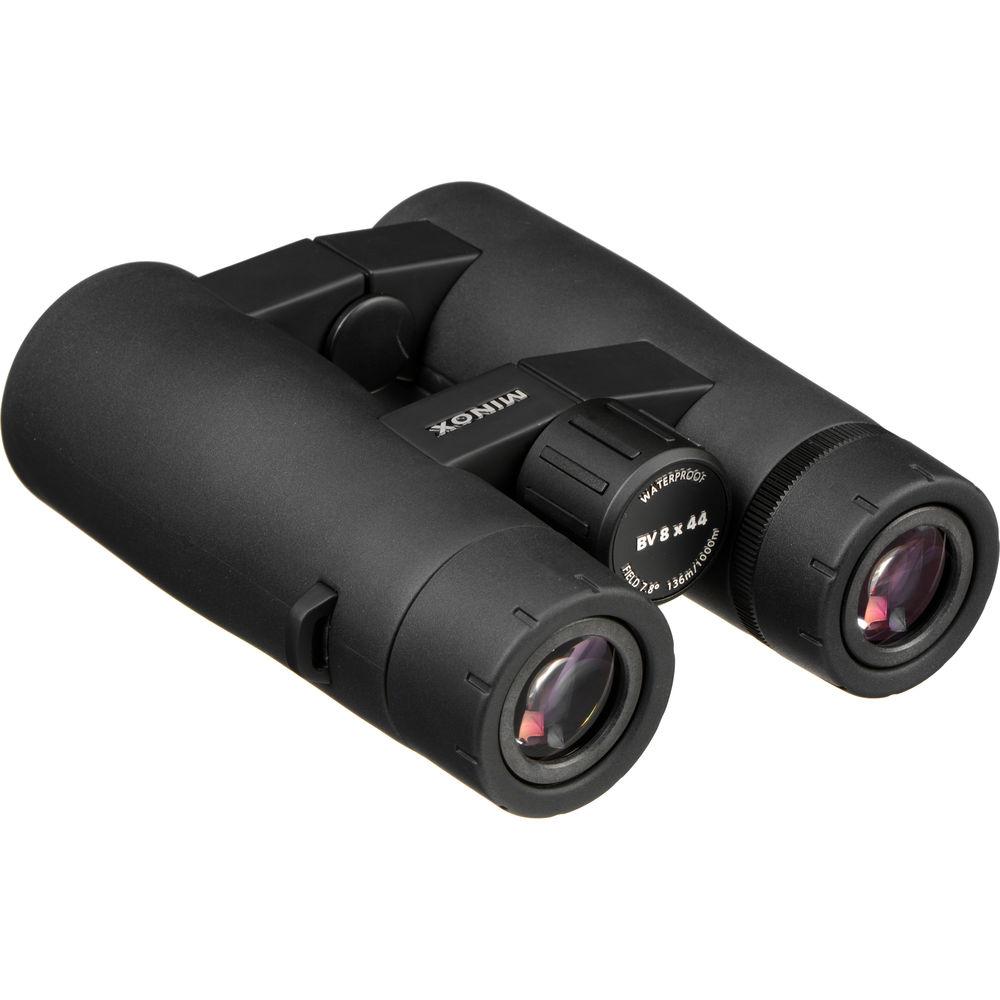

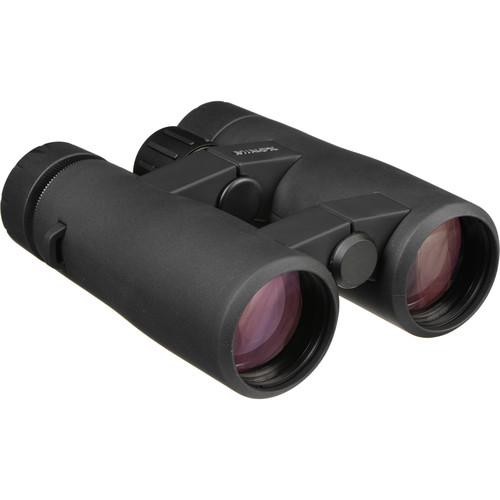

User Manual for Minox 8x44 BV Binocular Click to enlarge the picture
Contents of the user manual for the Minox 8x44 BV Binocular
- Product category: Binoculars Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Binoculars
 |
User manual for the Minox 8x44 BV Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for the discerning outdoor enthusiast, the Minox 8x44 BV Binocular has an ergonomic form-factor that makes it comfortable in your hand while providing the performance required for hunting, hiking, or bird watching. Minox broke with tradition and increased the objective lens size from the more common 42mm to the 44mm, which increased both the light-gathering ability and apparent angle of view. To further increase image brightness, they coated the optics in their proprietary M* anti-reflection coatings which also translates to neutral color rendition so colors appear more true and natural when viewing through the optic.To help reduce weight - and therefore user-fatigue - Minox employs a strong, lightweight, and corrosion-resistant polycarbonate chassis material which helps to offset the larger objective lenses. Utilizing an open-bridge configuration also helps to cut weight while providing a full-handed grip that helps maintain control in cold and wet conditions. The optical tubes are nitrogen-filled to make them water and fogproof which allows them to handle extreme temperature and weather conditions. Weighing in at just 26 ounces, the BV is light enough to hold and use one-handed, but it you're planning on long observation sessions they can be mounted on a tripod using an optional tripod adapter. - Optical Performance
-
- 8x magnification
- 44mm objective lenses
- Compact roof prisms
- Proprietary M* anti-reflection fully multi-coated optics for brighter images and neutral color rendition
- 410' field of view at 1000 yards
- Wide 62.4° apparent angle of view
- Use and Handling
-
- Open-bridge configuration
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups
- Tripod mountable with optional adapter
- Long 19.5mm eye relief
- Wide 5.5mm exit pupil
- Construction Details
-
- Lightweight and corrosion-resistant polycarbonate housing
- Nitrogen-filled for water and fogproof performance
- Submersible to 16 feet (5 meters)
- Broad 14 to 122°F (-10 to 50°C) operating temperature
- Weight: 26 oz
In the Box Minox 8x44 BV Binocular Limited 5-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox 8x44 BV Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox 62237 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 44 mm | | Angle of View | 7.8° (Actual) | | Field of View | 409.5' @ 1000 yd / 136.5 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 5.5 mm | | Eye Relief | 19.5 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.0 x 2.0" / 14.0 x 12.7 x 5.1 cm | | Weight | 26.1 oz / 740.0 g | | | | Package Weight | 2.405 lb | | Box Dimensions (LxWxH) | 8.1 x 6.45 x 3.25" |
