Minox ACX 300 Action Camera

Search your instruction manual in PDF to download

User Manual for Minox ACX 300 Action Camera

Click to enlarge the picture
Minox ACX 300 Action Camera Contents of the user manual for the Minox ACX 300 Action Camera
  • Product category: Sports & Action Cameras Minox
  • Brand: Minox
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Minox Sports & Action Cameras

Minox ACX 300 Action Camera Minox ACX 300 Action Camera Minox ACX 300 Action Camera Minox ACX 300 Action Camera
User manual for the Minox ACX 300 Action Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Minox product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!



Product description

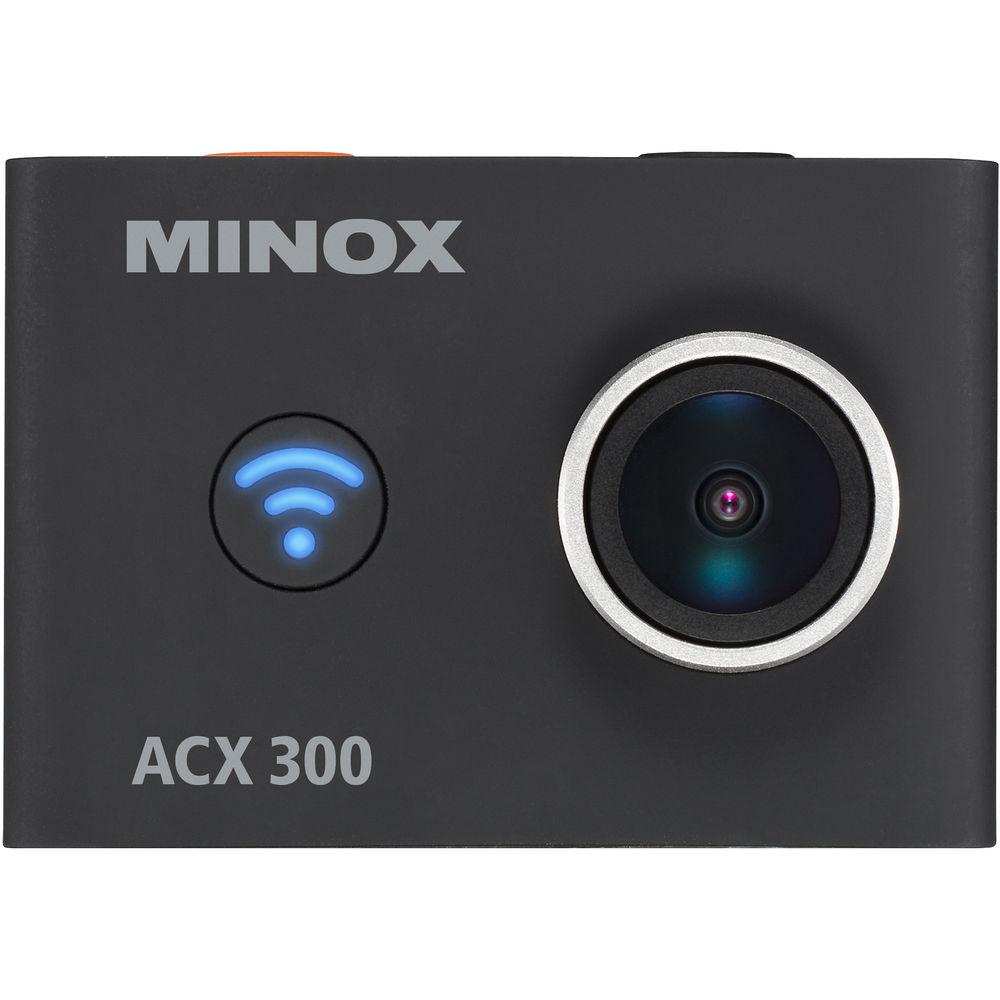

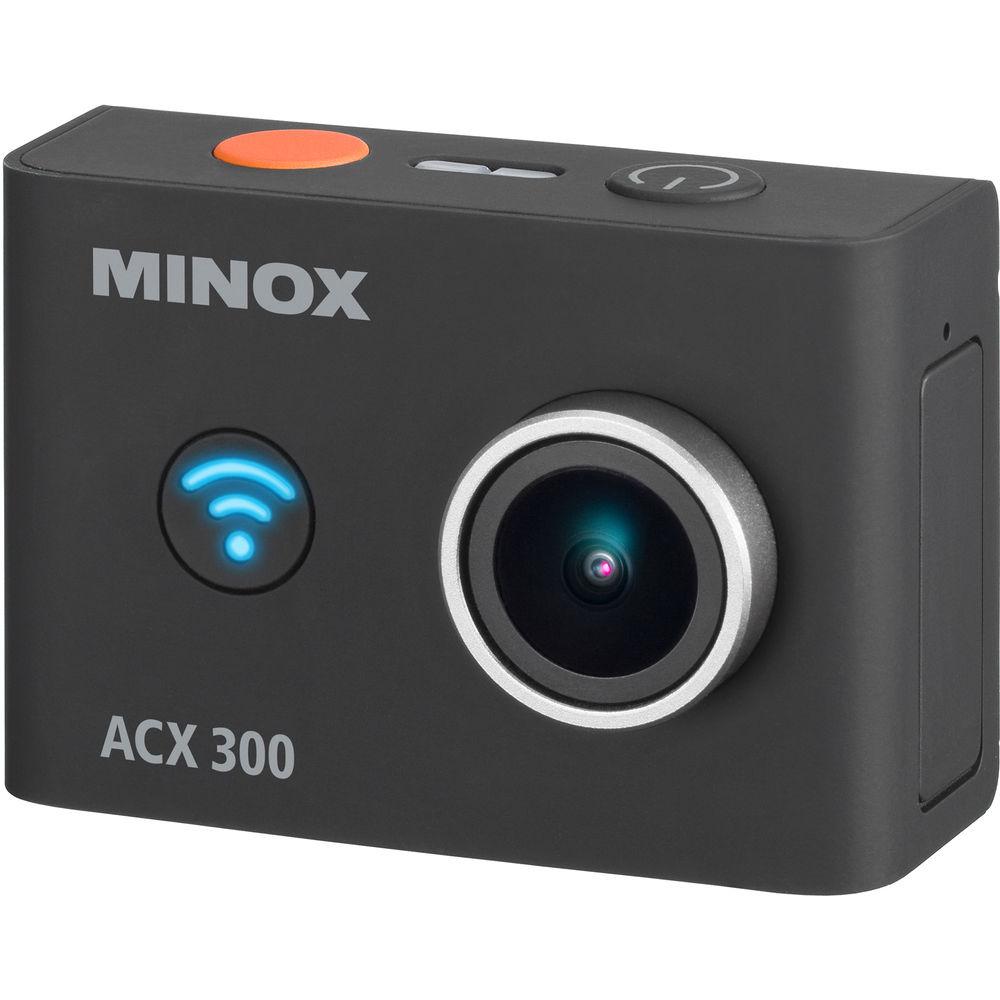

The Minox ACX 300 Action Camera packs advanced features into a stylish, compact body for your outdoor, underwater, leisure, vlogging, filmmaking, and various other adventures. Capture everything in an immersive 150° ultra-wide-angle view in high resolution.

The ACX 300 has a 12MP image sensor and a 7-element lens, and records in 3K resolution at 24 fps, Full HD 1080p at up to 60 fps, and 720p at up to 120 fps for slow-motion playback, all with audio and built-in, gyro-sensor digital image stabilization that compensates for camera shake. It also captures 12MP photos and time-lapse photography. Photos can also be taken in your choice of 8, 5, and 3MP for smaller file sizes. Furthermore, insert the camera into the included waterproof case and dive right in as far as 98 ft underwater. Everything is recorded to microSDHC cards up to a 32GB, sold separately.

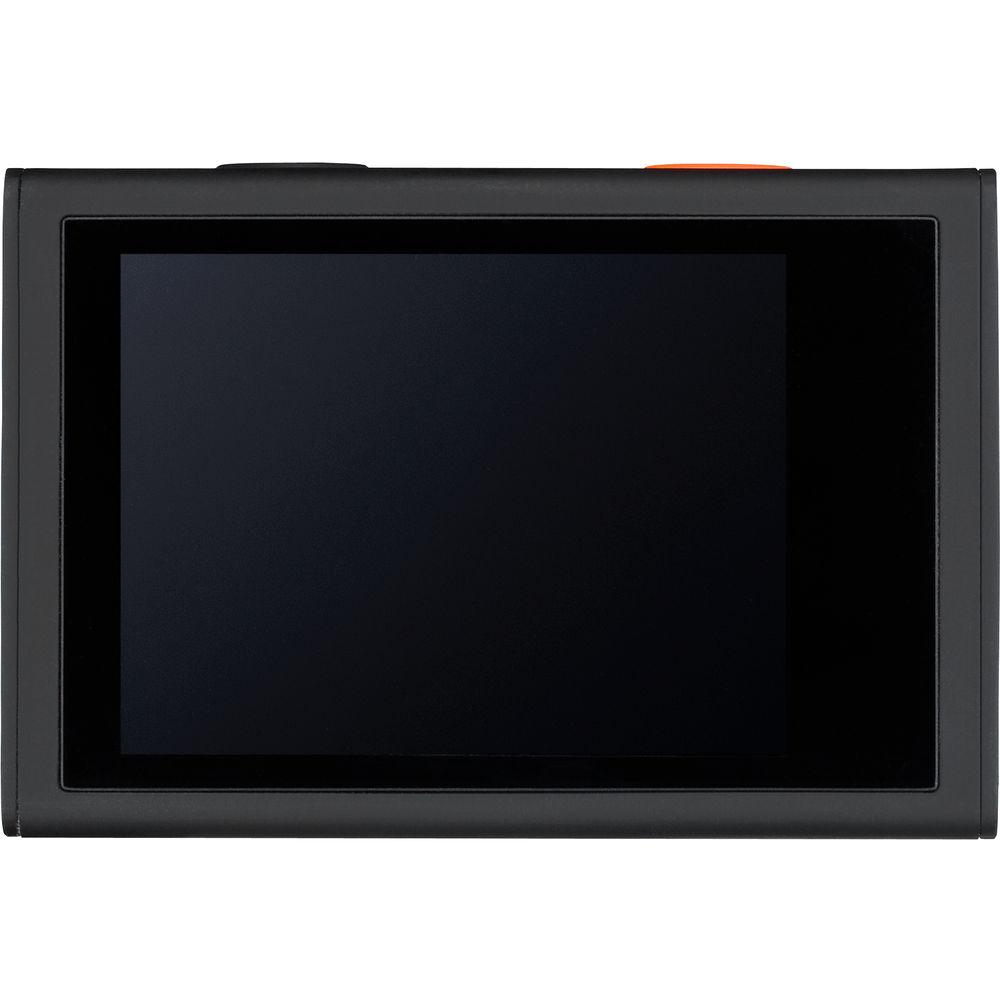

A 2" TFT LCD on the rear lets you set up and review your shots, as well as access camera settings. The camera also comes with an iOS/Android mobile app (free download) that allows you to monitor your recordings remotely in real-time, play back recordings, start/stop recording, take photos, and perform many of the other camera functions right from your phone or tablet. For example, with the camera mounted on a helmet, selfie-stick, or other support gear, you'll be able to view the captured image live on your mobile device. The camera connects to the app wirelessly via built-in Wi-Fi.

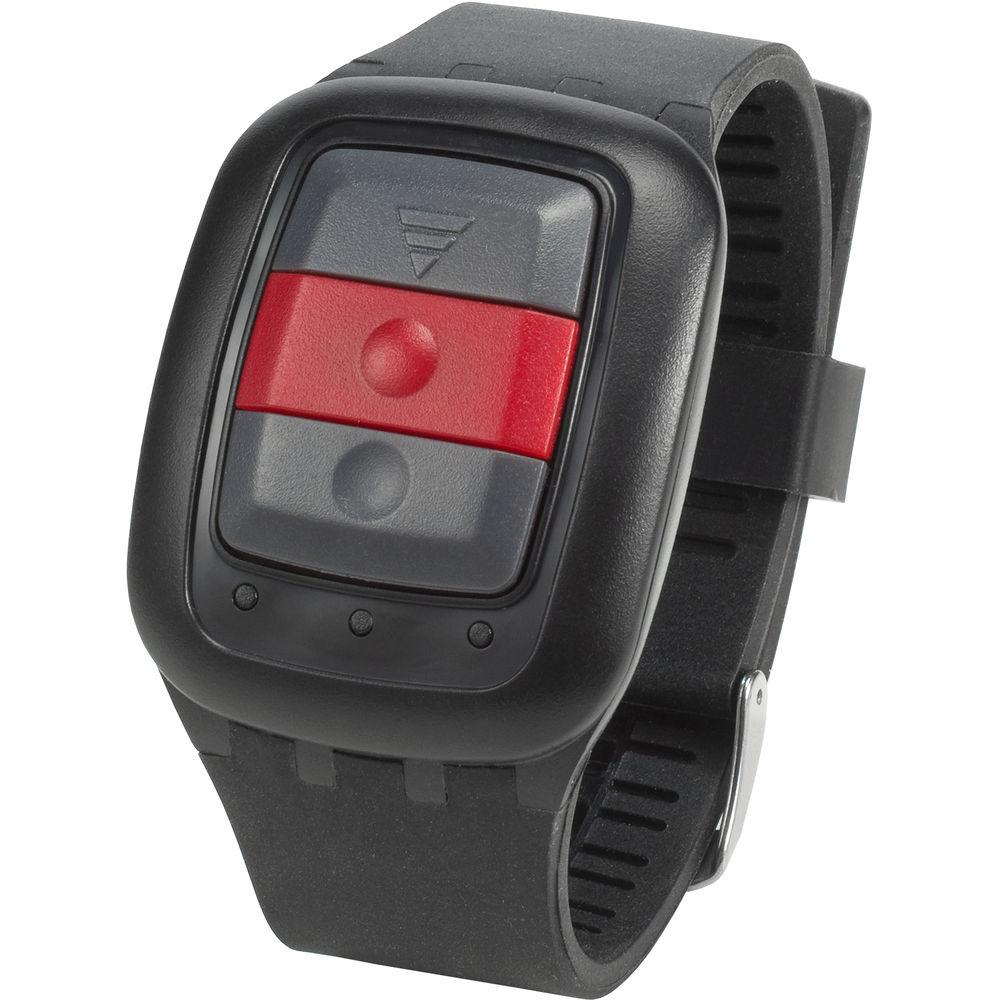

A wrist-wearable remote control is also included that allows you to start/stop recording and take photos. The remote control is rain-proof and features an LED indicator that confirms whether the camera is recording or not so that you know the status while the camera is at a distance. Among the other included accessories, you'll also find curved and flat surface mounts for attaching the camera to pretty much any object. The ACX 300 is powered by a supplied lithium-ion battery that runs approximately 90 minutes with Wi-Fi turned off, and 70 minutes with Wi-Fi on. The camera offers a Micro-HDMI monitoring output and a Micro-USB computer interface and battery charging port.
    Key Features
    • 12MP 1/2.3" image sensor
    • 7-element f/2.8 lens with 20" minimum focusing distance
    • Records up to 3K (2880 x 2160) resolution at 24 fps
    • Slow-motion recording in 720p resolution at 120 fps
    • 12MP still photos
    • Time-lapse photography
    • Built-in mic
    • Built-in digital image stabilization
    • 150° ultra-wide angle
    • Includes waterproof housing (98 ft)
    • Accepts up to a 32GB microSDHC card for storage
    • 2" TFT LCD
    • Built-in Wi-Fi
    • Includes iOS/Android mobile app for remotely operating the camera, monitoring shots in real-time, reviewing recordings, and more
    • Includes wrist-wearable, rain-proof remote control with LED status indicator
    • Curved and flat surface mounts supplied
    • Micro-HDMI monitoring output and Micro-USB computer interface and charging port
In the Box Minox ACX 300 Action Camera
  • Lithium-Ion Battery
  • Waterproof Housing
  • Wrist-Wearable Remote Control
  • Frame Mount
  • Curved Surface Mount
  • Flat Surface Mount
  • Snap Fastener
  • USB Cable
  • Limited 2-Year Warranty
  • User Manual PDF 651.1kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Minox ACX 300 Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Minox ACX 300 Specs

    Sensor 1-Chip 1/2.3" CMOS
    Color Filter Bayer
    Sensor Resolution 12 MP
    Focal Length 3.25mm
    Maximum Aperture f/2.8
    Lens Elements 7
    Minimum Focusing Distance 19.7" / 50.0 cm
    Fixed Focus Yes
    Angle of View Ultra Wide: 150°
    Recording Media x microSD/HC Class 10
    Video Format 2880 x 2160p at 24 fps (MOV via H.264)
    1920 x 1080p at 30/60 fps (MOV via H.264)
    1280 x 720p at 60/120 fps (MOV via H.264)
    Slow Motion Mode 120 fps Recorded at 1280 x 720p
    Still Image Resolution JPEG: 12 Megapixel
    Display Type LCD
    Screen Size 2"
    Resolution 960 x 240
    Status Display No
    Shutter Speed 1/30 - 1/2000 Seconds (Video)
    Exposure Modes Modes: Auto
    Image Stabilization Digital
    Waterproof Depth Rating 98.0' / 30.0 m (Waterproof Housing)
    IP Rating IP68
    White Balance Modes Auto
    Built-In Mic Yes
    Built-In Light/Flash Light - No
    Flash - No
    Wi-Fi Yes, Wi-Fi 4 (802.11n)
    Accessory Shoe None
    Tripod Mount None
    Inputs 1 x USB Micro-B
    Outputs 1 x Micro-HDMI (Type D)
    Microphone Input No
    Headphone Jack No
    Battery Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1000 mAh
    Charging Method USB
    Power Adapter None
    Dimensions (W x H x D) 2.4 x 1.7 x 1.2" / 6.2 x 4.3 x 3.0 cm
    Weight 2.65 oz / 75 g
    Package Weight 1.155 lb
    Box Dimensions (LxWxH) 8.45 x 4.15 x 4.05"
