User Manual for Minox DTC 390 Digital Trail Camera Click to enlarge the picture
Contents of the user manual for the Minox DTC 390 Digital Trail Camera
- Product category: Trail/Wildlife Cameras Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Trail/Wildlife Cameras
|
User manual for the Minox DTC 390 Digital Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|

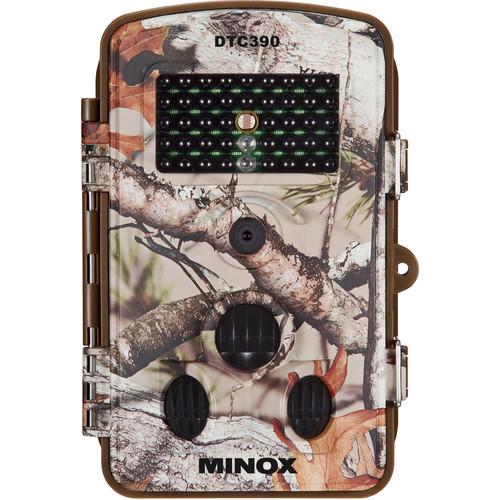

Product description Capture photos and movies of wildlife or other people without even being on-site, thanks to the splash-proof Minox DTC 390 Digital Trail Camera with a tree camo pattern. It has a 5MP image sensor and offers interpolated resolutions up to 12MP for still photos. Full HD 1080p video can be recorded at 15 fps with accompanying sound, as well. The camera features 3 passive infrared (PIR) motion sensors, which combine to provide a wide 100° detection zone for ample coverage. A 1-sec trigger speed helps ensure that shots are not missed when the sensors are triggered by subject movement.
As an alternative to motion detection, time-lapse shooting is available for capturing images at pre-set intervals, including 15-30 sec and 1-30 min. The camera's 42-LED infrared flash offers a range of over 33', and is invisible so as not to spook or alert your subjects. The DTC 390 is also equipped with a 2.4" TFT color display monitor, enabling preview and image review. Photos and videos are recorded to optional SDHC memory cards up to 32GB. This trail cam runs on 8 AA batteries or an optional external power supply connected to its 6V jack. Image transfer to your computer is accomplished via the camera's USB port. - Photo Capture
-
- 5MP image sensor
- Interpolated resolutions of 8 and 12MP
- Color images during the day and black-and-white shots at night
- Can capture 2-3 images per trigger in burst mode
- Motion Sensor
-
- Three passive infrared (PIR) sensors capture images in response to subject movement
- Sensors combine to provide a wide 100° detection zone for ample coverage
- 1-sec trigger speed helps ensure that shots are not missed
- PIR sensitivity is adjustable with low, medium, and high settings
- Medium level is recommended in most situations, though in summer, high setting is best to help differentiate between temperature of environment and that of wildlife or people you're photographing/recording
- Video Recording
-
- Full HD 1080p video recording at 15 fps with sound
- HD 720p video at 30 fps
- Clip length: 5, 10, 20, or 30 sec
- Flash
-
- Built-in, 42-LED infrared flash offers a range of over 33'
- Flash is invisible (940 nm) so as not to spook or alert your subjects
- Interval Shooting
-
- Time-lapse shooting mode captures images at pre-set intervals
- Selectable intervals are 15-30 sec and 1-30 min
- Monitor
-
- 2.4" TFT color display monitor enables preview and image review
- Data strip shows date, time, temperature, and moon phase
- By showing phase of moon, camera allows you to see which animals are inactive during full or nearly-full moon—when brighter lighting conditions make them more visible to predators
- Moon phase also helps you determine if brighter or darker backgrounds in images are due to fullness of moon
- Memory
-
- Photos and videos are recorded to optional SDHC cards up to 32 GB
- Power
-
- Runs on 8 AA batteries
- Optional external power supply can be connected to camera's 6V jack
- Connectivity
-
- USB port for image transfer to your computer
- Mounting
-
- 1/4"-20 threaded hole on bottom for connection to a tripod or tree/post mount
- Security
-
- Enter a 6-digit PIN code to prevent unauthorized access to camera
- Eyelet on side allows for use of optional padlock to prevent theft
- Durability
-
- IP54 splash-proof rating to protect camera against the elements
In the Box Minox DTC 390 Digital Trail Camera (Camo) Mounting Strap Wall Mount USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox DTC 390 Digital Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox DTC 390 Specs | Camera Type | Trail / wildlife | | | | Resolution | Native: 5.0 MP
Interpolated: 8.0 MP, 12 MP | | Sensor | 3x passive infrared (PIR) motion sensors
Coverage: 40° center, 30° left, 30° right, for total of 100°
Trigger Speed: 1.0 sec
CMOS image sensor | | File Formats | JPEG | | | | Lens | Angle of view not specified by manufacturer | | | | Sensitivity | PIR Sensor: High, medium, and low settings | | Exposure Modes | Auto | | Burst Capability | 2-3 images per trigger | | Delay | Interval Between PIR Triggers: Selectable times ranging from 2.0 sec to 60 min | | Interval Recording | Yes, time-lapse mode captures images at pre-set intervals: 15-30 sec or 1-30 min | | | | Built-in Flash | 42-LED invisible infrared flash | | Effective Flash Range | 33' / 10 m | | | | Memory Card Type | SD/SDHC cards up to 32 GB (not included) | | | | Recording Formats | AVI | | Video Recording | Yes | | Video Resolution | Full HD 1920 x 1080p at 15 fps
HD 1280 x 720p video at 30 fps
848 x 480 at 30 fps
VGA 640 x 480 at 30 fps | | Video Clip Length | 5.0, 10, 20, or 30 sec
1.0, 2.0, or 5 min | | Audio Recording | Yes, with video | | | | Display | 2.4" TFT color display monitor enabling preview and image review
Date, time, temperature, and moon phase stamped on each image | | Playback | Yes | | | | Connectivity | USB port and cable for image transfer to computer | | System & Software Requirements | Not specified by manufacturer | | | | Operating/Storage Temperature | Not specified by manufacturer | | Durability | IP54 splash-proof rating | | | | Battery Type | 8 x 1.5 V AA alkaline, lithium-ion, or NiMH cells | | Power Adapter | Port for optional 6.0 V external power supply | | | | Mounting | 1/4"-20 threaded tripod hole
Mounting strap and wall mount (included) | | Dimensions | 5.4 x 3.8 x 3.0" / 13.6 x 9.5 x 7.5 cm | | Weight | 283 g / 10 oz without batteries | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.8 x 5.6 x 2.9" |
